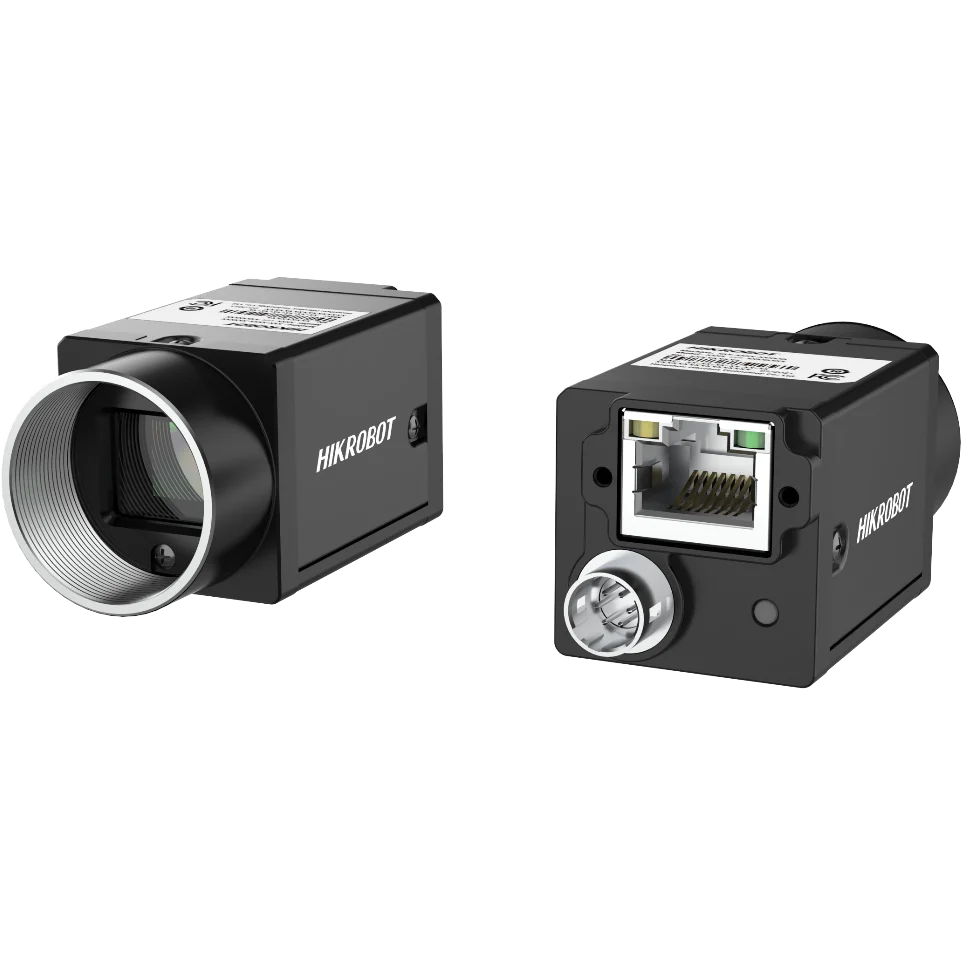

Hikrobot MV-CU020-80GM 2MP Area Scan Camera, GigE, SC235, Mono
Model MV-CU020-80GM
Hikrobot MV-CU020-80GM 2MP Area Scan Camera, GigE, SC235, Mono. Adopts low consumption design with stable performance. Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
Features
- Adopts low consumption design with stable performance.
- Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
- Supports customized ROI and supports horizontal and vertical reverse image output.
- Adopts compact design to meet small spatial requirements.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CU020-80GM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | SC235 |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.6" |
| Resolution | 1600 × 1200 |
| Max. frame rate | 53.5 fps @ 1600 × 1200 Mono 8 |
| Dynamic range | 60.4 dB |
| SNR | 40.1 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 45 μs to 1 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, PoE is optional |
| Power consumption | Typ. 1.8 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 97 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
