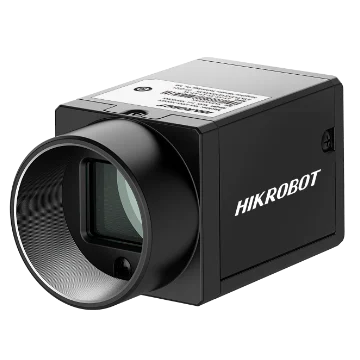

Hikrobot MV-CU013-A0GC V2 1.3MP Area Scan Camera, GigE, V2, Color

Name: Hikrobot MV-CU013-A0GC V2 1.3MP Area Scan Camera, GigE, V2, Color
Brand: Hikrobot
SKU: MV-CU013-A0GC V2

Model MV-CU013-A0GC V2

Hikrobot MV-CU013-A0GC V2 1.3MP Area Scan Camera, GigE, V2, Color. Adopts low power consumption design with stable performance. Supports auto or manual adjustment of gain, exposure time etc.

Datasheet (PDF) - MV-CU013-A0GC V2 User manual (PDF) - MV-CU013-A0GC V2 CAD: 3D STEP + 2D DXF (ZIP) - MV-CU013-A0GC V2

Features

Adopts low power consumption design with stable performance.
Supports auto or manual adjustment of gain, exposure time etc.
Supports hardware trigger, software trigger, free run, etc.
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Specifications

Model	MV-CU013-A0GC V2
Brand	Hikrobot
Sensor type	CMOS, global shutter
Pixel size	4.8 μm × 4.8 μm
Sensor size	1/2"
Resolution	1280 × 1024
Max. frame rate	90.2 fps @ 1280 × 1024 Bayer GB 8
Dynamic range	54 dB
SNR	40.6 dB
Gain	0 dB to 16 dB
Exposure time	11 μs to 10 sec
Mono/color	Color
Exposure mode	Off/Once/Continuous exposure mode
Pixel format	Bayer GB 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, PoE is optional
Power consumption	Typ. 1.8 W @ 12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 100 g (0.2 lb.)
Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.24 kg
