Area scan cameras

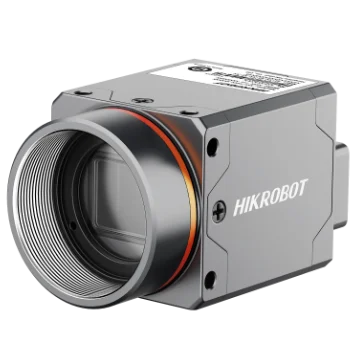

Hikrobot MV-CT250G-20AC01-MINI-C 25 MP XoCLink area scan camera, Gen 3, MINI version, Type-C port, Color
Model MV-CT250G-20AC01-MINI-C
Hikrobot MV-CT250G-20AC01-MINI-C 25 MP XoCLink area scan camera, Gen 3, MINI version, Type-C port, Color. Smaller, lighter and flexible to install, for high-speed camera motion applications Low-power design greatly reduces heat flux density at the camera for lower temperature drift
Datasheet (PDF, Chinese) - MV-CT250G-20AC01-MINI-CUser manual (PDF, Chinese) - MV-CT250G-20AC01-MINI-CCAD: 3D STEP + 2D DXF (ZIP) - MV-CT250G-20AC01-MINI-C
Features
- Smaller, lighter and flexible to install, for high-speed camera motion applications
- Low-power design greatly reduces heat flux density at the camera for lower temperature drift
- PoC: power, control and data over a single cable, up to 15 m
Specifications
| Model | MV-CT250G-20AC01-MINI-C |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX0505 |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1.1" |
| Resolution | 5120 × 5120 |
| Max. frame rate | 20 fps@5120 × 5120 Bayer BG 8 |
| Dynamic range | 63.3 dB |
| SNR | 36.7 dB |
| Gain | 2.0 x, 2.5 x, 3.0 x, 3.5 x, 4.0 x, 4.5 x, 5.0 x |
| Exposure time | 12 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8; Bayer BG 8/10/12; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | XoCLink |
| Digital I/O | 8-pin M8 connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 2 bi-directional configurable non-isolated I/O (Line 2/5) |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | 2.7 W@24 VDC |
| Lens mount | C-Mount |
| Dimension | 29 mm x 29 mm × 33 mm |
| Weight | Approx. 90 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 50 °C (–22 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
| Compatibility | GenlCam, XoCLink |
| Shipping weight (estimated) | 0.23 kg |
