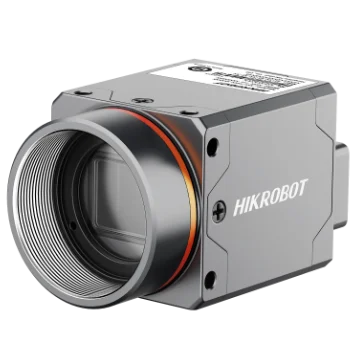

Hikrobot MV-CT3MA0200/R/C/NN 20MP Area Scan Camera, 3rd Gen., XoCLink, MINI, C-mount, mono
Model MV-CT3MA0200/R/C/NN
Hikrobot MV-CT3MA0200/R/C/NN 20MP Area Scan Camera, 3rd Gen., XoCLink, MINI, C-mount, mono. Adopts compact and lightweight design with flexible mounting options, applicable to high-speed motion scenes. Low power consumption design reduces heat flux density, resulting in low temperature drift.
Features
- Adopts compact and lightweight design with flexible mounting options, applicable to high-speed motion scenes.
- Low power consumption design reduces heat flux density, resulting in low temperature drift.
- Single-cable PoC enables power supply, control, and data transmission, with a transmission distance of up to 15 meters.
- Isolated ground design ensures enhanced immunity to interference.
Specifications
| Model | MV-CT3MA0200/R/C/NN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony IMX183 |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1" |
| Resolution | 5472 × 3648 |
| Max. frame rate | 22 fps @ 5472 × 3648 Mono 8 |
| Dynamic range | 71.7 dB |
| SNR | 41.5 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 13 μs to 0.75 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | XoCLink |
| Digital I/O | 8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 2 (Line 2/5). |
| Power supply | 9 VDC to 24 VDC, supports PoC |
| Power consumption | Typ. 1.6 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 33 mm (1.1" × 1.1" × 1.3") |
| Weight | Approx. 90 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GenlCam, XoCLink |
| Shipping weight (estimated) | 0.23 kg |
