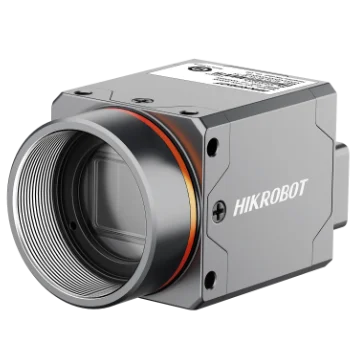

Hikrobot MV-CT120G-36AM01-MINI-C 12 MP XoCLink area scan camera, Gen 3, Mono
Model MV-CT120G-36AM01-MINI-C
Hikrobot MV-CT120G-36AM01-MINI-C 12 MP XoCLink area scan camera, Gen 3, Mono. Smaller, lighter and flexible to install, for high-speed camera motion applications Low-power design greatly reduces heat flux density at the camera for lower temperature drift
Datasheet (PDF, Chinese) - MV-CT120G-36AM01-MINI-CUser manual (PDF, Chinese) - MV-CT120G-36AM01-MINI-CCAD: 3D STEP + 2D DXF (ZIP) - MV-CT120G-36AM01-MINI-C
Features
- Smaller, lighter and flexible to install, for high-speed camera motion applications
- Low-power design greatly reduces heat flux density at the camera for lower temperature drift
- PoC: power, control and data over a single cable, up to 15 m
- Fully isolated ground for stronger interference resistance
Specifications
| Model | MV-CT120G-36AM01-MINI-C |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1.1” |
| Resolution | 4096 × 3000 |
| Max. frame rate | 36.6 fps@4096 × 3000 Mono 8 |
| Dynamic range | 61.2 dB |
| SNR | 44.1 dB |
| Gain | 0 dB ~ 24 dB |
| Exposure time | 20 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | XoCLink |
| Digital I/O | 8-pin M8 A-coded connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 2 bi-directional configurable non-isolated I/O (Line 2/5) |
| Power supply | 9 ~ 24 VDC, PoC power supported |
| Power consumption | 1.9 W@12 VDC |
| Lens mount | C-Mount |
| Dimension | 29 mm x 29 mm × 33 mm |
| Weight | Approx. 90 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | 20% RH to 95% RH (no condensation) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits |
| Compatibility | GenlCam, XoCLink |
| Shipping weight (estimated) | 0.23 kg |
