Machine vision lenses

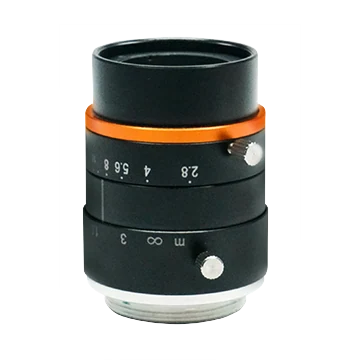

Large format (Φ37 mm) 40 mm focal length FA lens (LS-XAC-40M42)
Model LS-XAC-40M42
Large format (Φ37 mm) 40 mm focal length FA lens. Excellent sharpness uniformity across the image Large aperture, low distortion, low chromatic aberration, high relative illumination
Features
- Excellent sharpness uniformity across the image
- Large aperture, low distortion, low chromatic aberration, high relative illumination
- Maximum image circle Φ37 mm; supports APS-C-format area-scan and 4K line-scan cameras
Specifications
| Model | LS-XAC-40M42 |
|---|---|
| Focal length | 40 mm |
| F-number | F2.8 ~ F22 |
| Image size | Φ37 mm |
| Optical distortion | 0.62% |
| Magnification range | 0.22x ~ 0.04x |
| Working distance range | 200 ~ 1051 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M37 × 0.75 |
| Connector type | M42 × P1 |
| Flange back length | 12 mm |
| Dimension | Φ47.6 × 62.7 mm |
| Weight | 171 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.34 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
