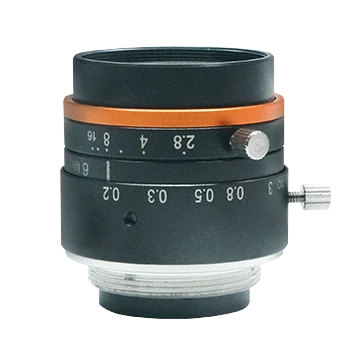

30mm, F2.8, 1/1.8", 6MP Lens, C-Mount (LS-HF3028M-6MPE)
Model LS-HF3028M-6MPE
30mm, F2.8, 1/1.8", 6MP Lens, C-Mount. Higher image clarity and contrast ratio Ultra-low distortion and higher relative illumination rate
Features
- Higher image clarity and contrast ratio
- Ultra-low distortion and higher relative illumination rate
- Good optical performance at ultra-short working distance
- Compact design, convenient for device integration
Specifications
| Model | LS-HF3028M-6MPE |
|---|---|
| Focal length | 30 mm |
| F-number | F2.8 to F16 |
| Image size | Ø9 mm (1/1.8") |
| Distortion | –0.031% |
| Minimum object distance | 0.2 m |
| Field of view | D (8.96 mm): 16.99°; H (7.38 mm): 14.01°; V (4.92 mm): 9.38° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × P0.5 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø33 mm × 29.4 mm (Ø1.3" x 1.2") |
| Weight | 49.2 g (0.1 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | ROHS 2.0 |
| Shipping weight (estimated) | 0.17 kg |
