Machine vision lenses

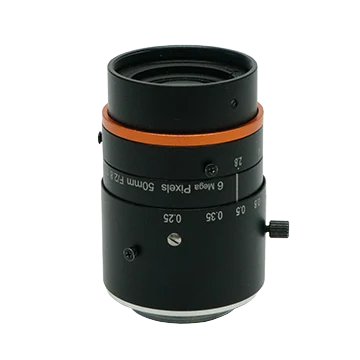

50mm, F2.8, 1/1.8", 6MP Lens, C-Mount (LS-HF5028M-6MPE)
Model LS-HF5028M-6MPE
50mm, F2.8, 1/1.8", 6MP Lens, C-Mount. High image clarity and consistency Ultra-low distortion rate
Features
- High image clarity and consistency
- Ultra-low distortion rate
- Ultra-high image peripheral brightness ratio
- Good optical performance at various object distances
Specifications
| Model | LS-HF5028M-6MPE |
|---|---|
| Focal length | 50 mm |
| F-number | F2.8 to F16 |
| Image size | Ø9 mm (1/1.8'') |
| Distortion | 0.03% |
| Minimum object distance | 0.25 m |
| Field of view | D (8.96 mm): 9.72°; H (7.38 mm): 7.84°; V (4.92 mm): 5.24° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M30.5 × 0.5 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø37 mm × 51.7 mm (Ø1.5" x 2.0") |
| Weight | 102 g (0.2 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.24 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the HF-E series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-HF0828M-6MPE | $69.00 | 5 in stock | View | |
| LS-HF1228M-6MPE | $69.00 | 4 in stock | View | |
| LS-HF1628M-6MPE | $69.00 | 2 in stock | View | |
| LS-HF2528M-6MPE | $69.00 | 2 in stock | View | |
| LS-HF3028M-6MPE | $69.00 | 2 in stock | View | |
| LS-HF4028M-6MPE | $69.00 | 3 in stock | View | |
| LS-HF0628M-6MPE | $79.00 | 2 in stock | View |
