Telecentric lenses

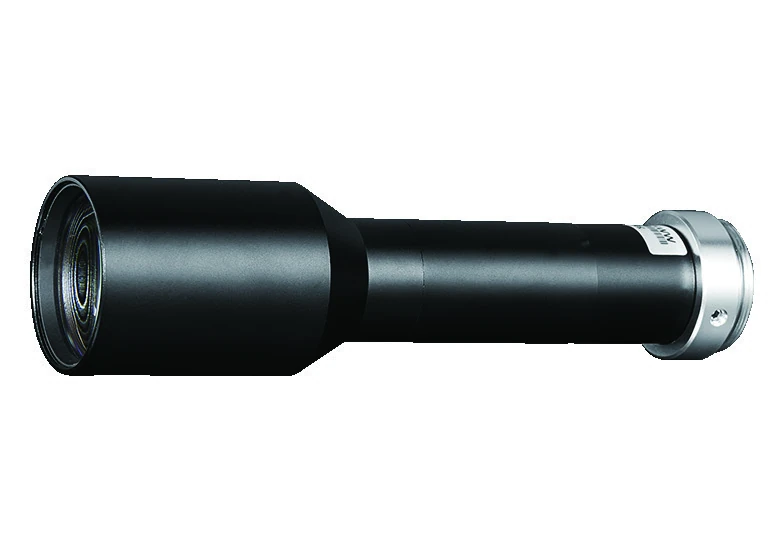

Megapixel telecentric lens (VWH), 0.7x, WD 145 mm, 2/3", C-mount (LS-VWH07-145AT)
Model LS-VWH07-145AT
Megapixel 'object side' telecentric lens with a compact design and coaxial illumination options; high contrast, low distortion and high resolution, with optional adjustable iris and long working distance versions over 500 mm.
Features
- Compact design with coaxial illumination options
- Supports all kinds of megapixel cameras
- High contrast, low distortion, high resolution
- Optional adjustable iris for resolution and DOF control
- Megapixel 'object side' telecentric lens with optional long working distance versions with over 500mm working distance
- Perfect image and supports all kinds of Mega camera
- Optional adjustable Iris for resolution and DOF control
Specifications
| Model | LS-VWH07-145AT |
|---|---|
| Mount | C |
| Magnification (x) | 0.7 |
| Working Distance (mm) | 145±2 |
| Max Sensor Size (dia. mm) | 11.0(2/3") |
| Aperture (F/#) | 16.8 |
| Telecentricity typical (max) (deg) | <0.1 |
| Distortion typical (max) (%) | <0.6 |
| MTF30(lp/mm) | 55 |
| NA | 0.0207 |
| Resolution (um) | 16.2 |
| Depth of Field (mm) | 2.7 |
| Field of view with ICX625/655 (8.47x7.10 sensor) (mm x mm) | 12.1x10.1 |
| Length (mm) | 110.4 |
| Coaxial Light | No |
| Iris | No |
| Shipping weight | 0.60 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Megapixel telecentric lens (VWH) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VWH08-65AT | 0.8x, WD 65 mm, 2/3", C-Mount | $739.00 | 5 in stock | View |
| LS-VWH08-65CT | 0.8x, WD 65 mm, 2/3", C-Mount | $739.00 | 3 in stock | View |
| LS-VWH08-130CT-G | 0.8x, WD 130 mm, 2/3", C-mount | $739.00 | 4 in stock | View |
| LS-VWH08-130CT | C-mount | Price on request | 5 in stock | View |
| LS-VWH08-130AT-G | 0.8x, WD 130 mm, 2/3", C-mount | $739.00 | 5 in stock | View |
| LS-VWH08-130AT | 0.8x, WD 130 mm, 2/3", C-mount | Price on request | 5 in stock | View |
| LS-VWH07-145-230 | 0.7x, WD 145 mm, 2/3", C-Mount | $759.00 | 5 in stock | View |
| LS-VWH07-145C-230 | 0.7x, WD 145 mm, 2/3", C-Mount | $759.00 | 4 in stock | View |
| LS-VWH07-273-230 | 0.7x, WD 273 mm, 2/3", C-Mount | $759.00 | 4 in stock | View |
| LS-VWH07-145CT-G | 0.7x, WD 145 mm, 2/3", C-mount | Price on request | 2 in stock | View |
| LS-VWH07-145CT | 0.7x, WD 145 mm, 2/3", C-mount | Price on request | 3 in stock | View |
| LS-VWH07-145AT-G | 0.7x, WD 145 mm, 2/3", C-mount | $759.00 | 4 in stock | View |
| LS-VWH05-180C-120 | 0.5x, WD 180 mm, 1/2", C-Mount | $769.00 | 2 in stock | View |
| LS-VWH05-510AT | 0.5x, WD 510 mm, 1/2", C-Mount | $779.00 | 2 in stock | View |
| LS-VWH05-510CT | 0.5x, WD 510 mm, 1/2", C-Mount | $779.00 | 5 in stock | View |
| LS-VWH05-110AT | 0.5x, WD 110 mm, 2/3", C-Mount | $849.00 | 4 in stock | View |
| LS-VWH05-110AT-G | 0.5x, WD 110 mm, 2/3", C-Mount | $849.00 | 3 in stock | View |
| LS-VWH05-110CT | 0.5x, WD 110 mm, 2/3", C-Mount | $849.00 | 3 in stock | View |
| LS-VWH05-110CT-G | 0.5x, WD 110 mm, 2/3", C-Mount | $849.00 | 3 in stock | View |
| LS-VWH05-150-230 | 0.5x, WD 150 mm, 2/3", C-Mount | $849.00 | 5 in stock | View |
| LS-VWH05-180-230 | 0.5x, WD 180 mm, 2/3", C-Mount | $849.00 | 5 in stock | View |
| LS-VWH05-65-230 | 0.5x, WD 65 mm, 2/3", C-Mount | $849.00 | 4 in stock | View |
| LS-VWH03-110AT | 0.3x, WD 110 mm, 1/1.8", C-Mount | $969.00 | 4 in stock | View |
| LS-VWH03-110CT | 0.3x, WD 110 mm, 1/1.8", C-Mount | $969.00 | 4 in stock | View |
