Telecentric lenses

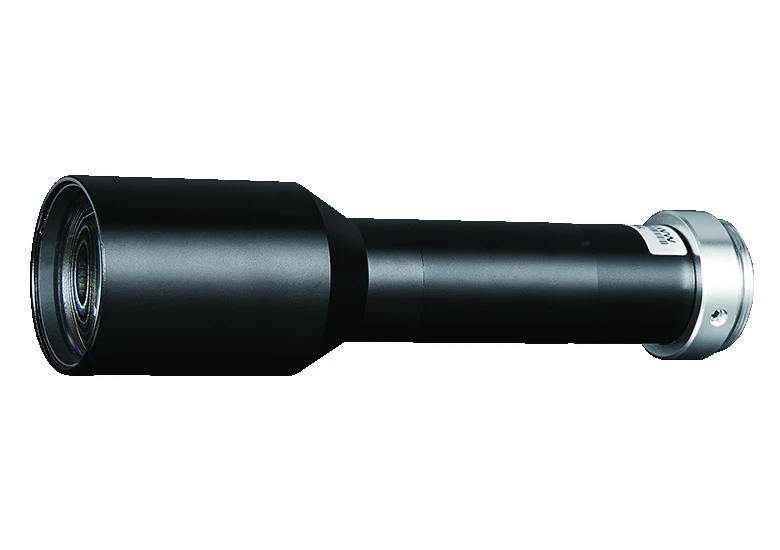

Megapixel telecentric lens (VWH), 0.5x, WD 510 mm, 1/2", C-Mount (LS-VWH05-510AT)
Model LS-VWH05-510AT
Megapixel 'object side' telecentric lens with a compact design and coaxial illumination options; high contrast, low distortion and high resolution, with optional adjustable iris and long working distance versions over 500 mm.
Features
- Compact design with coaxial illumination options
- Supports all kinds of megapixel cameras
- High contrast, low distortion, high resolution
- Optional adjustable iris for resolution and DOF control
- Megapixel 'object side' telecentric lens with optional long working distance versions with over 500mm working distance
- Perfect image and supports all kinds of Mega camera
- Optional adjustable Iris for resolution and DOF control
Specifications
| Model | LS-VWH05-510AT |
|---|---|
| Mount | C |
| Magnification(x) | 0.5 |
| Working Distance (mm) | 510±3 |
| Max Sensor Size (dia. mm) | 8.0(1/2") |
| Aperture (F/#) | 14.2 |
| Distortion typical (max) (%) | 0.3 |
| MTF30 (lp/mm) | 60 |
| NA | 0.0174 |
| Resolution (um) | 19.3 |
| Depth of Field (mm) | 4.5 |
| FOV with 6.66x5.33 with 9M001 (mm x mm) | 13.3x10.7 |
| FOV with 6.47x 4.84 with ICX267/205 (mm x mm) | 12.9x9.7 |
| Length (mm) | 163.5 |
| Coaxial Light | No |
| Iris | No |
| Mount (product parameters) | C-Mount |
| Detector | 1/2" |
| Magnification (product parameters) | 0.5x |
| WD (product parameters) | 510mm |
| Magnification (x) | 0.5 |
| MTF30(lp/mm) | 60 |
| Field of view with 9M001 (6.66x5.33 sensor) (mm x mm) | 13.3x10.7 |
| Field of view with ICX267/205 (6.47x4.84 sensor) (mm x mm) | 12.9x9.7 |
| Sensor format | 1/2" |
| Shipping weight | 0.62 kg |
