360° inspection lenses

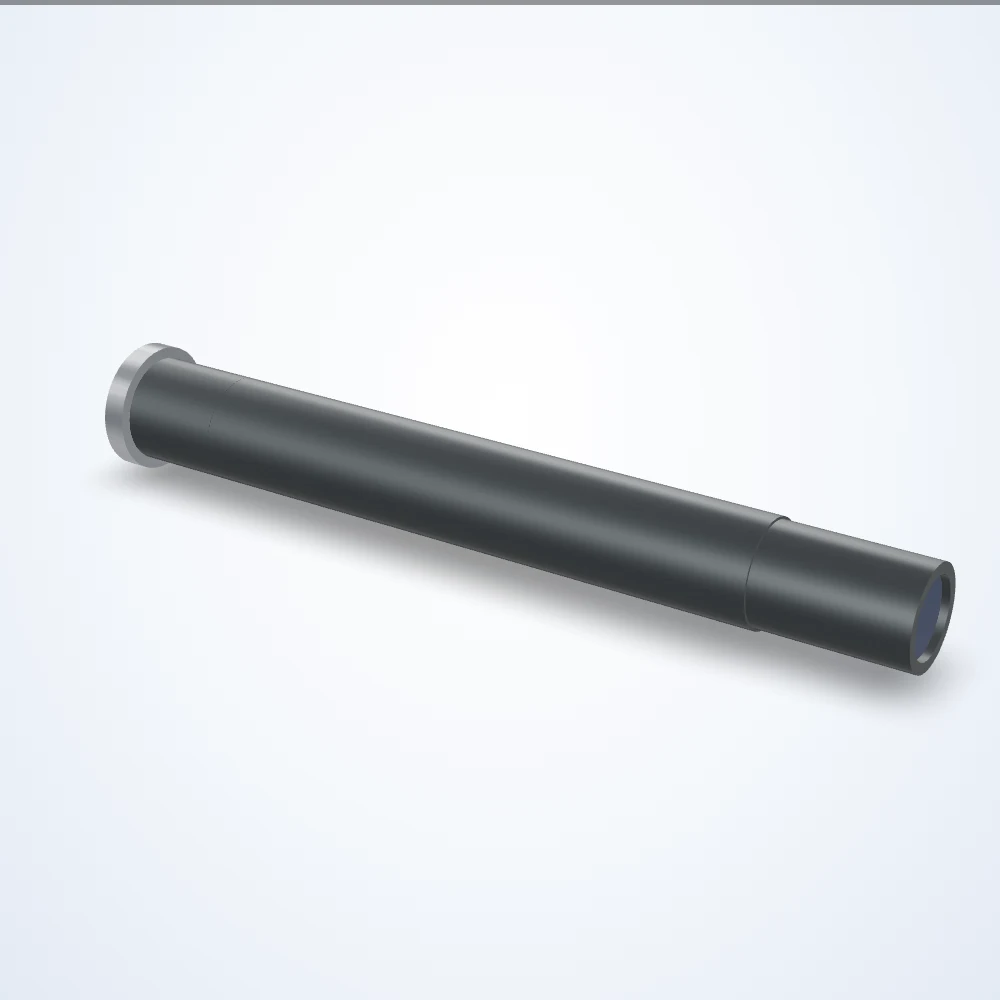

360° inspection lens, 1/3", C-mount (LS-TCL-0042)
Model LS-TCL-0042
Special inspection optics that image the sides or inner walls of a part in one shot. Connection: hirose hr10a-7r-6pb(73), light source power cable.
Specifications
| Model | LS-TCL-0042 |
|---|---|
| Mount | C-mount |
| Angle of view | 60° (35° / 25°) |
| Connector | Hirose HR10A-7R-6PB(73), light source power cable |
| Camera phase adjustment | yes |
| Clear aperture | 11 mm |
| Connector housing height from axis | 41.50 mm |
| Current range | 120 to +120 mA |
| Dimensions (dia. x length, mm) | 30 x 168.18 |
| Dimensions approximate | 168.2 x 21 x 21 mm |
| Focal power mode | Yes |
| Focus control | Liquid Lens |
| Fov maximum | ∞ |
| Fov minimum | 25 |
| Image circle | 3.4 mm |
| Installation location | Indoor Use Only |
| LED current | 40 mA |
| Lens type | Boroscopic Probe |
| Lifecycles (10%-90% sinusoidal) | >1,000,000,000 |
| Light color | White |
| Liquid lens model | liquid lens |
| Mount protrusion behind flange | 4 mm |
| Operating relative humidity (%) | 20-85 Non Condensing |
| Operating temperature range | 0 to 40°C |
| Power consumption maximum | 4 Watts |
| Probe length | 139.3 mm |
| Response time | 1 Millisecond |
| Setting time | 4 Milliseconds |
| Storage temperature range | 0 to 50°C |
| Supply voltage | 24 Volts |
| Working ƒ/n | f/14 |
| Weight ( g ) | 121 |
