Home / Lenses / 360° inspection lenses / 360° inspection lens, 2/3", C-Mount

360° inspection lens, 2/3", C-Mount (LS-TCL-0043)

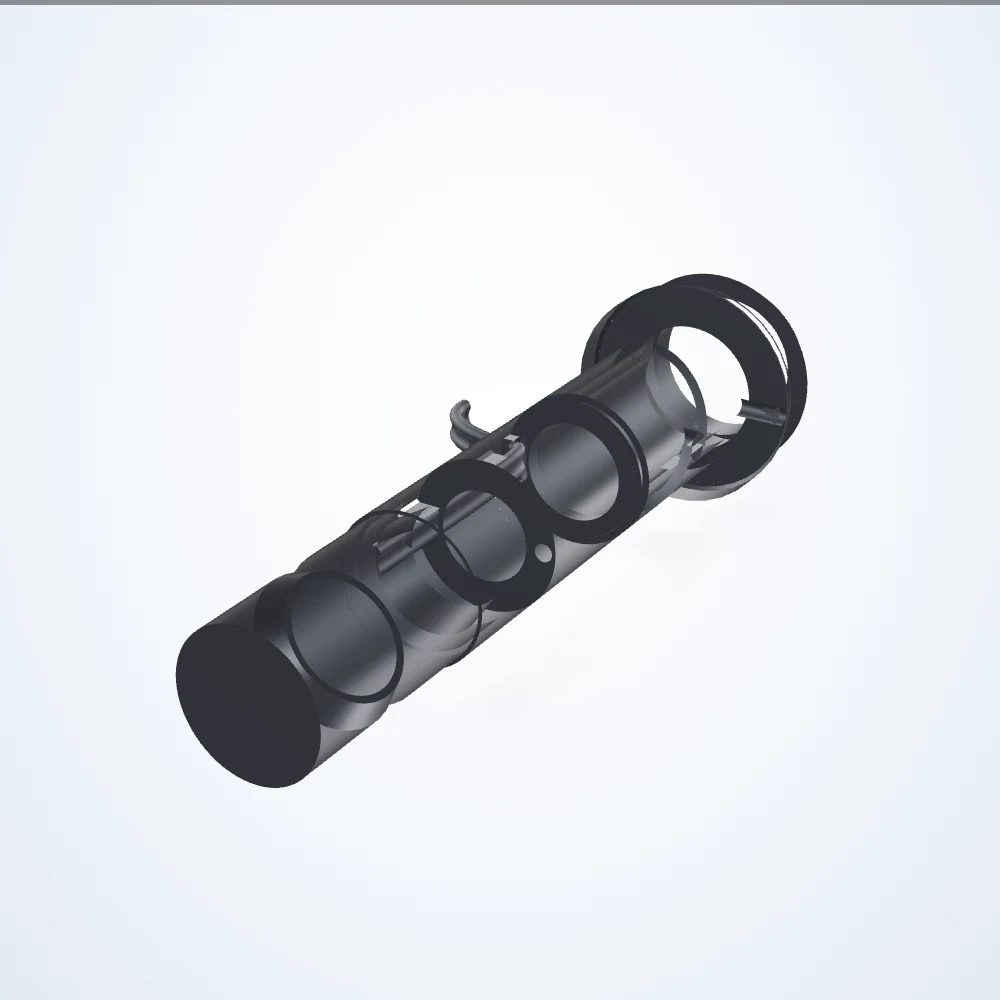

Rendered illustration: the actual product may differ in appearance.

360° inspection lenses

360° inspection lens, 2/3", C-Mount (LS-TCL-0043)

Model LS-TCL-0043

360° inspection lens, 2/3", C-Mount.

Datasheet (PDF) - LS-TCL-0043 3D model (STEP) - LS-TCL-0043

Specifications

Model	LS-TCL-0043
Filter Thread	No Filter Threads
Focus Control	Manual
Image Circle Diameter	7 mm
Imager Format	2/3"
Lens Type	Boroscopic Probe
Mount	C-Mount
Working ƒ/N	f/18

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
