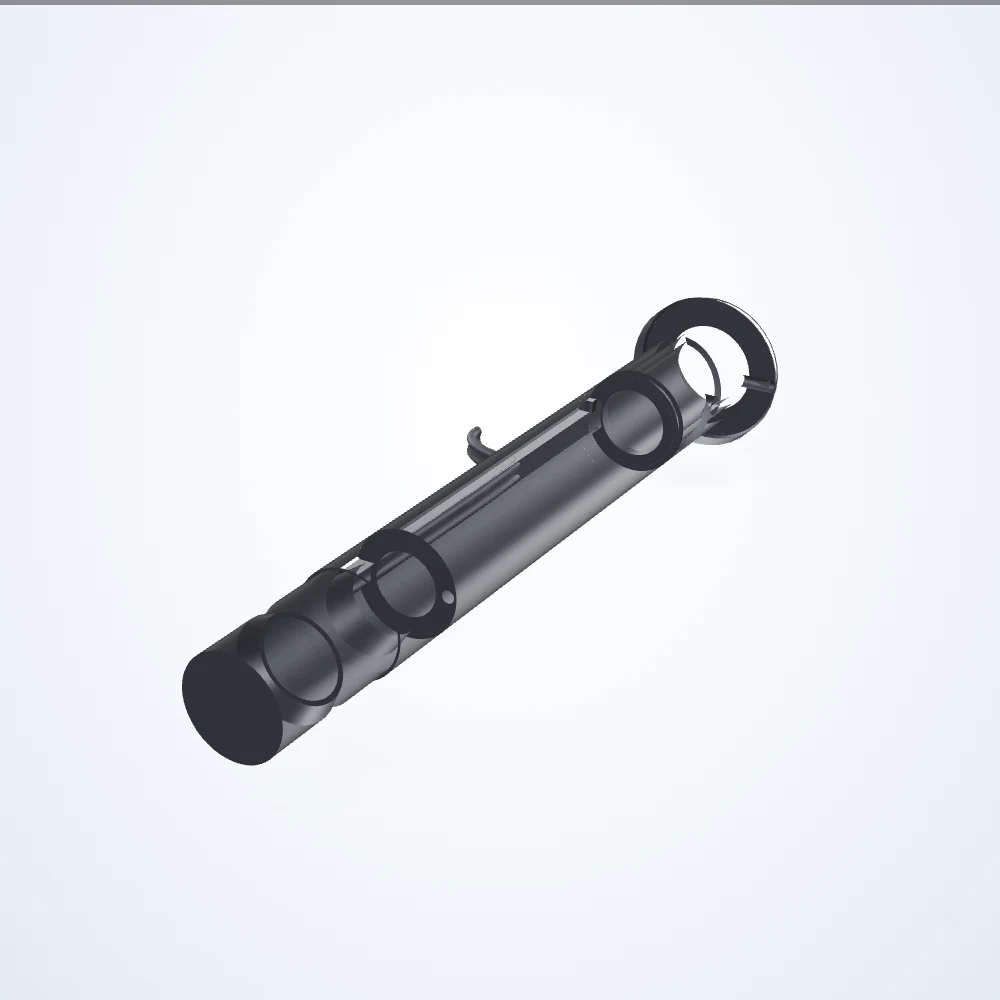

360° inspection lens, 1/3", C-mount, weight 111 Grams (LS-TCL-0041)

Rendered illustration: the actual product may differ in appearance.

360° inspection lenses

360° inspection lens, 1/3", C-mount, weight 111 Grams (LS-TCL-0041)

Model LS-TCL-0041

Special inspection optics that image the sides or inner walls of a part in one shot.

Datasheet (PDF) - LS-TCL-0041 3D model (STEP) - LS-TCL-0041

Specifications

Model	LS-TCL-0041
Sensor format	1/3"
Mount	C-mount
Aov	60 °
Dimensions approximate	167.1 x 21 x 21 mm
Filter thread	No Filter Threads
Focus control	Manual
Fov maximum	∞
Fov minimum	25
Image circle	3.4 mm
Installation location	Indoor Use Only
LED current	40 mA
Lens type	Boroscopic Probe
Light color	White
Operating relative humidity (%)	20-85 Non Condensing
Operating temperature range	0 to 40°C
Power consumption maximum	4 Watts
Probe length	159.1 mm
Storage temperature range	0 to 50°C
Supply voltage	24 Volts
Working ƒ/n	f/14
Weight	111 Grams

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the 360° inspection lens series, C-mount (S03) series

Model	Size	Price	Availability	Link
LS-TCL-0039		Price on request	5 in stock	View
LS-TCL-0040		Price on request	5 in stock	View
LS-TCL-0042		Price on request	4 in stock	View
LS-TCL-0043		Price on request	3 in stock	View
LS-TCL-0044		Price on request	3 in stock	View
LS-TCL-0045		Price on request	2 in stock	View
LS-TCL-0046		Price on request	4 in stock	View
