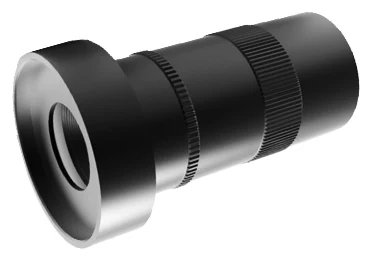

47.6-50.3 mm, C-mount UV Lens (LS-SUV110C)
Model LS-SUV110C
47.6-50.3 mm, C-mount UV Lens. 47.6-50.3 mm, image circle dia. 20 mm lens with a 250-380 nm working band for security surveillance and forest fire protection (the page text calls it a thermal lens; it sits in the supplier's UV Lenses category). At a glance: working distance 160 mm to 10 m; focal length 47.6-50.3 mm; image format / field image circle dia. 20 mm; aperture F5.6; mount C mount.
Specifications
| Model | LS-SUV110C |
|---|---|
| Focal length | 47.6-50.3 mm |
| Aperture | F5.6 |
| Image format / field | image circle dia. 20 mm |
| Wavelength | 250-380 nm |
| Working distance | 160 mm to 10 m |
| Distortion | ≤2% |
| MTF | 150 lp/mm > 0.3 |
| Mount | C mount |
| Iris control | Manual |
| Focus control | Manual |
| Operating temperature | 40 to 60 °C |
| Size (from drawing) | dia. 58 (front) / dia. 43 (rear) x 111 mm |
| Filter thread (from drawing) | M55 x 0.75 |
| Shipping weight (estimated) | 0.45 kg |
Applications
- Security surveillance
- Forest fire protection
