Thermal, SWIR & UV lenses

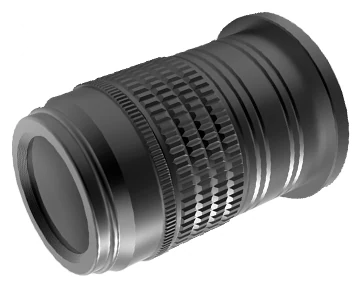

60 mm, 2", EF/C-mount UV Lens (LS-SUV004)
Model LS-SUV004
60 mm, 2", EF/C-mount UV Lens. 60 mm, 2" image size lens with a 250-380 nm working band for security surveillance and forest fire protection (the page text calls it a thermal lens; it sits in the supplier's UV Lenses category). At a glance: working distance 100 mm to 10 m; focal length 60 mm; image format / field 2" image size; aperture F3.8; mount Canon EF or C mount.
Specifications
| Model | LS-SUV004 |
|---|---|
| Focal length | 60 mm |
| Aperture | F3.8 |
| Image format / field | 2" image size |
| Wavelength | 250-380 nm |
| Working distance | 100 mm to 10 m |
| Distortion | ≤2% |
| MTF | 70 lp/mm > 0.3 |
| Mount | Canon EF or C mount |
| Iris control | Manual |
| Focus control | Manual |
| Operating temperature | 40 to 60 °C |
| Size (from drawing) | dia. 60 (front) / dia. 67 (flange) x 97.3 mm |
| Shipping weight (estimated) | 0.45 kg |
Applications
- Security surveillance
- Forest fire protection
