Thermal, SWIR & UV lenses

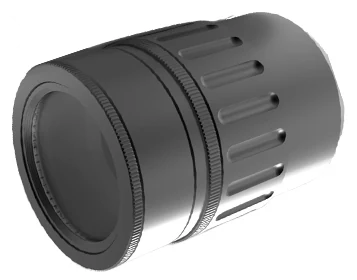

100 mm, F/C-mount UV Lens (LS-SUV003)
Model LS-SUV003
100 mm, F/C-mount UV Lens. 100 mm, image circle dia. 18 mm lens with a 250-380 nm working band for security surveillance and forest fire protection (the page text calls it a thermal lens; it sits in the supplier's UV Lenses category). At a glance: working distance 300 mm to 10 m; focal length 100 mm; image format / field image circle dia. 18 mm; aperture F2; mount Nikon F or C mount.
Specifications
| Model | LS-SUV003 |
|---|---|
| Focal length | 100 mm |
| Aperture | F2 |
| Image format / field | image circle dia. 18 mm |
| Wavelength | 250-380 nm |
| Working distance | 300 mm to 10 m |
| Distortion | ≤2% |
| MTF | 60 lp/mm > 0.3 |
| Mount | Nikon F or C mount |
| Iris control | Manual |
| Focus control | Manual |
| Operating temperature | 40 to 60 °C |
| Size (from drawing) | dia. 66 x 97.6 mm |
| Focus travel (from drawing) | 55 mm (focus cam) |
| Shipping weight (estimated) | 0.45 kg |
Applications
- Security surveillance
- Forest fire protection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the UV lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-SUV920-5M | 9.2 mm, 5 MP, C-mount | $309.00 | 2 in stock | View |
| LS-SUV132C | 12 mm, 1/3", EF/C-mount | $319.00 | 5 in stock | View |
| LS-SUV008 | 35-39 mm, EF/C-mount | $419.00 | 4 in stock | View |
| LS-SUV110C | 47.6-50.3 mm, C-mount | $479.00 | 3 in stock | View |
| LS-SUV004 | 60 mm, 2", EF/C-mount | $529.00 | 2 in stock | View |
| LS-SUV108C | 80 mm, EF/C-mount | $619.00 | 3 in stock | View |
| LS-SUV80640 | 80-640 mm, EF/C-mount | $619.00 | 3 in stock | View |
