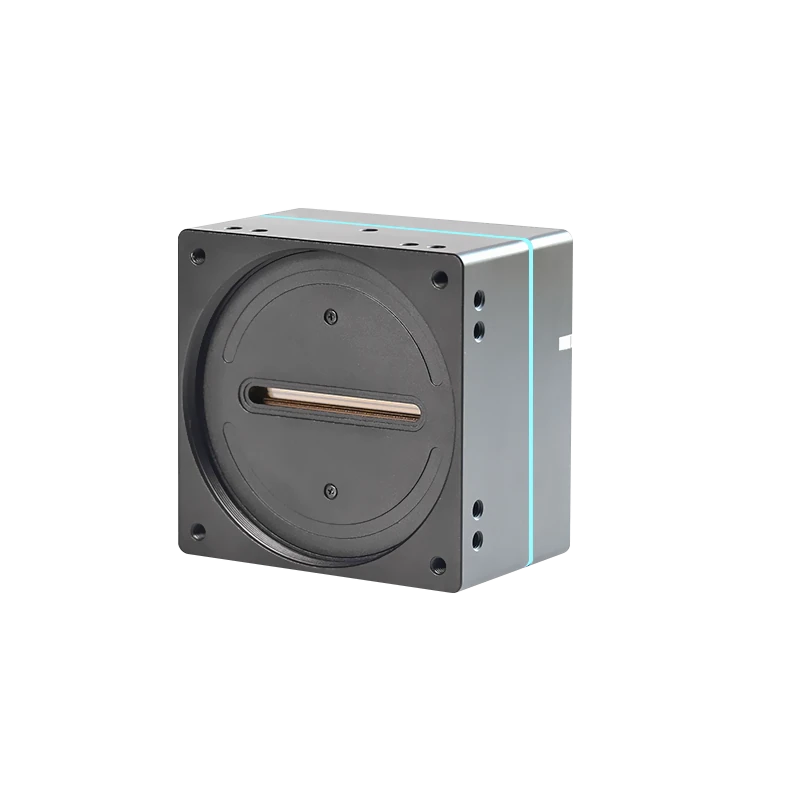

Line scan camera (V-generation), 8K, 10GigE, Mono (LS-MV-L168M-20G-V1)
Model LS-MV-L168M-20G-V1
This 2K line scan cameras adopts GigE interface and with a maximum line frequency of 120K.
Features
- 7um-sized pixel.
- Flat-field supports writing and storing multiple sets of camera parameters.
- Built-in large-capacity frame buffer, safe and reliable verification and repair technology to ensure transmission.
- Software is compatible with GigEVision and GenlCam protocols.
Specifications
| Model | LS-MV-L168M-20G-V1 |
|---|---|
| Resolution | 8192*8 |
| Sensor | 16K |
| Pixel size | 5.0μm |
| Line frequency | 150k |
| Data Interface | 20GigE |
| Lens Mount | M72 |
| Color/Mono | Mono |
| Color | Mono |
| Target size | 40.96mm |
| Shutter | Global |
| Resolution (product page) | 8192×8 |
| Imaging mode | 1line/8-TDI |
| Dynamic range | 63.5dB |
| Exposure Time | 1.64us-40ms, 0.1us step |
| Exposure Mode | Support manual exposure/single exposure/automatic exposure/pulse width control exposure |
| Gain | Analog 1X-2X,1x step, digital 1X-16X,0.1x step |
| Pixel format | Mono8/Mono12Packed |
| Trigger Mode | Row triggered, frame triggered, row + frame triggered |
| Data Interface (product page) | 20G dual fiber port (own protocol) |
| I/O Interface | 1 channel frame signal input 2 line signal input 4 single-ended outputs, configurable as 2 differential outputs 3 universal inputs (1 differential input and 2 single-ended input), multiplexed with output |
| Power supply | DC12V-24V (±10%) (24V power supply when IO line > 5M) |
| Typical Power Consumption | 8W@24VDC |
| Lens Interface | M72*0.75, flange rear focal 12mm, can be transferred to F port, C port and other threaded port lens through the adapter ring |
| IO and Power Interface | 12 core industrial circular connector |
| Filter | Full-band anti-reflection film |
| Dimension | 76mm×76mm×60.7mm |
| Weight | Approx.475g |
| IP Protection Rating | IP40(with lens and cable properly installed) |
| Temperature | Operating temperature:10℃~50℃, Storage temperature:-20℃ ~ 70℃ |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Software | SDK development kit, and related demonstration/calibration software BasedCam3 |
| Operating Systems | Windows 7/10 32/64bit; PC Linux 32/64bit |
| Protocols/Standards | GenICam |
| Compatible Software | No support for third-party software |
| Certifications | CE,RoHS |
| Mono / colour | Mono |
| Voltage | DC12V-24V (±10%) (24V power supply when IO line > 5M) |
