Line scan cameras

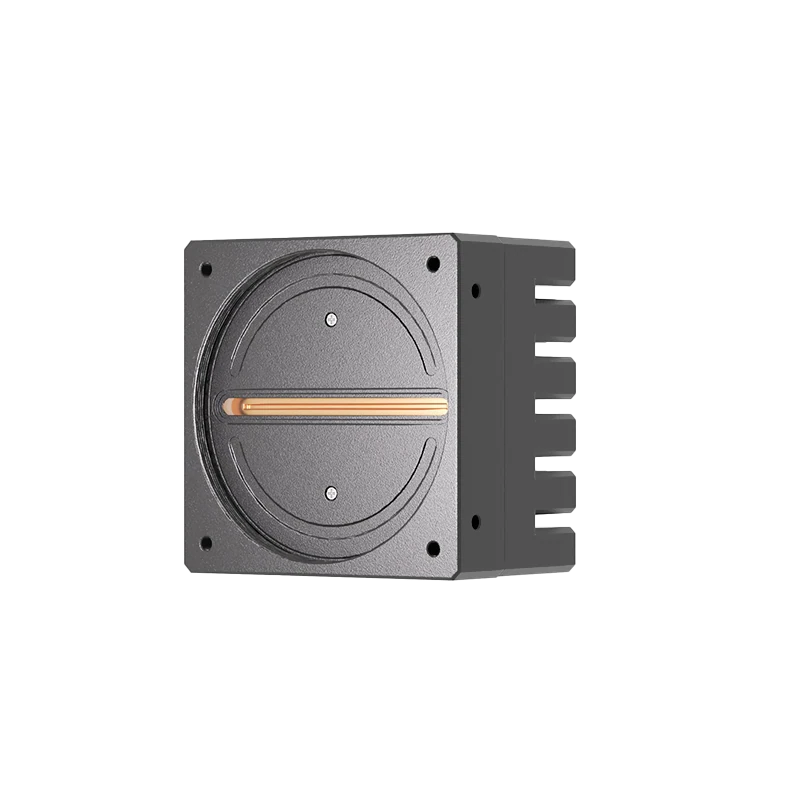

Line scan camera (V-generation), 8K, 10GigE, Mono (LS-MV-L081M20-10GF-V2)
Model LS-MV-L081M20-10GF-V2
This 2K line scan cameras adopts GigE interface and with a maximum line frequency of 120K.
Features
- 7um-sized pixel.
- Flat-field supports writing and storing multiple sets of camera parameters.
- Built-in large-capacity frame buffer, safe and reliable verification and repair technology to ensure transmission.
- Software is compatible with GigEVision and GenlCam protocols.
Specifications
| Model | LS-MV-L081M20-10GF-V2 |
|---|---|
| Resolution | 8192*1 |
| Sensor | 8K |
| Pixel size | 7um |
| Line frequency | 200K |
| Data Interface | 10GigE |
| Lens Mount | M72 |
| Color/Mono | Mono |
| Color | Mono |
| Target size | 57.34mm |
| Shutter | Global |
| Resolution (product page) | 8192×1 |
| Imaging mode | 1 line |
| Dynamic range | 63.3dB |
| Exposure Time | 5us-40ms, 1us adjustable step |
| Exposure Mode | Support manual exposure/single exposure/automatic exposure/pulse width control exposure |
| Gain | 1x-9x |
| Pixel format | Mono8/Mono8u/Mono12Packed |
| Trigger Mode | Row triggered, frame triggered, row + frame triggered |
| Data Interface (product page) | 10G optical port(using SPF+) |
| I/O Interface | 1 frame signal input(opto-coupler isolated),2 line signal inputs (AB phase),4 outputs(not opto-coupler isolated) |
| Power supply | DC12V-24V(±10%) |
| Typical Power Consumption | 8W@DC24V(Typical value of maximum continuous line frequency) |
| Lens Interface | M72*0.75, flange back focus 12mm, can be adapted to F-port, C-port and other threaded lenses by adapter ring |
| IO and Power Interface | 12 core industrial circular connector |
| Filter | Full Band Transparency Enhancer |
| Dimension | 78mm x 78mm x 58mm (without lens connector) |
| Weight | Approx.550g |
| IP Protection Rating | IP30 (with lens and cable properly installed) |
| Temperature | Operating temperature:10℃~45℃, Storage temperature:-20℃ ~ 70℃ |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Software | SDK development kit, and related demonstration/calibration software BasedCam2 |
| Operating Systems | Windows 7/10 64bits, PC Linux 64bits, ARM Linux |
| Protocols/Standards | Self-developed protocol, GenICam |
| Compatible Software | LabView, Halcon |
| Certifications | CE,RoHS |
| Mono / colour | Mono |
| Voltage | DC12V-24V(±10%) |
