Line scan cameras

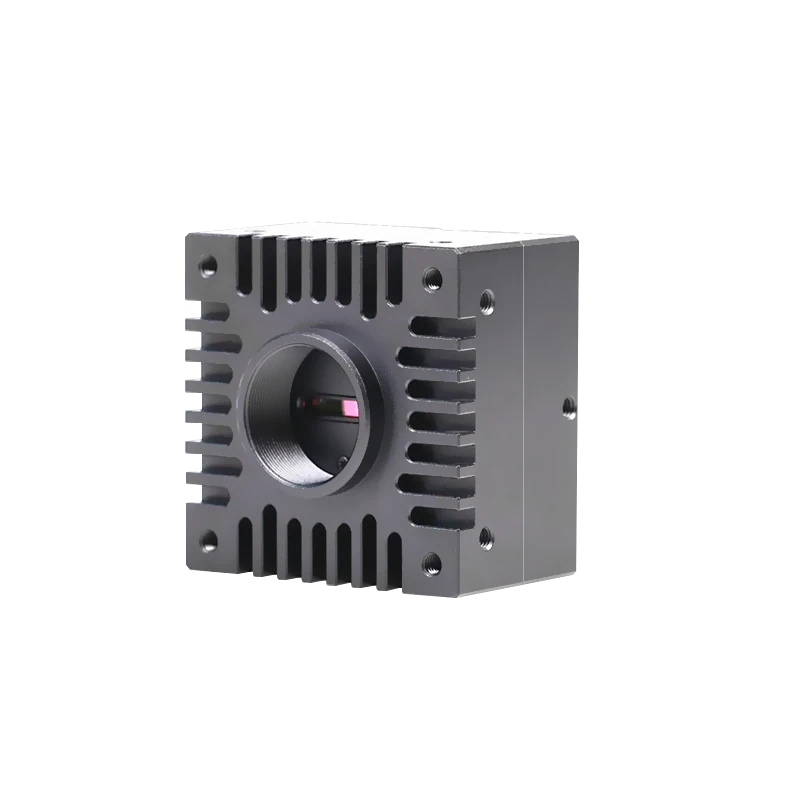

Line scan camera (V-generation), 2K, 10GigE, Color (LS-MV-L023C-GF-V2)
Model LS-MV-L023C-GF-V2
This 2K line scan cameras adopts GigE interface and with a maximum line frequency of 120K.
Features
- 7um-sized pixel.
- Flat-field supports writing and storing multiple sets of camera parameters.
- Built-in large-capacity frame buffer, safe and reliable verification and repair technology to ensure transmission.
- Software is compatible with GigEVision and GenlCam protocols.
Specifications
| Model | LS-MV-L023C-GF-V2 |
|---|---|
| Resolution | 2048*3 |
| Sensor | 2K |
| Pixel size | 7um |
| Line frequency | 19k/55K |
| Data Interface | GigE |
| Lens Mount | C |
| Color/Mono | Color |
| Color | Color |
| Target size | 14.336mm |
| Shutter | Global |
| Resolution (product page) | 2048×3 |
| Imaging mode | 3 line |
| Dynamic range | 65dB |
| Exposure Time | 4.3us - 40ms, 1us adjustable step |
| Exposure Mode | Support manual exposure/single exposure/automatic exposure/pulse width control exposure |
| Gain | 1x-16x, 0.125x adjustable step |
| Pixel format | RGB24BGR24 |
| Trigger Mode | Row triggered, frame triggered, row + frame triggered |
| I/O Interface | 11 channel frame signal input (optically coupled isolation),2 channels row signal input (AB phase), 4 channels output (non-optically coupled isolation) |
| Power supply | DC 12V~24V (±10%) |
| Typical Power Consumption | 3W@12VDC |
| Lens Interface | C,Flange rear focal 17.5mm |
| IO and Power Interface | 12 core industrial circular connector |
| Filter | 380nm-650nm bandpass filter |
| Dimension | 62mm×62mm×37.4mm(lens connector not included) |
| Weight | Approx.263.5g |
| IP Protection Rating | IP40 (with lens and cable properly installed) |
| Temperature | Operating temperature:10℃~50℃, Storage temperature:-20℃ ~ 70℃ |
| Humidity | 5% ~ 90%RH (non-condensing) |
| Software | SDK development kit, and related demonstration/calibration software BasedCam3 |
| Operating Systems | Windows 7/10 32/64bit ;PC Linux 32/64bit |
| Protocols/Standards | GigEVision, GenICam |
| Compatible Software | LabView, Halcon |
| Certifications | CE,RoHS |
| Mono / colour | Color |
| Voltage | DC 12V~24V (±10%) |
