Lighting accessories

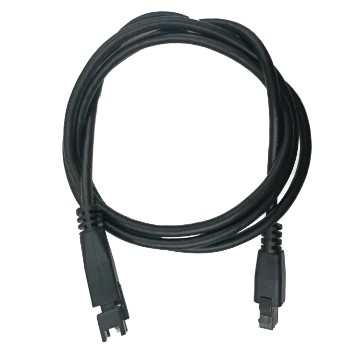

Light Cable, SMR-03V-BC to SMR-03V-B, 3 m (LS-LW-003-1-S)
Model LS-LW-003-1-S
Light Cable, SMR-03V-BC to SMR-03V-B, 3 m. Multiple lengths for mounting lights at different distances Multiple light connectors to match all common light interface types
Features
- Multiple lengths for mounting lights at different distances
- Multiple light connectors to match all common light interface types
Specifications
| Model | LS-LW-003-1-S |
|---|---|
| Channel | 1 |
| End A connector | SMR-03V-BC |
| End B connector | SMR-03V-B |
| Length | 3 m |
| Cable diameter | φ4 mm |
| Cable jacket | TPU |
| Max. ±90° bending cycles | 2 million times |
| Min. bending radius | 48 mm |
| Connector durability | 2×10, 000 cycles |
| Flame resistance rating | 3 A |
| Insulation | ≥ 10 MΩ |
| Withstand voltage capability | 300 |
| Temperature | Operating temp.: -20 to 40 °C, Storage temp.: -20 to 60 °C |
| Humidity | 20% ~ 85%RH |
| Ingress protection | IP30 (when properly installed) |
| Certification | RoHS |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Light extension cables series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-LW-H-001-1-19M8A | 1 m | $39.00 | 3 in stock | View |
| LS-LW-H-003-1-19M8A | 3 m | $39.00 | 2 in stock | View |
| LS-LW-H-005-1-19M8A | 5 m | $39.00 | 2 in stock | View |
| LS-LW-H-001-1-S | 1 m | $39.00 | 2 in stock | View |
| LS-LW-H-003-1-S | 3 m | $39.00 | 2 in stock | View |
| LS-LW-H-005-1-S | 5 m | $39.00 | 2 in stock | View |
| LS-LW-H-007-1-S | 7 m | $39.00 | 4 in stock | View |
| LS-LW-005-1-B | 5 m | $39.00 | 4 in stock | View |
| LS-LW-005-1-K | 5 m | $39.00 | 5 in stock | View |
| LS-LW-003-2-S | 3 m | $39.00 | 5 in stock | View |
| LS-LW-001-1-S | 1 m | $39.00 | 2 in stock | View |
| LS-LW-005-1-S | 5 m | $39.00 | 5 in stock | View |
| LS-LW-005-1-G | 5 m | $39.00 | 2 in stock | View |
| LS-LW-005-1-B19 | 5 m | $39.00 | 2 in stock | View |
| LS-LW-H-010-1-19M8A | 10 m | $49.00 | 3 in stock | View |
| LS-LW-H-010-1-S | 10 m | $49.00 | 5 in stock | View |
| LS-LW-010-1-S | 10 m | $49.00 | 2 in stock | View |
| LS-LW-H-015-1-19M8A | 15 m | $59.00 | 2 in stock | View |
| LS-LW-H-015-1-S | 15 m | $59.00 | 2 in stock | View |
| LS-LW-015-1-K | 15 m | $59.00 | 2 in stock | View |
| LS-LW-015-1-S | 15 m | $59.00 | 4 in stock | View |
| LS-LW-015-1-B19 | 15 m | $59.00 | 4 in stock | View |
| LS-LW-015-1-G | 15 m | $59.00 | 2 in stock | View |
| LS-LW-H-020-1-S | 20 m | $69.00 | 5 in stock | View |
