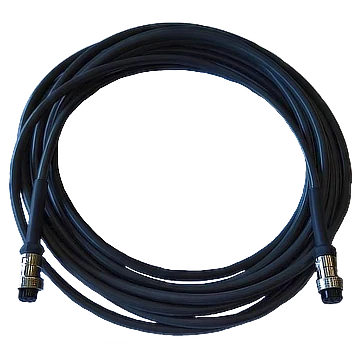

Light Cable, 19M-8A to 19M-8A, 5 m (LS-LW-H-005-1-19M8A)
Model LS-LW-H-005-1-19M8A
Light Cable, 19M-8A to 19M-8A, 5 m. Provides high-quality cable(s) for drag chain use scenarios. Various lengths can be selected to meet the installation mode of different distances of the light sources (it should be noted that there is a certain voltage drop under a long distance).
Features
- Provides high-quality cable(s) for drag chain use scenarios.
- Various lengths can be selected to meet the installation mode of different distances of the light sources (it should be noted that there is a certain voltage drop under a long distance).
Specifications
| Model | LS-LW-H-005-1-19M8A |
|---|---|
| Channel | 1 |
| End A connector | 19M-8A |
| End B connector | 19M-8A |
| Length | 5 m |
| Cable diameter | Φ8.75 mm |
| Cable jacket | PVC |
| Max. ±90° bending cycles | 2 million times |
| Min. bending radius | Cable: 105 mm; Cable plus connector tail: 130 mm |
| Connector durability | 500 times |
| Flame resistance rating | VW-1 |
| Insulation | ≥ 10 MΩ/KM |
| Withstand voltage capability | 300 V |
| Temperature | Working temperature: 0 °C to 80 °C (32 °F to 176 °F); Storage temperature: –20 °C to 80 °C (–4 °F to 176 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Ingress protection | IP55 (under correct installation) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Light extension cables series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-LW-H-001-1-19M8A | 1 m | $39.00 | 3 in stock | View |
| LS-LW-H-003-1-19M8A | 3 m | $39.00 | 2 in stock | View |
| LS-LW-H-010-1-19M8A | 10 m | $39.00 | 3 in stock | View |
| LS-LW-H-015-1-19M8A | 15 m | $39.00 | 2 in stock | View |
| LS-LW-H-001-1-S | 1 m | $39.00 | 2 in stock | View |
| LS-LW-H-003-1-S | 3 m | $39.00 | 2 in stock | View |
| LS-LW-H-005-1-S | 5 m | $39.00 | 2 in stock | View |
| LS-LW-H-007-1-S | 7 m | $39.00 | 4 in stock | View |
| LS-LW-H-010-1-S | 10 m | $39.00 | 5 in stock | View |
| LS-LW-H-015-1-S | 15 m | $39.00 | 2 in stock | View |
| LS-LW-H-020-1-S | 20 m | $39.00 | 5 in stock | View |
| LS-LW-H-030-1-S | 30 m | $39.00 | 2 in stock | View |
