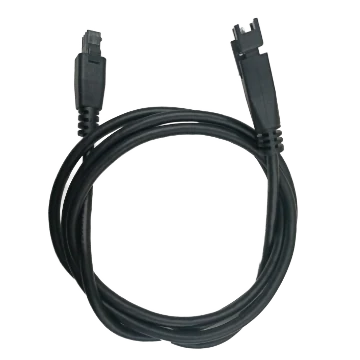

Light Cable, SMR-03V-B to SMR-03V-BC, 3 m (LS-LW-H-003-1-S)
Model LS-LW-H-003-1-S
Light Cable, SMR-03V-B to SMR-03V-BC, 3 m. Provides various connector types for various machine vision light source interfaces. Various lengths can be selected to meet the installation mode of different distances of the light sources (it should be noted that there is a risk of voltage drop under 30 m distance).
Features
- Provides various connector types for various machine vision light source interfaces.
- Various lengths can be selected to meet the installation mode of different distances of the light sources (it should be noted that there is a risk of voltage drop under 30 m distance).
Specifications
| Model | LS-LW-H-003-1-S |
|---|---|
| Channel | 1 |
| End A connector | SMR-03V-B |
| End B connector | SMR-03V-BC |
| Length | 3 m |
| Cable diameter | Φ5 mm |
| Cable mechanical | 24AWG*3C |
| Cable jacket | PVC |
| Max. U-type bending cycles | 5 million times |
| Min. bending radius | 60 mm |
| Connector durability | 2000 times |
| Flame resistance rating | VW-1 |
| Insulation | ≥ 20 MΩ/KM |
| Withstand voltage capability | 30 V |
| Temperature | Working temperature: 0 °C to 80 °C (32 °F to 176 °F); Storage temperature: –20 °C to 80 °C (–4 °F to 176 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Ingress protection | IP55 (under correct installation) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.31 kg |
