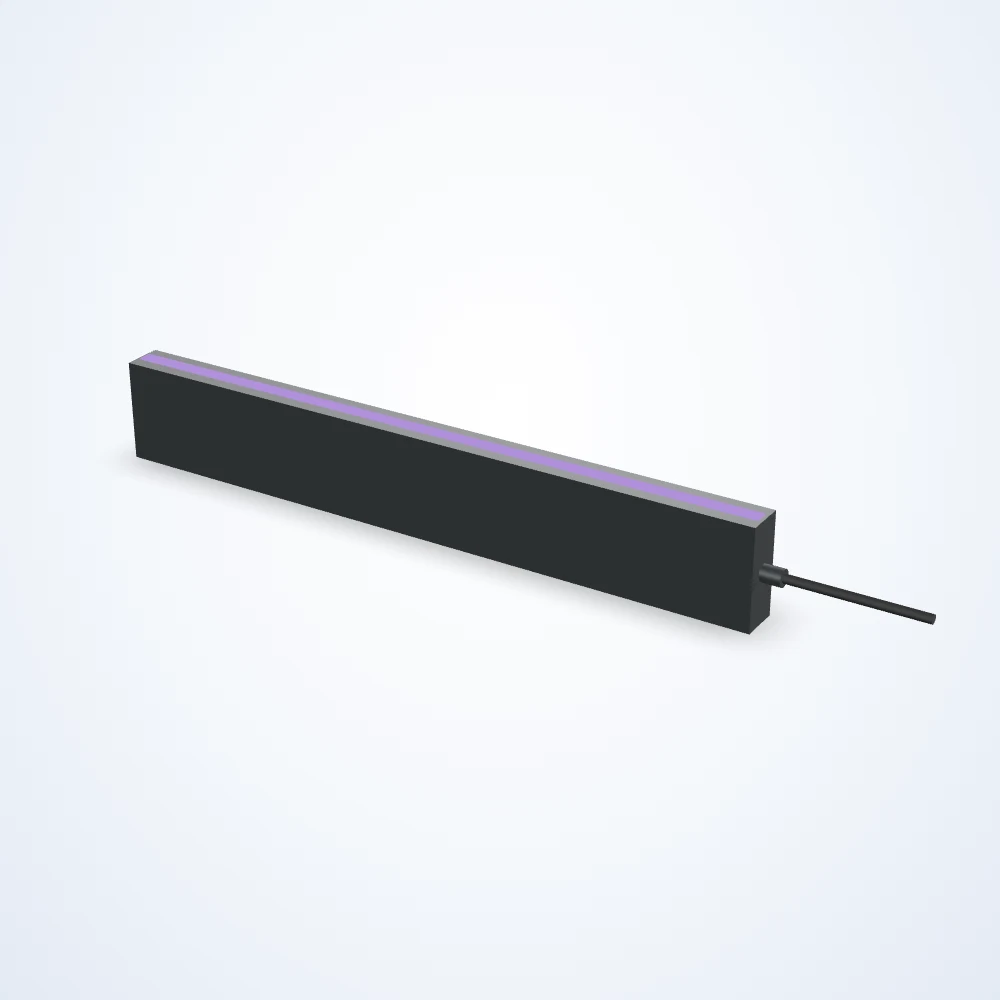

405.89 x 23.8 mm line scan light (LS-LSC-0017-L7)

Name: 405.89 x 23.8 mm line scan light (LS-LSC-0017-L7)
Brand: LumaSpec Vision
SKU: LS-LSC-0017-L7

Model LS-LSC-0017-L7

405.89 x 23.8 mm line scan light. Lit area 401.63 x 19.05 mm. Connection: Flying Leads. Available in 112 configurations (collimated, color, driver included, driver location); choose one below and request a quote.

Price on request

Ships in 2-3 weeks

CollimatedColorDriver IncludedDriver LocationDriver NomenclatureHeight (mm)Intensity Adjustment TypeLens AngleMaximum Constant On Current (mA)Maximum Current (Overcurrent Strobe) (mA)Maximum Input Power Constant On (W)Maximum Input Power Overcurrent Strobe (W)Maximum Overcurrent Strobe Frequency (Hz)Maximum Overcurrent Strobe Latency (us)Minimum Overcurrent Strobe Duration (us)NPN Trigger Voltage (V)Operation ModesPNP Trigger Current (mA)PNP Trigger Voltage (V)Strobe Trigger Input

Configuration LS-LSC-0017-0169 of 112

Build a system with this light → Matching lens, light, controller and cables, checked for fit

Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
90-day returnsUnused items; free return label in the US · Returns policy
Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
Questions about fit?Contact us; we reply within one business day

Datasheet (PDF) - LS-LSC-0017-L7

Specifications

Model	LS-LSC-0017-L7
Active Length (mm)	401.63
Active Width (mm)	19.05
Cable Length (mm)	2000
Compliances	CE, IEC 62471, RoHS
Connector Type	Flying Leads
Connectorized At Light	Hardwired
Daisy Chain	No
Direct Connect	No
Housing Material	Aluminum
IP Rating	IP50
Length (mm)	405.89
Maximum Duty Cycle (%)	100
Maximum Operating Temperature (C)	60
Maximum Operating Temperature (F)	140
Minimum Operating Temperature (F)	32
Mounting Method	T-Slot Channel
Polarized	Not Polarized
Product Weight (Kg)	0.3
Product Weight (Lbs)	0.66
Voltage	24 VDC
Width (mm)	23.8

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the 405.89 x 23.8 mm line scan light series

Model	Price	Availability	Link
LS-LSC-0017-L1	Price on request	379 in stock	View
LS-LSC-0017-L2	Price on request	389 in stock	View
LS-LSC-0017-L3	Price on request	395 in stock	View
LS-LSC-0017-L4	Price on request	390 in stock	View
LS-LSC-0017-L5	Price on request	382 in stock	View
LS-LSC-0017-L6	Price on request	402 in stock	View
LS-LSC-0017-L8	Price on request	404 in stock	View
LS-LSC-0017-L9	Price on request	390 in stock	View
LS-LSC-0017-L10	Price on request	396 in stock	View
LS-LSC-0017-L11	Price on request	410 in stock	View
LS-LSC-0017-L12	Price on request	399 in stock	View
LS-LSC-0017-L13	Price on request	384 in stock	View
LS-LSC-0017-L14	Price on request	393 in stock	View
LS-LSC-0017-L15	Price on request	398 in stock	View
LS-LSC-0017-L16	Price on request	361 in stock	View
LS-LSC-0017-L17	Price on request	412 in stock	View
LS-LSC-0017-L18	Price on request	328 in stock	View
LS-LSC-0017-L19	Price on request	353 in stock	View
LS-LSC-0017-L20	Price on request	332 in stock	View
LS-LSC-0017-L21	Price on request	327 in stock	View
LS-LSC-0017-L22	Price on request	338 in stock	View
LS-LSC-0017-L23	Price on request	335 in stock	View
LS-LSC-0017-L24	Price on request	323 in stock	View
LS-LSC-0017-L25	Price on request	352 in stock	View

See all 49 models in the 405.89 x 23.8 mm line scan light series
