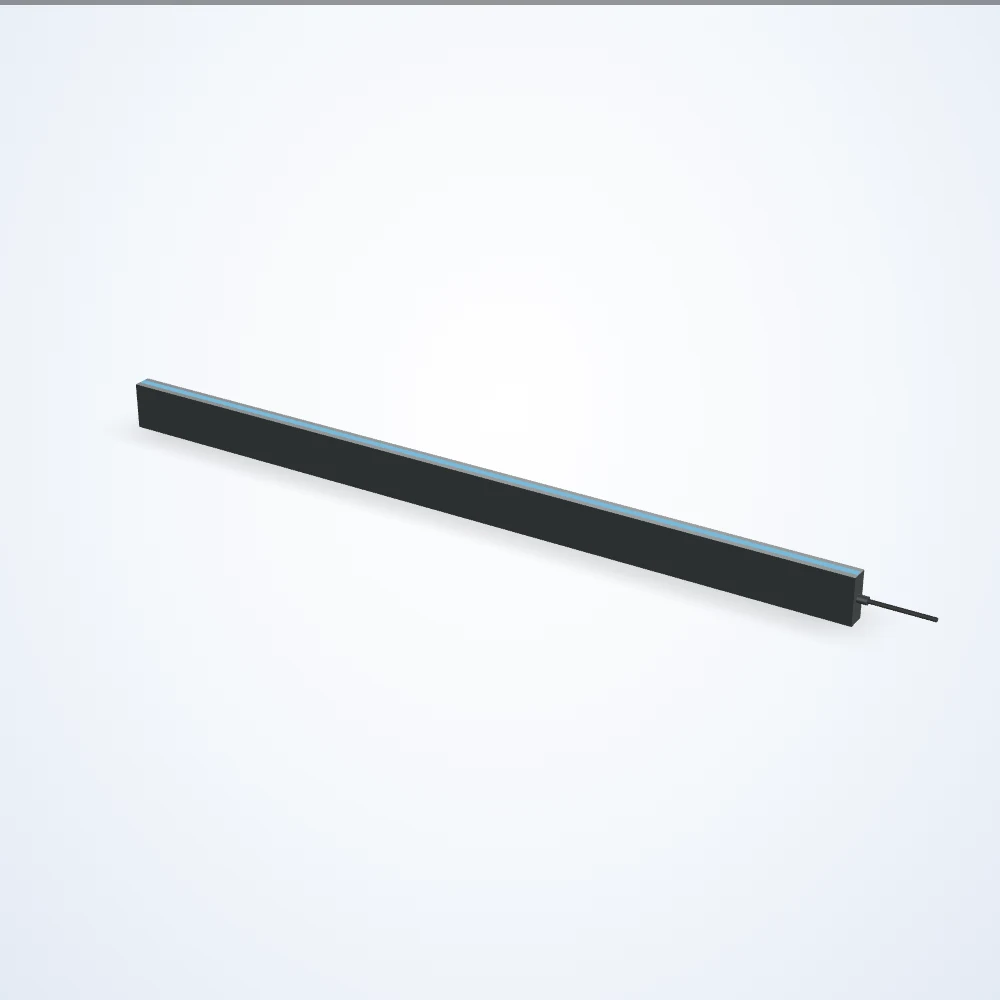

1015.49 x 23.8 mm line scan light (LS-LSC-0017-L23)

Name: 1015.49 x 23.8 mm line scan light (LS-LSC-0017-L23)
Brand: LumaSpec Vision
SKU: LS-LSC-0017-L23

Model LS-LSC-0017-L23

1015.49 x 23.8 mm line scan light. Lit area 1033.17 x 19.05 mm. Connection: Flying Leads. Available in 96 configurations (collimated, color, driver included, driver location); choose one below and request a quote.

Price on request

Ships in 2-3 weeks

CollimatedColorDriver IncludedDriver LocationDriver NomenclatureHeight (mm)Intensity Adjustment TypeLens AngleMaximum Constant On Current (mA)Maximum Current (Overcurrent Strobe) (mA)Maximum Input Power Constant On (W)Maximum Input Power Overcurrent Strobe (W)Maximum Overcurrent Strobe Frequency (Hz)Maximum Overcurrent Strobe Latency (us)Minimum Overcurrent Strobe Duration (us)NPN Trigger Voltage (V)Operation ModesPNP Trigger Current (mA)PNP Trigger Voltage (V)Strobe Trigger Input

Configuration LS-LSC-0017-0597 of 96

Build a system with this light → Matching lens, light, controller and cables, checked for fit

Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
90-day returnsUnused items; free return label in the US · Returns policy
Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
Questions about fit?Contact us; we reply within one business day

Datasheet (PDF) - LS-LSC-0017-L23

Specifications

Model	LS-LSC-0017-L23
Active Length (mm)	1033.17
Active Width (mm)	19.05
Cable Length (mm)	2000
Compliances	CE, IEC 62471, RoHS
Connector Type	Flying Leads
Connectorized At Light	Hardwired
Daisy Chain	No
Direct Connect	No
Housing Material	Aluminum
IP Rating	IP50
Length (mm)	1015.49
Maximum Duty Cycle (%)	100
Maximum Operating Temperature (C)	60
Maximum Operating Temperature (F)	140
Minimum Operating Temperature (F)	32
Mounting Method	T-Slot Channel
Polarized	Not Polarized
Product Weight (Kg)	0.5
Product Weight (Lbs)	1.1
Voltage	24 VDC
Width (mm)	23.8
