Line scan light, 1309 mm lit length (LS-LSC-0017-L30)

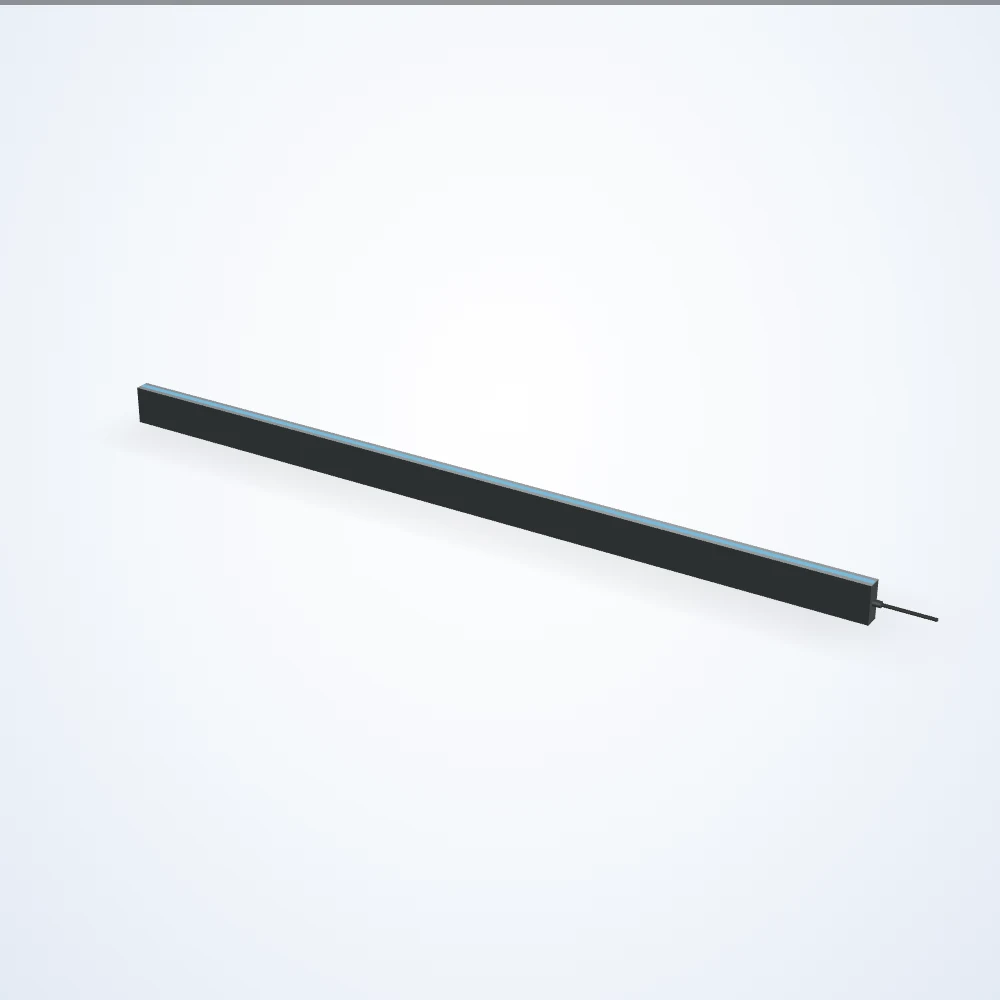

Rendered illustration: the actual product may differ in appearance.

Line scan lights

Line scan light, 1309 mm lit length (LS-LSC-0017-L30)

Model LS-LSC-0017-L30

High-intensity line light for line scan cameras on moving webs and conveyors. Lit area 1309 x 19.1 mm; 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle, driver included, driver location, intensity control below (96 configurations) and request a quote.

Price on request
Built to order: ships in about 4-5 weeks

Configuration LS-LSC-0017-0765 of 96

Build a system with this light → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-LSC-0017-L30

Specifications

ModelLS-LSC-0017-L30
Lit length (mm)1309
Lit width (mm)19.1
Length (mm)1282
Width (mm)23.8
Height (mm)60.6 to 79.6 (by configuration)
Voltage24 VDC
ConnectorFlying Leads
Connection at lightHardwired
Cable length (mm)2000
Operating temperatureup to 60 °C
IP ratingIP50
HousingAluminum
MountingT-Slot Channel
Daisy chainNo
DiffusedNot Diffused
Direct connectNo
Driver nomenclature24V / iCS2 - IC (by configuration)
Maximum constant on current (ma)303 / 673 (by configuration)
Maximum current (overcurrent strobe) (ma)8000 (by configuration)
Maximum duty cycle (%)100
Maximum input power constant on (w)7.3 / 16.2 (by configuration)
Maximum input power overcurrent strobe (w)125 (by configuration)
Maximum overcurrent strobe frequency (hz)2000 (by configuration)
Maximum overcurrent strobe latency (us)60 (by configuration)
Minimum overcurrent strobe duration (us)30 (by configuration)
NPN trigger voltage (v)< 1 VDC (by configuration)
PNP trigger current (ma)5 (by configuration)
PNP trigger voltage (v)2.5-30 VDC (by configuration)
PolarizedNot Polarized
ComplianceCE, IEC 62471, RoHS
