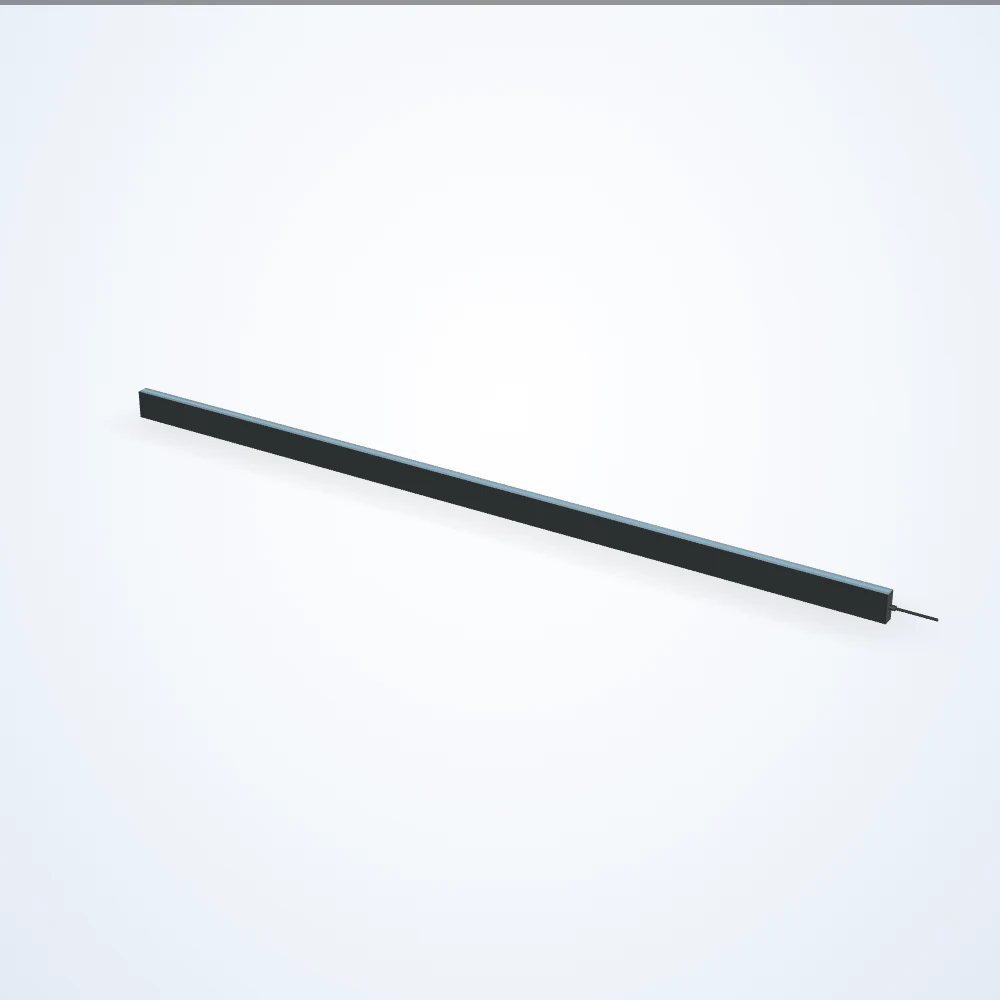

1739.39 x 23.8 mm line scan light (LS-LSC-0017-L42)

Name: 1739.39 x 23.8 mm line scan light (LS-LSC-0017-L42)
Brand: LumaSpec Vision
SKU: LS-LSC-0017-L42

Model LS-LSC-0017-L42

1739.39 x 23.8 mm line scan light. Lit area 1783.13 x 19.05 mm. Connection: Flying Leads. Available in 72 configurations (collimated, color, driver included, driver location); choose one below and request a quote.

Price on request

Ships in 2-3 weeks

CollimatedColorDriver IncludedDriver LocationDriver NomenclatureHeight (mm)Intensity Adjustment TypeLens AngleMaximum Constant On Current (mA)Maximum Current (Overcurrent Strobe) (mA)Maximum Input Power Constant On (W)Maximum Input Power Overcurrent Strobe (W)Maximum Overcurrent Strobe Frequency (Hz)Maximum Overcurrent Strobe Latency (us)Minimum Overcurrent Strobe Duration (us)NPN Trigger Voltage (V)Operation ModesPNP Trigger Current (mA)PNP Trigger Voltage (V)Strobe Trigger Input

Configuration LS-LSC-0017-1053 of 72

Build a system with this light → Matching lens, light, controller and cables, checked for fit

Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
90-day returnsUnused items; free return label in the US · Returns policy
Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
Questions about fit?Contact us; we reply within one business day

Datasheet (PDF) - LS-LSC-0017-L42

Specifications

Model	LS-LSC-0017-L42
Active Length (mm)	1783.13
Active Width (mm)	19.05
Cable Length (mm)	2000
Compliances	CE, IEC 62471, RoHS
Connector Type	Flying Leads
Connectorized At Light	Hardwired
Daisy Chain	No
Direct Connect	No
Housing Material	Aluminum
IP Rating	IP50
Length (mm)	1739.39
Maximum Duty Cycle (%)	100
Maximum Operating Temperature (C)	60
Maximum Operating Temperature (F)	140
Minimum Operating Temperature (F)	32
Mounting Method	T-Slot Channel
Polarized	Not Polarized
Product Weight (Kg)	0.73
Product Weight (Lbs)	1.61
Voltage	24 VDC
Width (mm)	23.8

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the 1739.39 x 23.8 mm line scan light series

Model	Price	Availability	Link
LS-LSC-0017-L25	Price on request	352 in stock	View
LS-LSC-0017-L26	Price on request	335 in stock	View
LS-LSC-0017-L27	Price on request	334 in stock	View
LS-LSC-0017-L28	Price on request	344 in stock	View
LS-LSC-0017-L29	Price on request	337 in stock	View
LS-LSC-0017-L30	Price on request	330 in stock	View
LS-LSC-0017-L31	Price on request	345 in stock	View
LS-LSC-0017-L32	Price on request	329 in stock	View
LS-LSC-0017-L33	Price on request	314 in stock	View
LS-LSC-0017-L34	Price on request	245 in stock	View
LS-LSC-0017-L35	Price on request	254 in stock	View
LS-LSC-0017-L36	Price on request	252 in stock	View
LS-LSC-0017-L37	Price on request	263 in stock	View
LS-LSC-0017-L38	Price on request	237 in stock	View
LS-LSC-0017-L39	Price on request	270 in stock	View
LS-LSC-0017-L40	Price on request	251 in stock	View
LS-LSC-0017-L41	Price on request	232 in stock	View
LS-LSC-0017-L43	Price on request	248 in stock	View
LS-LSC-0017-L44	Price on request	254 in stock	View
LS-LSC-0017-L45	Price on request	254 in stock	View
LS-LSC-0017-L46	Price on request	238 in stock	View
LS-LSC-0017-L47	Price on request	248 in stock	View
LS-LSC-0017-L48	Price on request	255 in stock	View
LS-LSC-0017-L49	Price on request	239 in stock	View

See all 49 models in the 1739.39 x 23.8 mm line scan light series
