Home / Lighting / Line scan lights / Line scan light, 1862 mm lit length
Line scan light, 1862 mm lit length (LS-LSC-0017-L44)

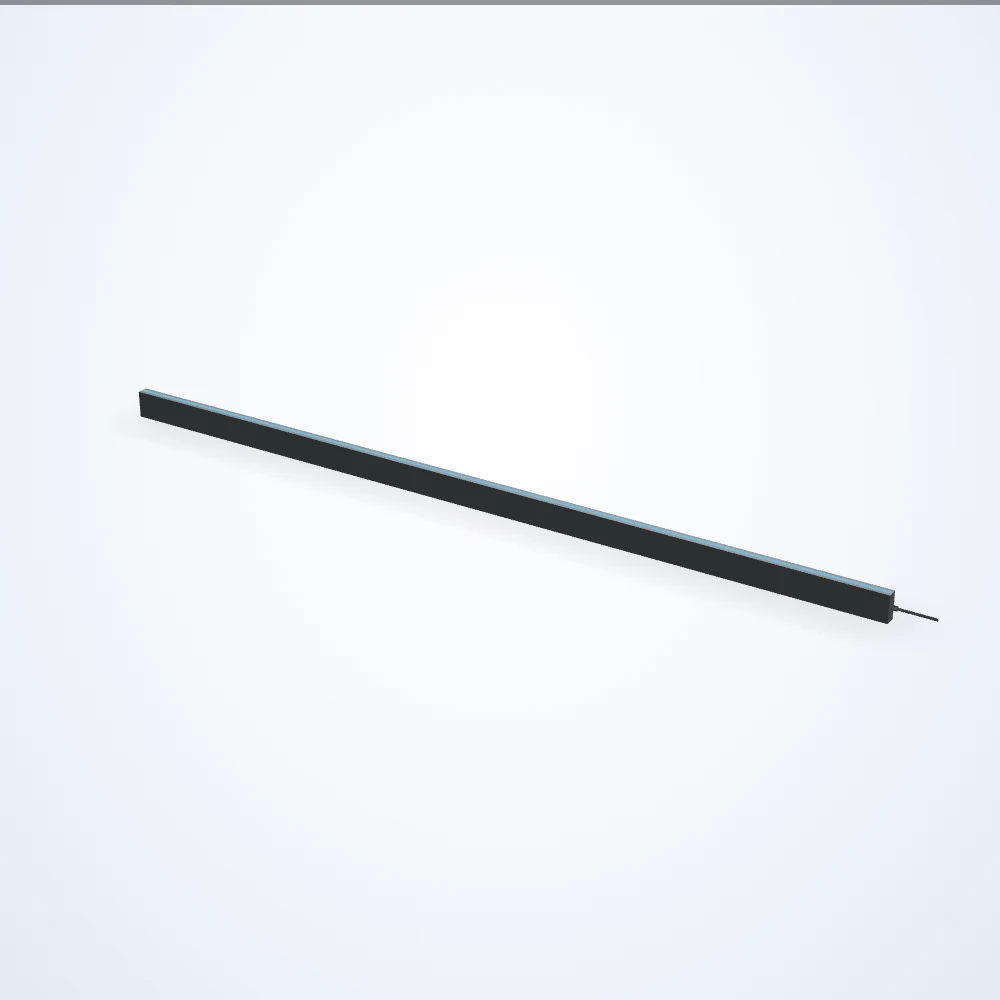

Rendered illustration: the actual product may differ in appearance.

Line scan lights

Line scan light, 1862 mm lit length (LS-LSC-0017-L44)

Model LS-LSC-0017-L44

High-intensity line light for line scan cameras on moving webs and conveyors. Lit area 1862 x 19.1 mm; 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle, driver included, driver location, intensity control below (72 configurations) and request a quote.

Price on request
Built to order: ships in about 4-5 weeks

Configuration LS-LSC-0017-1101 of 72

Build a system with this light → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-LSC-0017-L44

Specifications

ModelLS-LSC-0017-L44
Lit length (mm)1862
Lit width (mm)19.1
Length (mm)1816
Width (mm)23.8
Height (mm)60.6 / 66.9 / 73.3 (by configuration)
Voltage24 VDC
ConnectorFlying Leads
Connection at lightHardwired
Cable length (mm)2000
Operating temperatureup to 60 °C
IP ratingIP50
HousingAluminum
MountingT-Slot Channel
Daisy chainNo
DiffusedNot Diffused
Direct connectNo
Driver nomenclature24V / iCS2 - IC (by configuration)
Maximum constant on current (ma)429 / 953 (by configuration)
Maximum current (overcurrent strobe) (ma)8000 (by configuration)
Maximum duty cycle (%)100
Maximum input power constant on (w)10.3 / 22.9 (by configuration)
Maximum input power overcurrent strobe (w)125 (by configuration)
Maximum overcurrent strobe frequency (hz)2000 (by configuration)
Maximum overcurrent strobe latency (us)60 (by configuration)
Minimum overcurrent strobe duration (us)30 (by configuration)
NPN trigger voltage (v)< 1 VDC (by configuration)
PNP trigger current (ma)5 (by configuration)
PNP trigger voltage (v)2.5-30 VDC (by configuration)
PolarizedNot Polarized
ComplianceCE, IEC 62471, RoHS
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the Line scan light, 1862 mm lit length series

ModelSizePriceAvailabilityLink
LS-LSC-0017-L25 Price on request 352 in stockView
LS-LSC-0017-L26 Price on request 335 in stockView
LS-LSC-0017-L27 Price on request 334 in stockView
LS-LSC-0017-L28 Price on request 344 in stockView
LS-LSC-0017-L29 Price on request 337 in stockView
LS-LSC-0017-L30 Price on request 330 in stockView
LS-LSC-0017-L31 Price on request 345 in stockView
LS-LSC-0017-L32 Price on request 329 in stockView
LS-LSC-0017-L33 Price on request 314 in stockView
LS-LSC-0017-L34 Price on request 245 in stockView
LS-LSC-0017-L35 Price on request 254 in stockView
LS-LSC-0017-L36 Price on request 252 in stockView
LS-LSC-0017-L37 Price on request 263 in stockView
LS-LSC-0017-L38 Price on request 237 in stockView
LS-LSC-0017-L39 Price on request 270 in stockView
LS-LSC-0017-L40 Price on request 251 in stockView
LS-LSC-0017-L41 Price on request 232 in stockView
LS-LSC-0017-L42 Price on request 248 in stockView
LS-LSC-0017-L43 Price on request 248 in stockView
LS-LSC-0017-L45 Price on request 254 in stockView
LS-LSC-0017-L46 Price on request 238 in stockView
LS-LSC-0017-L47 Price on request 248 in stockView
LS-LSC-0017-L48 Price on request 255 in stockView
LS-LSC-0017-L49 Price on request 239 in stockView

See all 49 models in the Line scan light, 1862 mm lit length series
