Home / Lighting / Line scan lights / Line scan light, 362.1 mm lit length
Line scan light, 362.1 mm lit length (LS-LSC-0017-L6)

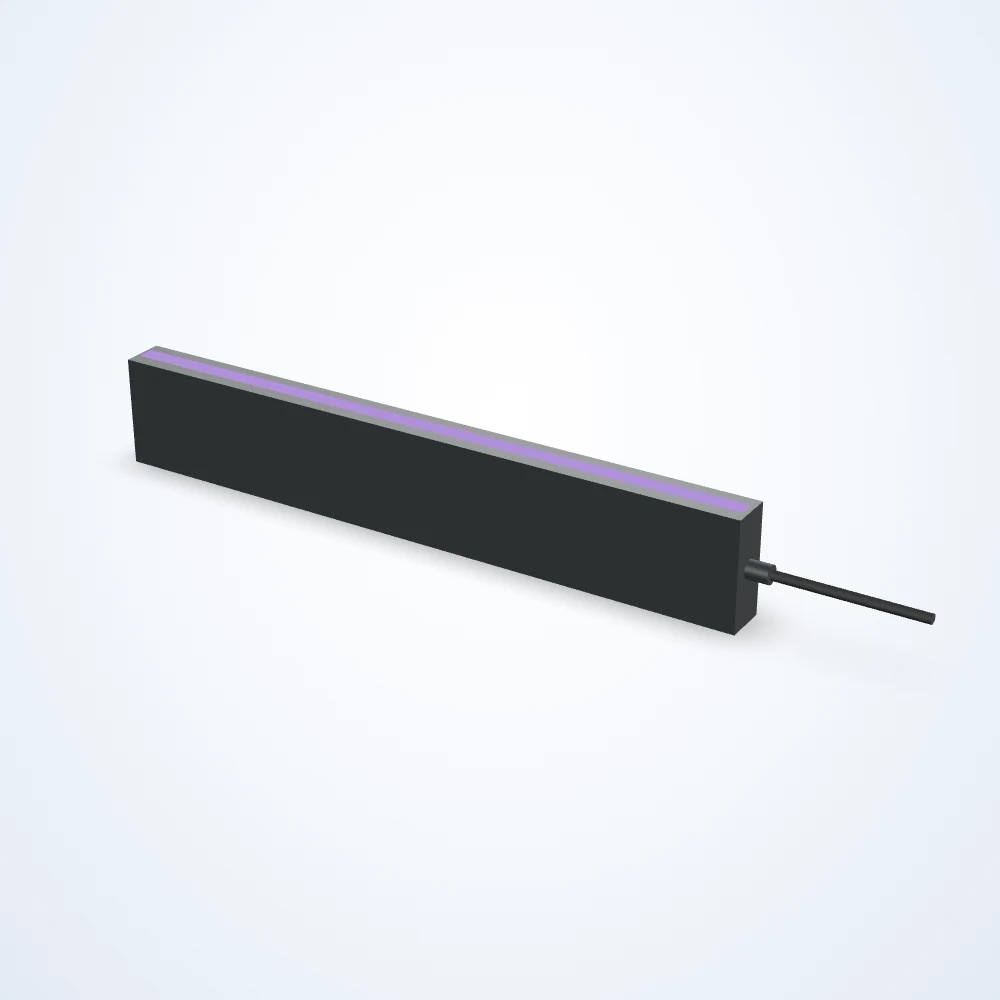

Rendered illustration: the actual product may differ in appearance.

Line scan lights

Line scan light, 362.1 mm lit length (LS-LSC-0017-L6)

Model LS-LSC-0017-L6

High-intensity line light for line scan cameras on moving webs and conveyors. Lit area 362.1 x 19.1 mm; 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle, driver included, driver location, intensity control below (112 configurations) and request a quote.

Price on request
Built to order: ships in about 4-5 weeks

Configuration LS-LSC-0017-0141 of 112

Build a system with this light → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-LSC-0017-L6

Specifications

ModelLS-LSC-0017-L6
Lit length (mm)362.1
Lit width (mm)19.1
Length (mm)367.8
Width (mm)23.8
Height (mm)60.6 to 79.6 (by configuration)
Voltage24 VDC
ConnectorFlying Leads
Connection at lightHardwired
Cable length (mm)2000
Operating temperatureup to 60 °C
IP ratingIP50
HousingAluminum
MountingT-Slot Channel
Daisy chainNo
DiffusedNot Diffused
Direct connectNo
Driver nomenclature24V / iCS2 - IC (by configuration)
Maximum constant on current (ma)87 / 193 (by configuration)
Maximum current (overcurrent strobe) (ma)8000 (by configuration)
Maximum duty cycle (%)100
Maximum input power constant on (w)2.1 / 4.6 (by configuration)
Maximum input power overcurrent strobe (w)125 (by configuration)
Maximum overcurrent strobe frequency (hz)2000 (by configuration)
Maximum overcurrent strobe latency (us)60 (by configuration)
Minimum overcurrent strobe duration (us)30 (by configuration)
NPN trigger voltage (v)< 1 VDC (by configuration)
PNP trigger current (ma)5 (by configuration)
PNP trigger voltage (v)2.5-30 VDC (by configuration)
PolarizedNot Polarized
ComplianceCE, IEC 62471, RoHS
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the Line scan light, 362.1 mm lit length series

ModelSizePriceAvailabilityLink
LS-LSC-0017-L1 Price on request 379 in stockView
LS-LSC-0017-L2 Price on request 389 in stockView
LS-LSC-0017-L3 Price on request 395 in stockView
LS-LSC-0017-L4 Price on request 390 in stockView
LS-LSC-0017-L5 Price on request 382 in stockView
LS-LSC-0017-L7 Price on request 386 in stockView
LS-LSC-0017-L8 Price on request 404 in stockView
LS-LSC-0017-L9 Price on request 390 in stockView
LS-LSC-0017-L10 Price on request 396 in stockView
LS-LSC-0017-L11 Price on request 410 in stockView
LS-LSC-0017-L12 Price on request 399 in stockView
LS-LSC-0017-L13 Price on request 384 in stockView
LS-LSC-0017-L14 Price on request 393 in stockView
LS-LSC-0017-L15 Price on request 398 in stockView
LS-LSC-0017-L16 Price on request 361 in stockView
LS-LSC-0017-L17 Price on request 412 in stockView
LS-LSC-0017-L18 Price on request 328 in stockView
LS-LSC-0017-L19 Price on request 353 in stockView
LS-LSC-0017-L20 Price on request 332 in stockView
LS-LSC-0017-L21 Price on request 327 in stockView
LS-LSC-0017-L22 Price on request 338 in stockView
LS-LSC-0017-L23 Price on request 335 in stockView
LS-LSC-0017-L24 Price on request 323 in stockView
LS-LSC-0017-L25 Price on request 352 in stockView

See all 49 models in the Line scan light, 362.1 mm lit length series
