Machine vision lenses

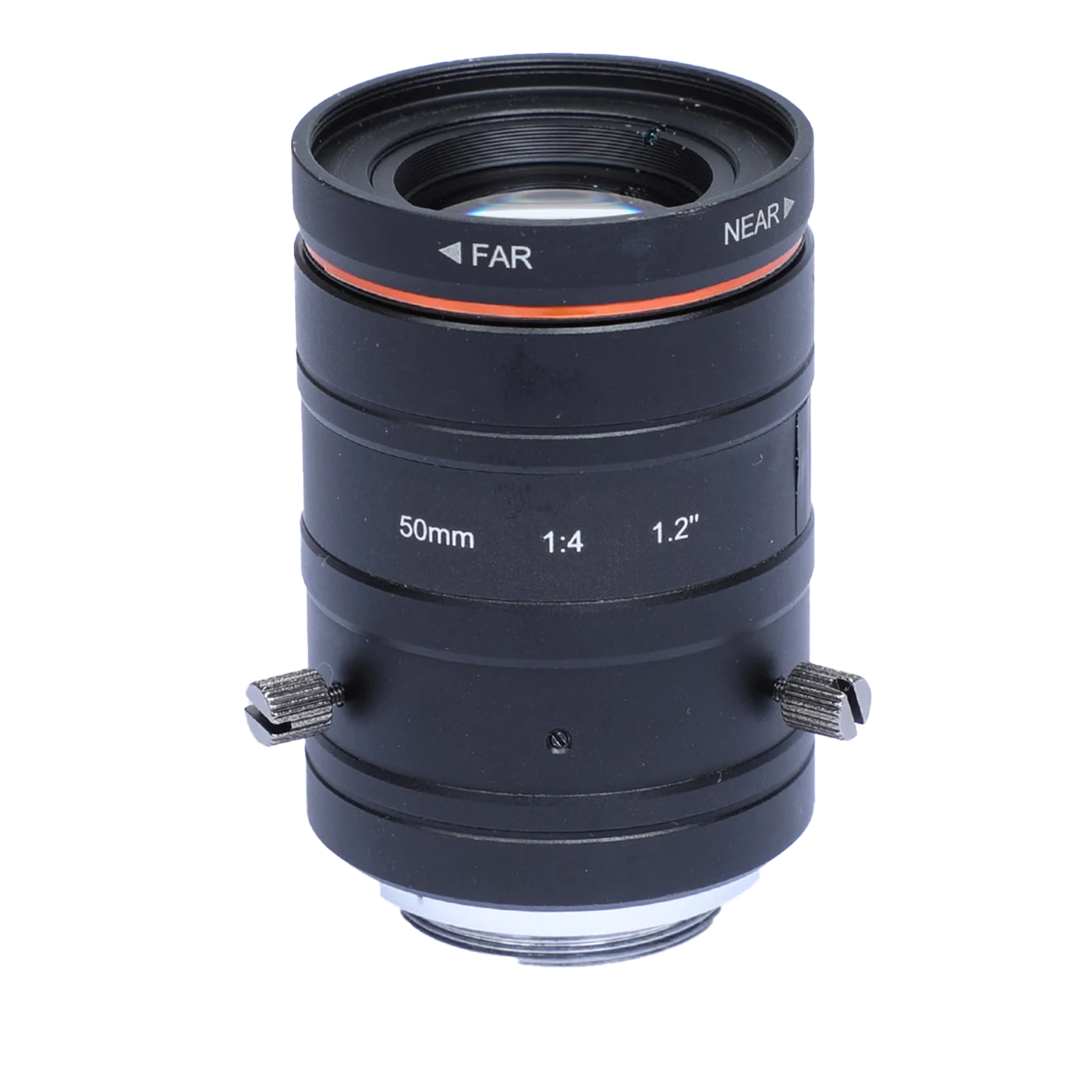

50mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount (LS-KF5040-25MP)
Model LS-KF5040-25MP
50mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount. Ultra high resolution, high consistency in image center and edge clarity 1.2" image size, F4 fixed iris, structurally stable
Features
- Ultra high resolution, high consistency in image center and edge clarity
- 1.2" image size, F4 fixed iris, structurally stable
- Ultra low distortion, high peripheral brightness ratio
- Maintain excellent optical properties at different object distances
- Excellent resistance to vibration, impact, and high and low temperature stability
Specifications
| Model | LS-KF5040-25MP |
|---|---|
| Focal length | 50 mm |
| F-number | F4.0 |
| Image size | Ø19.3 mm (1.2") |
| Distortion | 0.05% |
| Minimum object distance | 0.15 m |
| Field of view | D (19.3 mm): 20.6°; H (14.6 mm): 15.7°; V (12.63 mm): 13.6° |
| Iris control | Fixed |
| Focus control | Manual |
| Filter thread | M35.5 × P0.5 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø38 mm × 56.53 mm to 67.95 mm (Ø1.5" × 2.2" to 2.7") |
| Weight | 187 g (0.4 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.36 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
