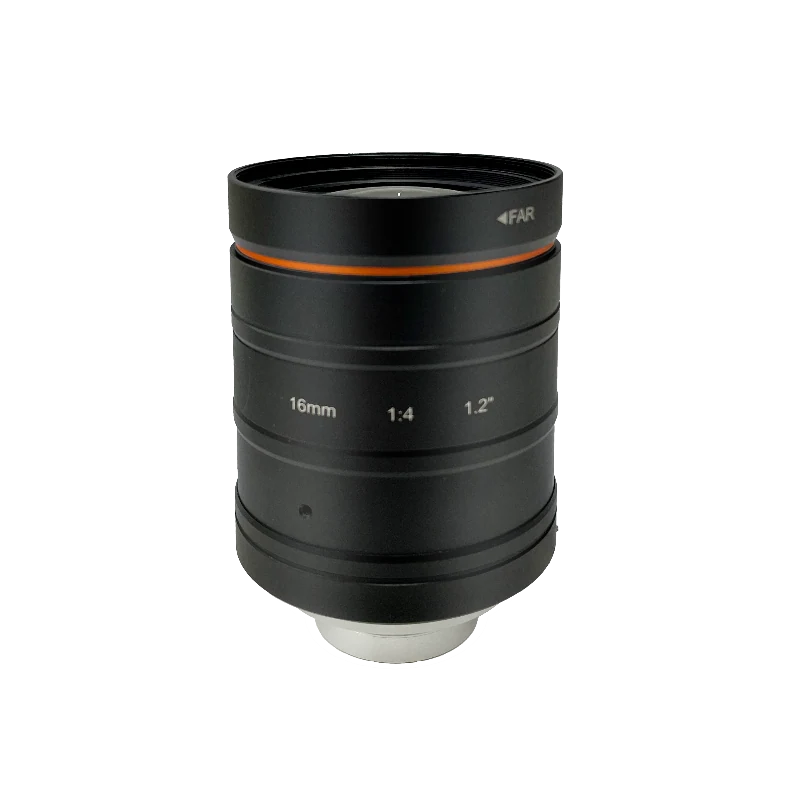

16mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount (LS-KF1640-25MP)
Model LS-KF1640-25MP
16mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount. Ultra high resolution, high consistency in image center and edge clarity 1.2" image size, F4 fixed iris, structurally stable
Features
- Ultra high resolution, high consistency in image center and edge clarity
- 1.2" image size, F4 fixed iris, structurally stable
- Ultra low distortion, high peripheral brightness ratio
- Maintain excellent optical properties at different object distances
- Excellent resistance to vibration, impact, and high and low temperature stability
Specifications
| Model | LS-KF1640-25MP |
|---|---|
| Focal length | 16 mm |
| F-number | F4.0 |
| Image size | Ø19.3 mm (1.2") |
| Distortion | 0.04% |
| Minimum object distance | 0.08 m |
| Field of view | D (17.52 mm): 61.7°; H (14.14 mm): 48.77°; V (10.35 mm): 42.83° |
| Iris control | Fixed |
| Focus control | Manual |
| Filter thread | M40.5 × P0.5 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø42.1 mm × 57.22 mm to 64.19 mm (Ø1.7" x 2.3" to 2.5") |
| Weight | 185 g (0.4 lb.) |
| Temperature | –10°C to 50°C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.36 kg |
