Machine vision lenses

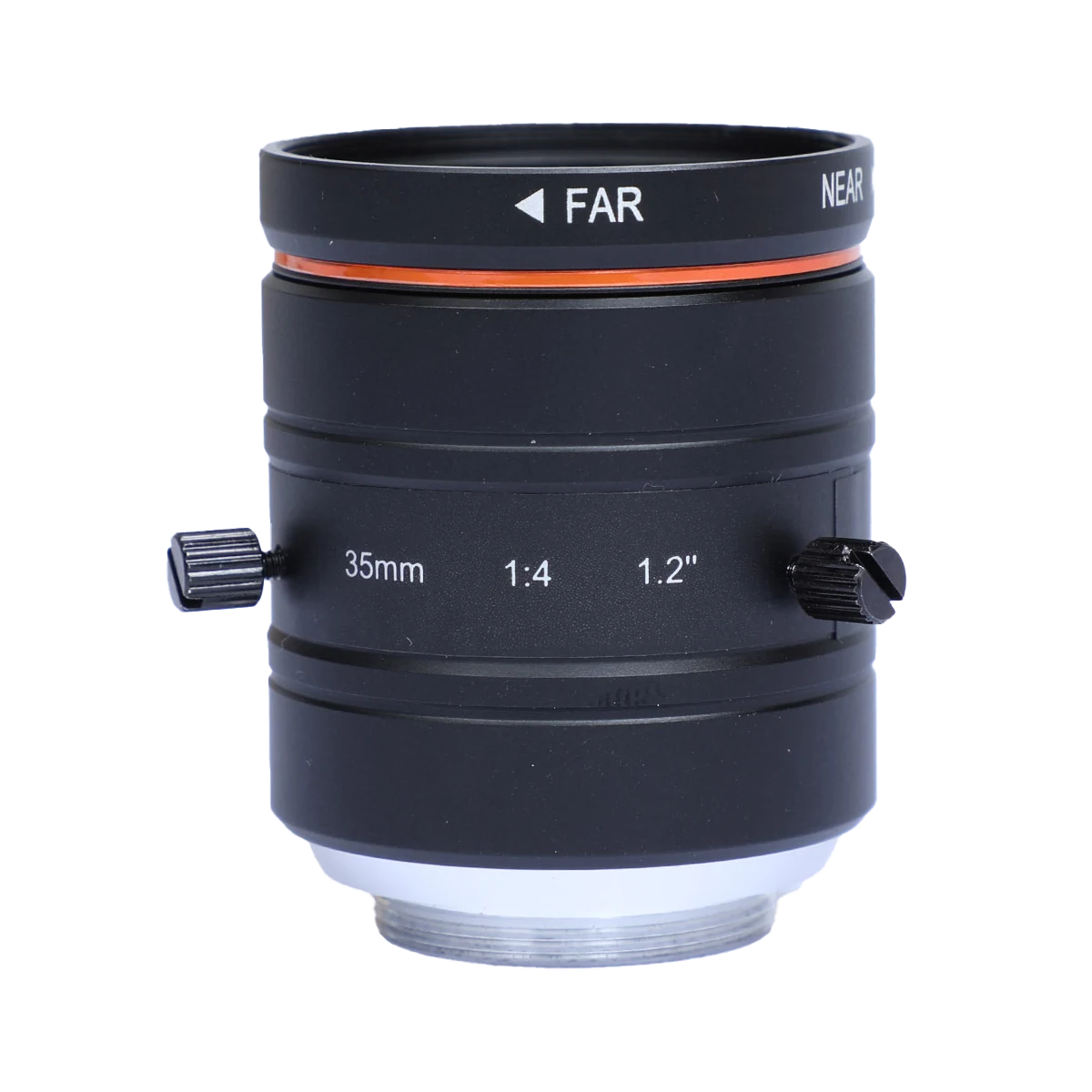

35mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount (LS-KF3540-25MP)
Model LS-KF3540-25MP
35mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount. Ultra high resolution, high consistency in image center and edge clarity 1.2" image size, F4 fixed iris, structurally stable
Features
- Ultra high resolution, high consistency in image center and edge clarity
- 1.2" image size, F4 fixed iris, structurally stable
- Ultra low distortion, high peripheral brightness ratio
- Maintain excellent optical properties at different object distances
- Excellent resistance to vibration, impact, and high and low temperature stability
Specifications
| Model | LS-KF3540-25MP |
|---|---|
| Focal length | 35 mm |
| F-number | F4.0 |
| Image size | Ø19.3 mm (1.2'') |
| Distortion | –0.03% |
| Minimum object distance | 0.12 m |
| Field of view | D (19.3 mm): 29.3°; H (14.6 mm): 22.4°; V (12.63 mm): 19.5° |
| Iris control | Fixed |
| Focus control | Manual |
| Filter thread | M35.5 × P0.5 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø38mm × 45.06 mm to 58.05 mm (Ø1.5" × 1.8" to 2.3") |
| Weight | 135.5 g (0.3 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.29 kg |
