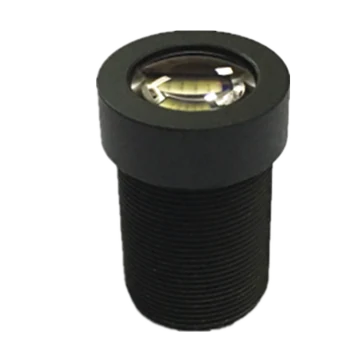

25mm, F2.8, 1/1.8", 5MP Lens, M12-Mount (LS-HF2528-05S)
Model LS-HF2528-05S
25mm, F2.8, 1/1.8", 5MP Lens, M12-Mount. Optimization design for machine vision High resolution, High consistency of picture definition
Features
- Optimization design for machine vision
- High resolution, High consistency of picture definition
- Low Distortion, High relative illumination
- S-Mount (M12 * 0.5), Easy system integration
Specifications
| Model | LS-HF2528-05S |
|---|---|
| Focal length | 25 mm |
| F-Number | F2.8 |
| Image Size | Φ9 mm(1/1.8'') |
| TV Distortion | <0.05% |
| Working Distance Range | 200 ~ 950 mm |
| Field of View | D(8.86 mm):20°; H(7.37 mm):17°; V(4.91 mm):11° |
| Mount | S-Mount |
| TTL | 26.2 ~ 29.3 mm |
| Dimension | Φ14 mm×20.22 mm |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.13 kg |
