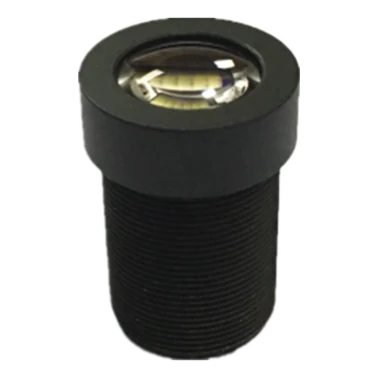

16mm, F2.8, 1/1.8", 5MP Lens, M12-Mount (LS-HF1628-05S)
Model LS-HF1628-05S
16mm, F2.8, 1/1.8", 5MP Lens, M12-Mount. Optimization design for machine vision High resolution, high consistency of picture definition
Features
- Optimization design for machine vision
- High resolution, high consistency of picture definition
- Low Distortion, high relative illumination
- S-Mount (M12 * 0.5), easy system integration
Specifications
| Model | LS-HF1628-05S |
|---|---|
| Focal length | 16 mm |
| F-Number | F2.8 |
| Image Size | Φ9 mm(1/1.8'') |
| TV Distortion | <0.1% |
| Working Distance Range | 100 ~ 850 mm |
| Field of View | D(8.86 mm):31°; H(7.37 mm):26°; V(4.91 mm):17° |
| Mount | S-Mount |
| TTL | 19.3 ~ 22.2 mm |
| Dimension | Φ14 mm × 13.78 mm |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.13 kg |
