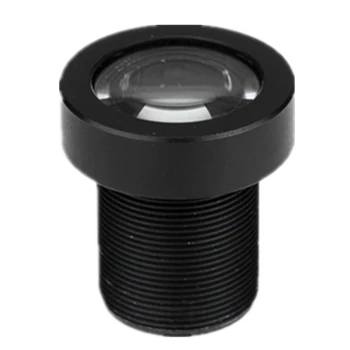

12mm, F2.8, 1/1.8", 5MP Lens, M12-Mount (LS-HF1228-05S)
Model LS-HF1228-05S
12mm, F2.8, 1/1.8", 5MP Lens, M12-Mount. Optimization design for machine vision High resolution, high consistency of picture definition
Features
- Optimization design for machine vision
- High resolution, high consistency of picture definition
- Low Distortion, high relative illuminationh
- S-Mount (M12 * 0.5), easy system integration
Specifications
| Model | LS-HF1228-05S |
|---|---|
| Focal length | 12 mm |
| F-Number | F2.8 |
| Image Size | Φ9 mm(1/1.8'') |
| TV Distortion | <0.2% |
| Working Distance Range | 100 ~ 850 mm |
| Field of View | D(8.86 mm):41°; H(7.37 mm):34°; V(4.91 mm):23° |
| Mount | S-Mount |
| TTL | 25.4 ~ 26.9 mm |
| Dimension | Φ15.4 mm × 19.46 mm |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.13 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the M12 series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-HF0328-05S | $39.00 | 5 in stock | View | |
| LS-HF0628-05S | $39.00 | 2 in stock | View | |
| LS-HF0828-05S | $39.00 | 5 in stock | View | |
| LS-HF1628-05S | $39.00 | 3 in stock | View | |
| LS-HF2528-05S | $39.00 | 5 in stock | View |
