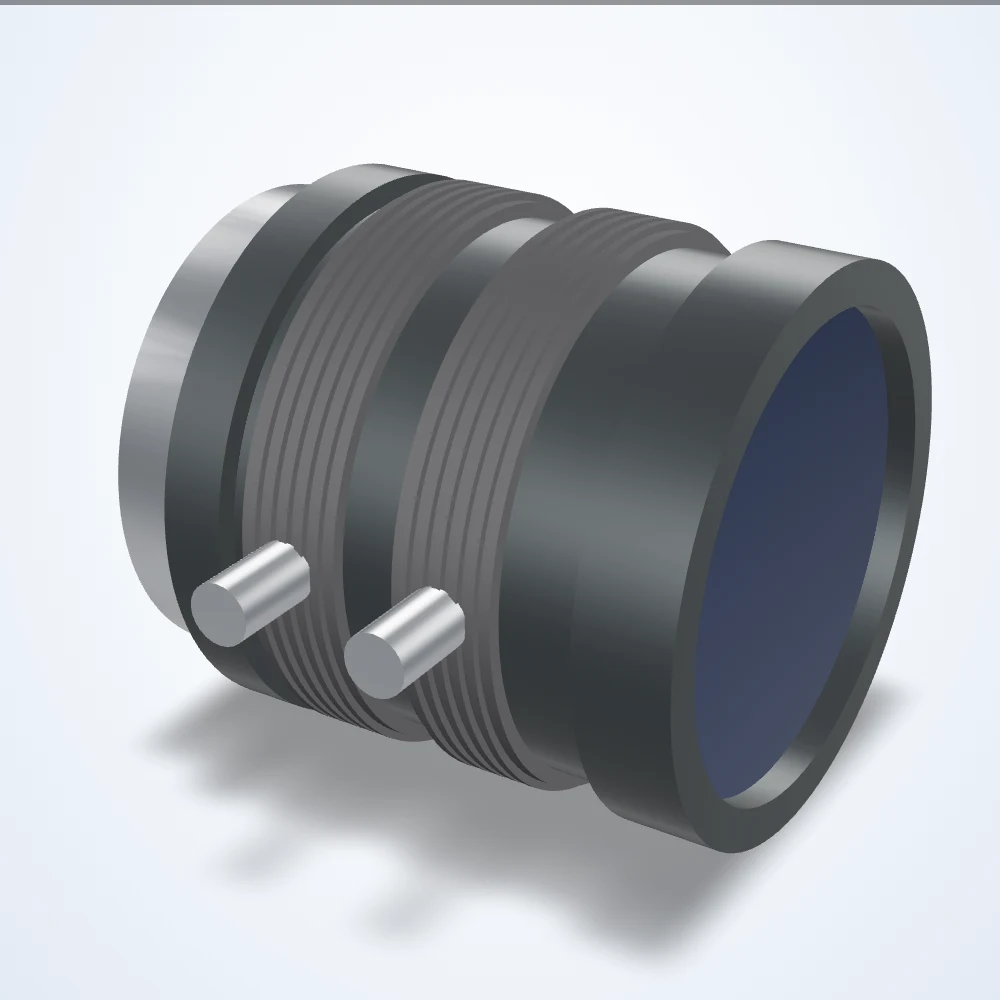

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
12 mm lens, 1/1.7", C-mount (LS-FFL-0278)
Model LS-FFL-0278
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0278 |
|---|---|
| Focal length | 12 mm |
| Max. sensor format | 1/1.7" |
| Mount | C-mount |
| Aperture (F) | 2.4-16 |
| Angle of view | 34.3 x 25.9 deg |
| Distortion | -0.42% (TV, design value) |
| Operating temperature | -20~+60 C |
| Angle of view 1/1.8" | 33.7 x 22.9 deg |
| Angle of view 1/2" | 29.3 x 22.1 deg |
| Angle of view 1/3" | 22.1 x 16.6 deg |
| Dimensions (dia. x length, mm) | 29 x 27.78 |
| FOV @ 1/1.7″ | 34.3° × 25.9° |
| FOV @ 1/1.8″ | 33.7° × 22.9° |
| FOV @ 1/2″ | 22.1° × 16.6° |
| FOV @ 1/3″ | 29.3° × 22.1° |
| Filter thread | M27x0.5 |
| Flange back | 17.526mm (in air) |
| Focus control | Manual with Lock |
| Focus range | 0.1m~inf (recommended shooting distance 0.3m) |
| Focus rotation angle | 71.4 deg |
| Iris control | Manual with Lock |
| Iris rotation angle | 52.8 deg |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operating temperature range | 20 to +60 °C |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear lens dia. | 14.8mm |
| Rear protrusion | 5.4mm (max) |
| Resolution (MP) | 6 |
| Spectrum | Visible |
| TV distortion (%) | 0.42 |
| Wavelength | Visible light |
| Weight ( g ) | 40 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Lens series, 1/1.7", C-mount series
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0276 | 6 mm | Price on request | 3 in stock | View |
| LS-FFL-0277 | 8 mm | Price on request | 2 in stock | View |
| LS-FFL-0279 | 16 mm | Price on request | 3 in stock | View |
| LS-FFL-0280 | 25 mm | Price on request | 2 in stock | View |
| LS-FFL-0281 | 35 mm | Price on request | 2 in stock | View |
| LS-FFL-0282 | 50 mm | Price on request | 5 in stock | View |
