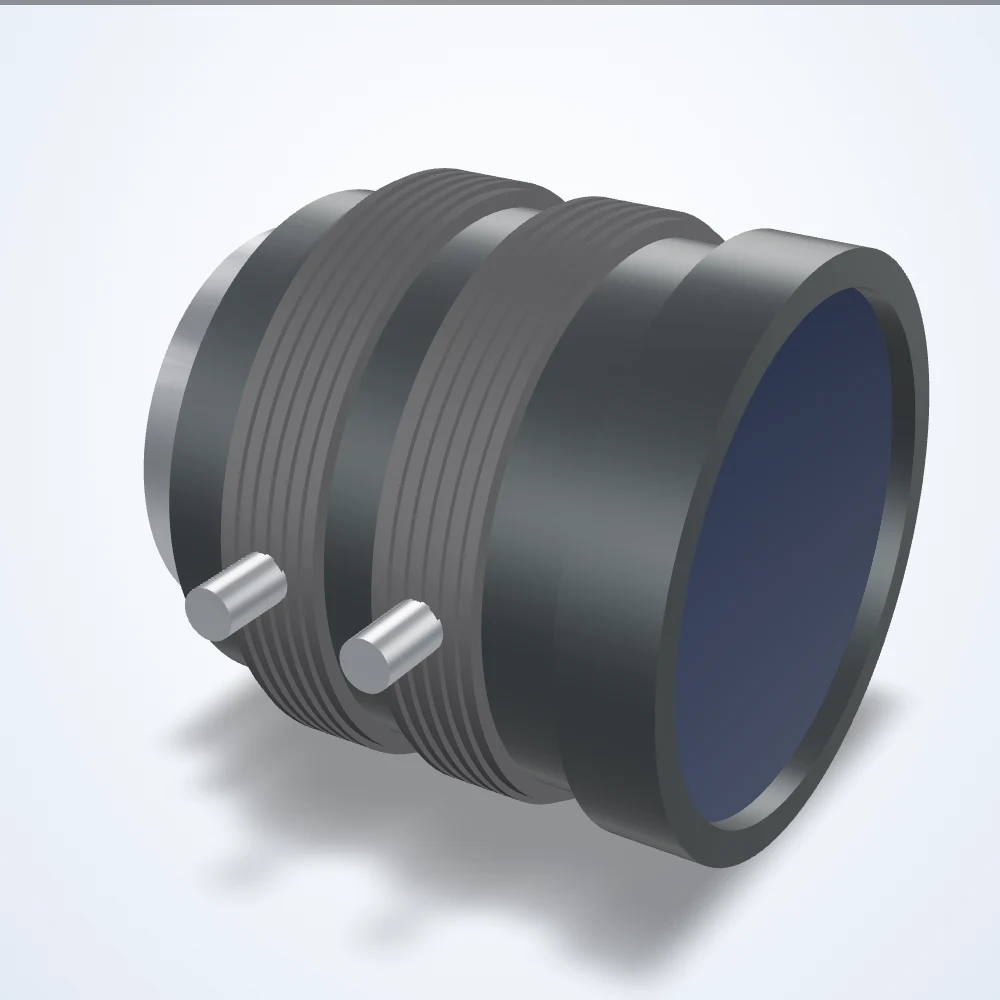

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
6 mm lens, 1/1.7", C-mount (LS-FFL-0276)
Model LS-FFL-0276
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0276 |
|---|---|
| Focal length (mm) | 6 |
| Max. sensor format | 1/1.7" |
| Mount | C-mount |
| Aperture (F) | 2.4-16 |
| Angle of view | 65.0 x 50.5 deg |
| Distortion | -1.5% (TV) |
| Operating temperature | -20~+60 C |
| Angle of view 1/1.8" | 64.2 x 44.9 deg |
| Angle of view 1/2" | 56.5 x 43.4 deg |
| Angle of view 1/3" | 43.4 x 32.9 deg |
| Dimensions (dia. x length, mm) | 36 x 33.4 |
| FOV @ 1/1.7″ | 65° × 50.5° |
| FOV @ 1/1.8″ | 64.2° × 44.9° |
| FOV @ 1/2″ | 43.4° × 32.9° |
| FOV @ 1/3″ | 56.5° × 43.4° |
| Filter thread | M34x0.5 |
| Flange back | 17.53mm (in air) |
| Focus angle | 80.0 deg |
| Focus control | Manual with Lock |
| Focus range | 0.1m~inf (recommended shooting distance 0.3m) |
| Iris angle | 66.5 deg |
| Iris control | Manual with Lock |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operating temperature range | -20 to +60 °C |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear dia. | 29mm |
| Rear protrusion | 5.6mm (max) |
| Resolution (MP) | 6 |
| Spectrum | Visible |
| Tv distortion (%) | -1.5 |
| Wave length | Visible light |
| Weight (g) | 50 |
