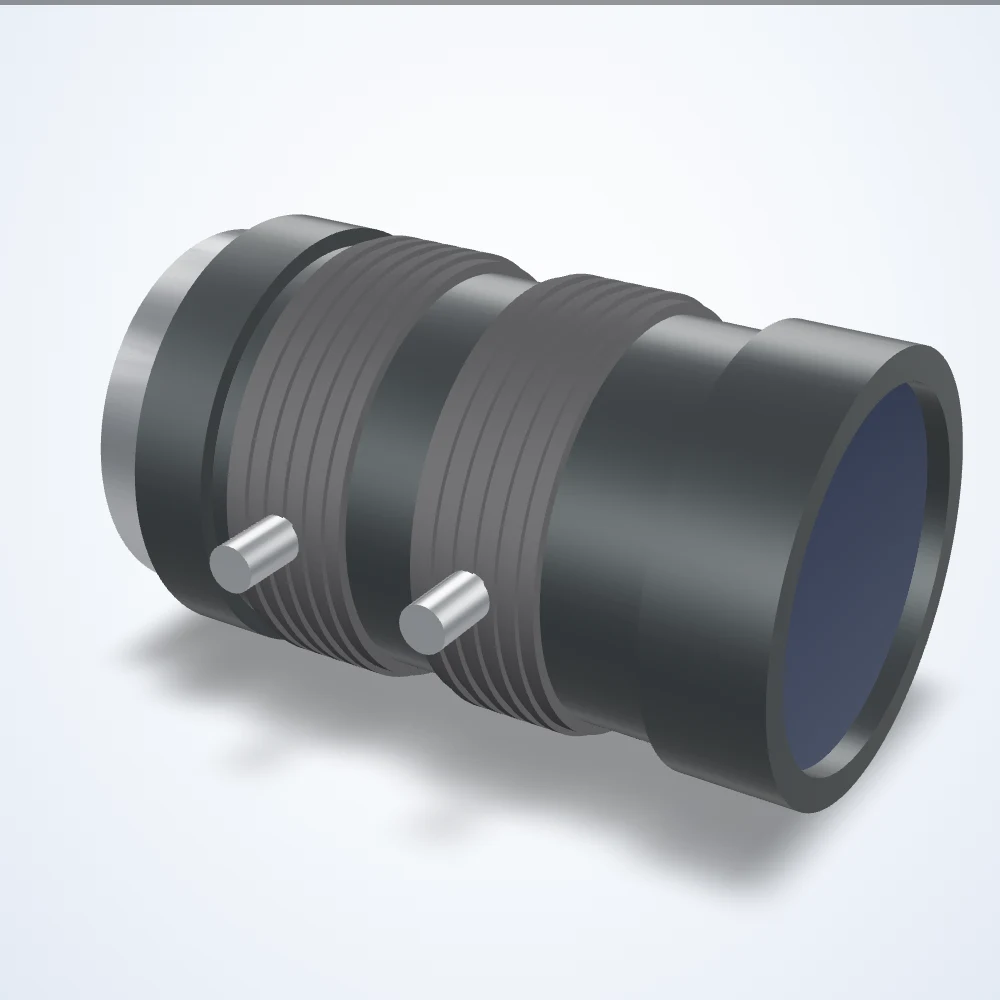

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 1/1.7", C-Mount (LS-FFL-0282)
Model LS-FFL-0282
50 mm lens, 1/1.7", C-Mount. Minimum object distance 200 mm. Aperture f/2.8 to f/16.
Specifications
| Model | LS-FFL-0282 |
|---|---|
| Focus Range | 0.2 m - ∞ |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Resolution (MP) | 6 |
| Resolution (Pixel Size) | 2.4 μm |
| Focal length (mm) | 50 |
| Aperture (F) | 2.8-16 |
| Max. sensor format | 1/1.7" |
| Minimum object distance (m) | 0.2 |
| Angle of view | 8.9 x 6.7 deg |
| Distortion | -0.01% (TV, design value) |
| Filter thread | M27x0.5 |
| Mount | C |
| Weight (g) | 60 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Dimensions (dia. x length, mm) | 29 x 45.29 |
| Focus range | 0.2m~inf (recommended shooting distance 0.3m) |
| Angle of view 1/1.8" | 8.7 x 5.9 deg |
| Angle of view 1/2" | 7.5 x 5.7 deg |
| Angle of view 1/3" | 5.7 x 4.3 deg |
| Wave length | Visible light |
| Operating temperature | -20~+60 C |
| Length max (front extended) | 57.57mm (max) |
| Rear protrusion | 5.22mm (max) |
| Rear lens dia. | 17.4mm |
| Flange back | 17.526mm (in air) |
| Focus rotation angle | 86.8 deg |
| Iris rotation angle | 76.8 deg |
