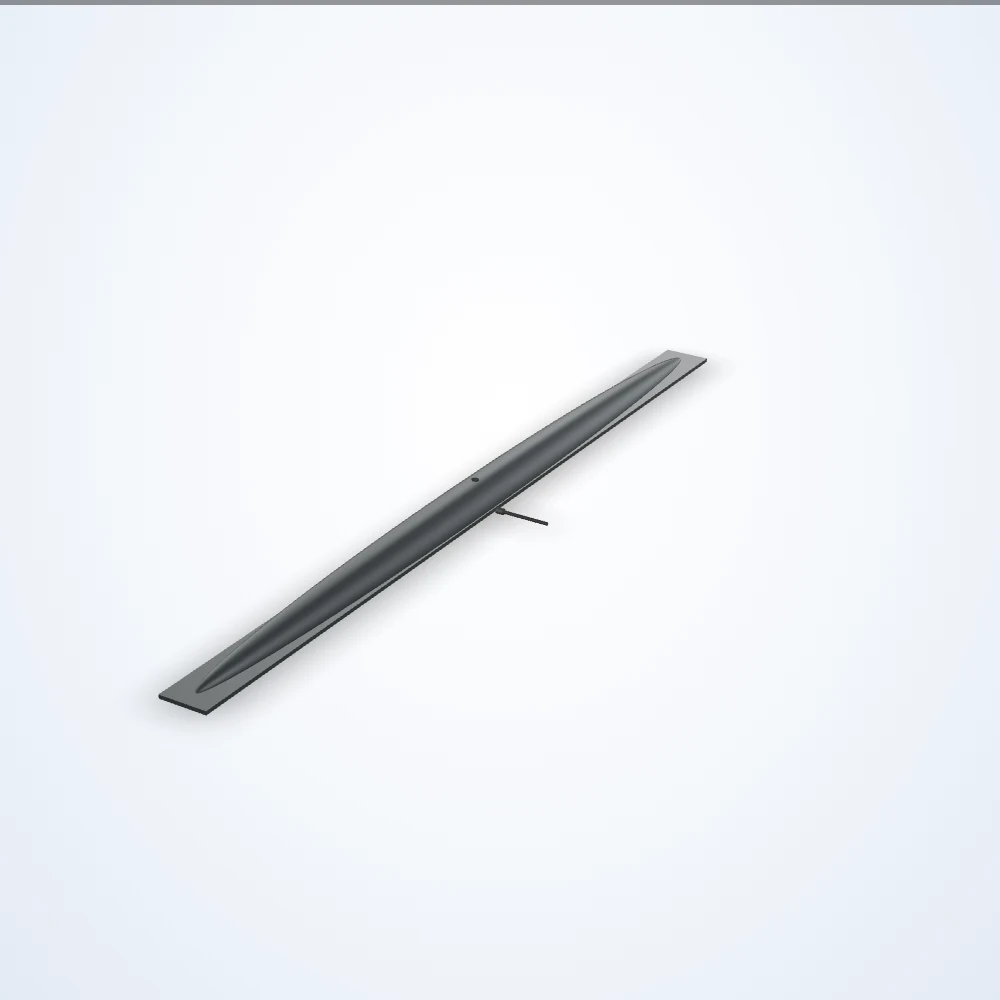

Dome light, 25.5 mm, length 1389 mm (LS-DOM-0030)

Model LS-DOM-0030

Dome light for diffuse, cloudy-day illumination of curved, shiny and reflective parts; the camera looks through the viewport. Lit area 1381 x 25.5 mm; 24 VDC supply; connection: flying leads. Choose colour below (8 configurations) and request a quote.

Datasheet (PDF) - LS-DOM-0030

Specifications

Model	LS-DOM-0030
Lit length (mm)	1381
Lit width (mm)	25.5
Length (mm)	1389
Width (mm)	77.9
Height (mm)	40.7
Voltage	24 VDC
Connector	Flying Leads
Connection at light	Hardwired
Cable length (mm)	2000
Driver included	No Driver Required
Driver location	No Driver
Operating modes	Constant On
Strobe trigger input	Constant On Only
Operating temperature	up to 60 °C
IP rating	IP67
Housing	Aluminum
Mounting	Tapped Holes
Collimated	Not Collimated
Daisy chain	No
Diffused	Not Diffused
Direct connect	No
Maximum constant on current (ma)	3262
Maximum duty cycle (%)	100
Maximum input power constant on (w)	78.3
Polarized	Not Polarized
Compliance	CE, IEC 62471, RoHS

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the Dome light series, 40.7 mm high, Flying Leads series

Model	Size	Price	Availability	Link
LS-DOM-0014	568.3 x 25.5 mm	Price on request	107 in stock	View
LS-DOM-0015	619.1 x 25.5 mm	Price on request	115 in stock	View
LS-DOM-0016	669.9 x 25.5 mm	Price on request	59 in stock	View
LS-DOM-0017	720.7 x 25.5 mm	Price on request	64 in stock	View
LS-DOM-0018	771.5 x 25.5 mm	Price on request	55 in stock	View
LS-DOM-0019	822.3 x 25.5 mm	Price on request	52 in stock	View
LS-DOM-0020	873.1 x 25.5 mm	Price on request	60 in stock	View
LS-DOM-0021	923.9 x 25.5 mm	Price on request	51 in stock	View
LS-DOM-0022	974.7 x 25.5 mm	Price on request	64 in stock	View
LS-DOM-0023	1026 x 25.5 mm	Price on request	56 in stock	View
LS-DOM-0024	1076 x 25.5 mm	Price on request	54 in stock	View
LS-DOM-0025	1127 x 25.5 mm	Price on request	29 in stock	View
LS-DOM-0026	1178 x 25.5 mm	Price on request	24 in stock	View
LS-DOM-0027	1229 x 25.5 mm	Price on request	30 in stock	View
LS-DOM-0028	1280 x 25.5 mm	Price on request	30 in stock	View
LS-DOM-0029	1330 x 25.5 mm	Price on request	29 in stock	View
LS-DOM-0031	1432 x 25.5 mm	Price on request	32 in stock	View
LS-DOM-0032	1483 x 25.5 mm	Price on request	20 in stock	View
LS-DOM-0033	1534 x 25.5 mm	Price on request	30 in stock	View
LS-DOM-0034	1584 x 25.5 mm	Price on request	25 in stock	View
LS-DOM-0035	1635 x 25.5 mm	Price on request	28 in stock	View
LS-DOM-0036	1686 x 25.5 mm	Price on request	27 in stock	View
LS-DOM-0037	1737 x 25.5 mm	Price on request	29 in stock	View
LS-DOM-0038	1788 x 25.5 mm	Price on request	26 in stock	View

See all 35 models in the Dome light series, 40.7 mm high, Flying Leads series
