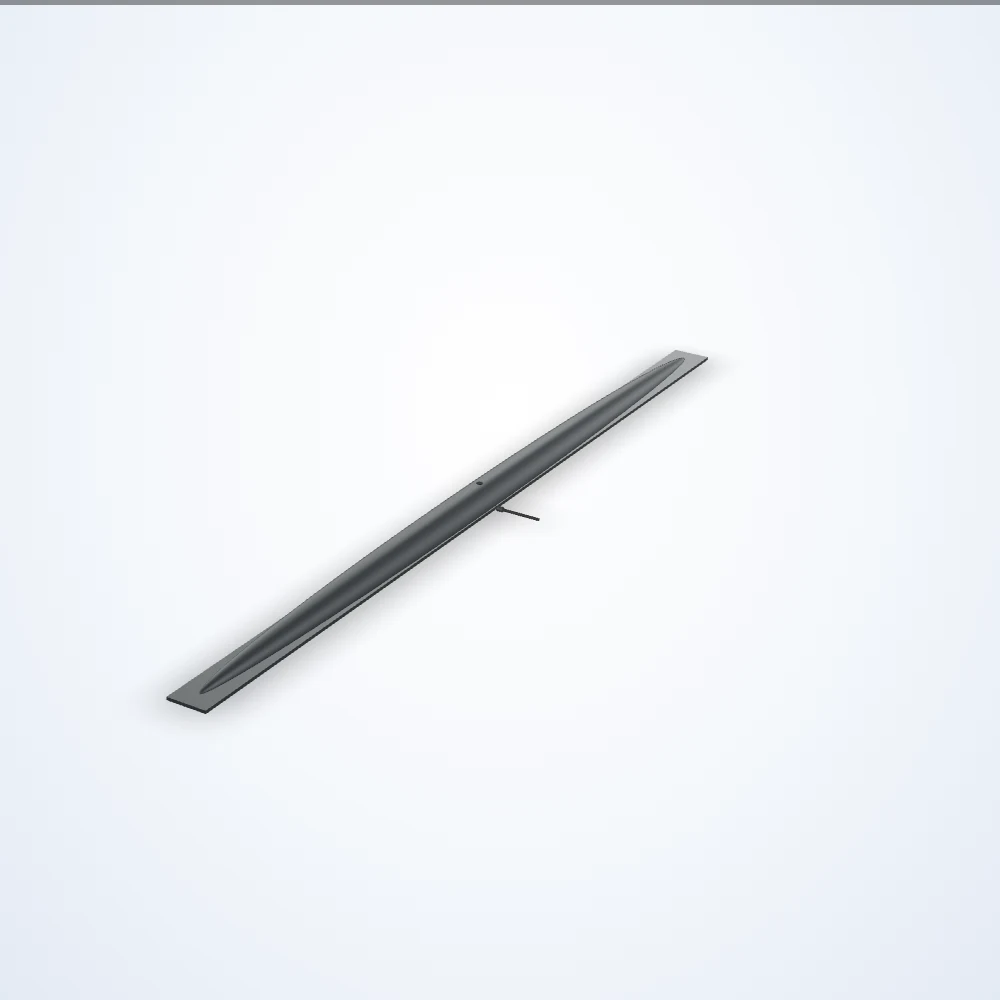

Rendered illustration: the actual product may differ in appearance.
Dome lights
1693.42 x 77.9 mm dome light (LS-DOM-0036)
Model LS-DOM-0036
1693.42 x 77.9 mm dome light. Lit area 1685.92 x 25.5 mm. Connection: Flying Leads. Available in 8 configurations (color); choose one below and request a quote.
Specifications
| Model | LS-DOM-0036 |
|---|---|
| Active Length (mm) | 1685.92 |
| Active Width (mm) | 25.5 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | No Driver Required |
| Driver Location | No Driver |
| Driver Nomenclature | 24V |
| Height (mm) | 40.7 |
| Housing Material | Aluminum |
| IP Rating | IP67 |
| Length (mm) | 1693.42 |
| Maximum Constant On Current (mA) | 3982 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 95.6 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | Tapped Holes |
| Operation Modes | Constant On |
| Polarized | Not Polarized |
| Product Weight (Kg) | 2.37 |
| Product Weight (Lbs) | 5.23 |
| Strobe Trigger Input | Constant On Only |
| Voltage | 24 VDC |
| Width (mm) | 77.9 |
