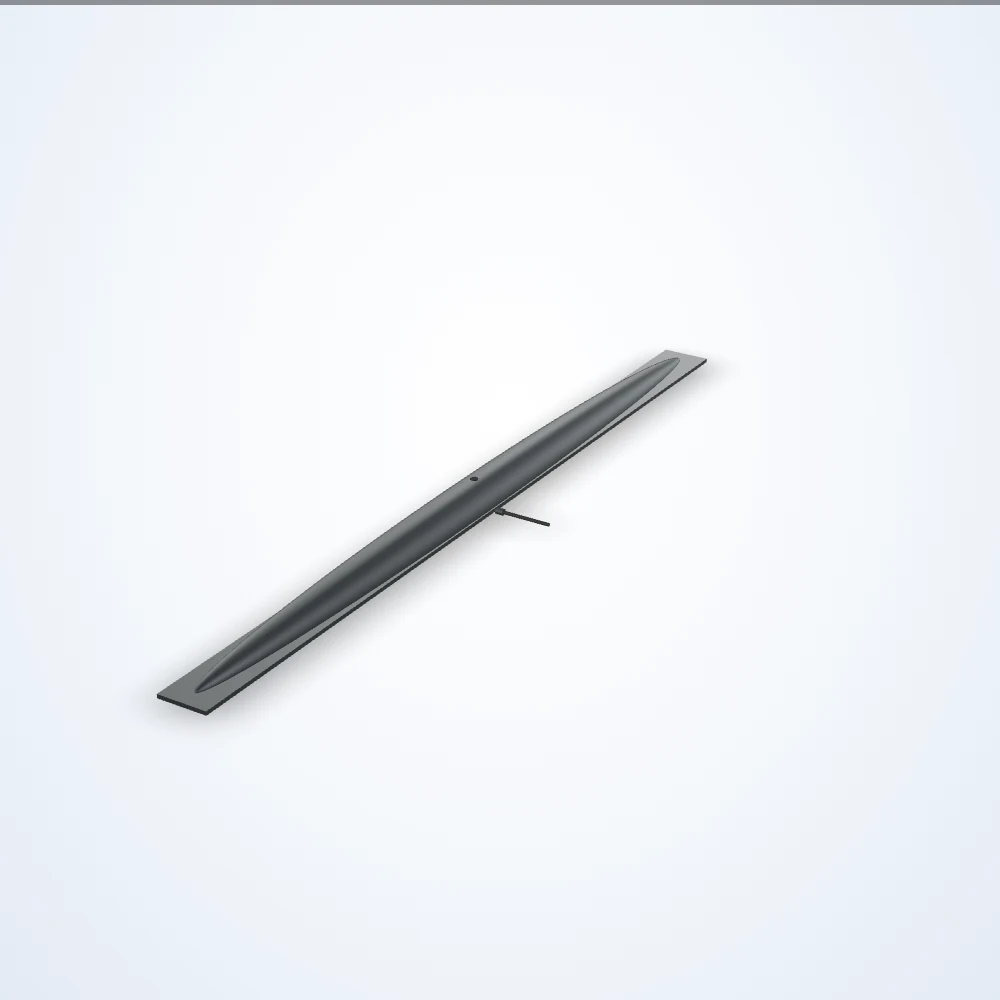

Rendered illustration: the actual product may differ in appearance.
Dome lights
Dome light, 25.5 mm (LS-DOM-0029)
Model LS-DOM-0029
Dome light for diffuse, cloudy-day illumination of curved, shiny and reflective parts; the camera looks through the viewport. Lit area 1330 x 25.5 mm; 24 VDC supply; connection: flying leads. Choose colour below (8 configurations) and request a quote.
Specifications
| Model | LS-DOM-0029 |
|---|---|
| Lit length (mm) | 1330 |
| Lit width (mm) | 25.5 |
| Length (mm) | 1338 |
| Width (mm) | 77.9 |
| Height (mm) | 40.7 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Driver included | No Driver Required |
| Driver location | No Driver |
| Operating modes | Constant On |
| Strobe trigger input | Constant On Only |
| Operating temperature | up to 60 °C |
| IP rating | IP67 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | 24V |
| Maximum constant on current (ma) | 3142 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 75.4 |
| Polarized | Not Polarized |
| Compliance | CE, IEC 62471, RoHS |
