Coaxial lights
Coaxial Light, 70 x 70 mm, IR 850 nm (LS-CXL-0233)
Model LS-CXL-0233
- ColourInfrared
- Emitting area70 mm × 70 mm
- Size99 mm × 77.7 mm × 76 mm
- Power12.6 W
- Wavelength850 nm
- Highest power of the 14 models in its series: 12.6 W
Ships in 2-3 weeks
0.68 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-CXL-0233: emitting area dimension 70 mm x 70 mm, dimension 99 mm x 77.7 mm x 76 mm, power 12.6 W, color Infrared.
Coaxial Light, 70 x 70 mm, IR 850 nm. Features special beam splitter design and improved light efficiency. Features efficient heat dissipation and extended service life.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CXL-0233 |
|---|---|
| Safety class | No danger |
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 1 m |
Light
| Color | Infrared |
|---|---|
| Center illuminance/irradiance | ≥ 8000 lux |
| Wavelength | 850 nm |
| Emitting area dimension | 70 mm × 70 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 90% RH (no condensation) |
Electrical
| Power | 12.6 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical
| Dimension | 99 mm × 77.7 mm × 76 mm |
|---|---|
| Weight | 417 g |
| Shipping weight (estimated) | 0.68 kg |
Engineering data
Drive and fit the LS-CXL-0233
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Mounting and installation
| Cable | 1 mSMR-03V-B connector |
|---|
As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.
Controllers for this light
20 W per channel at 24 V for this 12.6 W light
4-channel 24 V analog LED light controller
LS-CTL-0461
- Channels 4
- Output 24 V
$150.00
Ships in 3-4 weeks
15 W per channel at 24 V for this 12.6 W light
24 W per channel at 24 V for this 12.6 W light
24 W per channel at 24 V for this 12.6 W light
Digital controller, 8 ch, 120 W, 116 x 164.8 mm
LS-CTL-0375
- Channels 8
- Output 24 V
$479.00
Ships in 2-3 weeks
15 W per channel at 24 V for this 12.6 W light
Digital controller, 16 ch, 350 W
LS-CTL-0420
- Channels 16
- Output Constant voltage 24 V
$1,579.00
Ships in 2-3 weeks
21.9 W per channel at 24 V for this 12.6 W light
Light cables
Light Cable, SMR-03V-B to SMR-03V-BC, 1 m
LS-LAC-0035
- Length 1 m
- End A SMR-03V-B
$39.00
Ships in 2-3 weeks
Light Cable, SMR-03V-B to SMR-03V-BC, 3 m
LS-LAC-0037
- Length 3 m
- End A SMR-03V-B
$39.00
Ships in 2-3 weeks
Light Cable, SMR-03V-B to SMR-03V-BC, 5 m
LS-LAC-0039
- Length 5 m
- End A SMR-03V-B
$39.00
Ships in 2-3 weeks
Application studies
Applications for this type of part

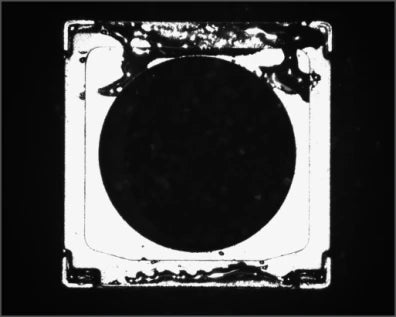

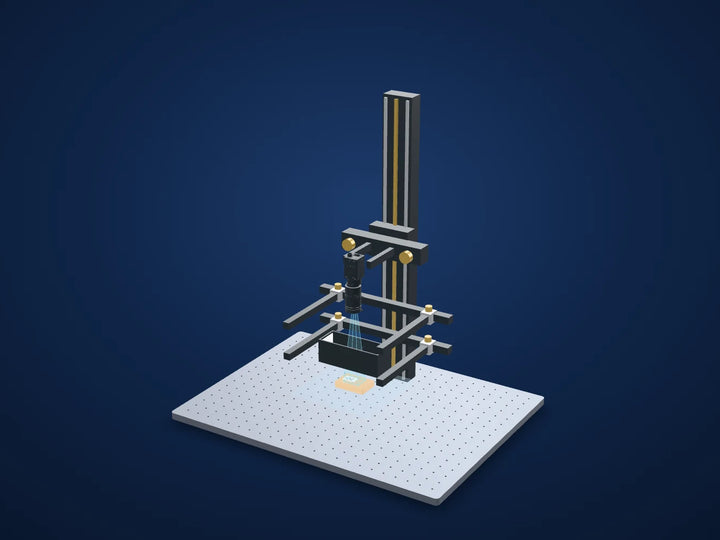

Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-CXL-0182, the same type of part
Packaging, labels and print
Colour appearance on a bottle cap
Control the colour recipe before turning a lighter patch into a reject decision.Light in sourceLS-CXL-0182 · whiteExplore the study
Set up with the LS-CXL-0124, the same type of part
Electronics and devices
Buzzer polarity mark
Find the round outline first, then use the mark for rotation.Light in sourceLS-CXL-0124 · blueExplore the study
Other models in the Coaxial lights (LS-CXL-S34) series
See all 14 models- Highest power of the 14 models in its series: 12.6 W
- Largest wavelength of the 9 models that list it (14 in its series): 850 nm
| Model | Emitting area | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-CXL-0233This model | 70 mm × 70 mm | 99 mm × 77.7 mm × 76 mm | 12.6 W | $309.00 | Ships in 2-3 weeks | |
| LS-CXL-0223 | 32.5 mm × 32 mm | 69 mm × 37.9 mm × 38 mm | 3.3 W | $159.00 | Ships in 2-3 weeks | View |
| LS-CXL-0221 | 32.5 mm × 32 mm | 69 mm × 37.9 mm × 38 mm | 3.6 W | $159.00 | Ships in 2-3 weeks | View |
| LS-CXL-0222 | 32.5 mm × 32 mm | 69 mm × 37.9 mm × 38 mm | 2.2 W | $159.00 | Ships in 2-3 weeks | View |
| LS-CXL-0226 | 40 mm × 40 mm | 69 mm × 45.7 mm × 46 mm | 5.4 W | $179.00 | Ships in 2-3 weeks | View |
| LS-CXL-0224 | 40 mm × 40 mm | 69 mm × 45.7 mm × 46 mm | 5.9 W | $179.00 | Ships in 2-3 weeks | View |
| LS-CXL-0225 | 40 mm × 40 mm | 69 mm × 45.7 mm × 46 mm | 4.1 W | $179.00 | Ships in 2-3 weeks | View |
| LS-CXL-0229 | 50 mm × 50 mm | 79 mm × 59.7 mm × 56 mm | 5.5 W | $219.00 | Ships in 2-3 weeks | View |
| LS-CXL-0227 | 50 mm × 50 mm | 79 mm × 59.7 mm × 56 mm | 7 W | $219.00 | Ships in 2-3 weeks | View |
| LS-CXL-0228 | 50 mm × 50 mm | 79 mm × 59.7 mm × 56 mm | 4.7 W | $219.00 | Ships in 2-3 weeks | View |
| LS-CXL-0232 | 60 mm × 60 mm | 89 mm × 67.3 mm × 66 mm | 9.6 W | $269.00 | Ships in 2-3 weeks | View |
| LS-CXL-0230 | 60 mm × 60 mm | 89 mm × 67.3 mm × 66 mm | 8.7 W | $269.00 | Ships in 2-3 weeks | View |
| LS-CXL-0231 | 60 mm × 60 mm | 89 mm × 67.3 mm × 66 mm | 6.7 W | $269.00 | Ships in 2-3 weeks | View |
| LS-CXL-0234 | 70 mm × 70 mm | 99 mm × 77.7 mm × 76 mm | 10.8 W | $309.00 | Ships in 2-3 weeks | View |
