Coaxial lights

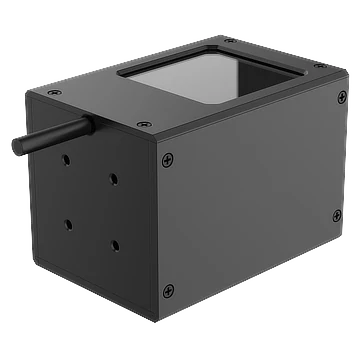

Coaxial Light, 30 x 30 mm, Blue (LS-CXL-0221)
Model LS-CXL-0221
- ColourBlue
- Emitting area32.5 mm × 32 mm
- Size69 mm × 37.9 mm × 38 mm
- Power3.6 W
- Wavelength465 nm
$159.00
Ships in 2-3 weeks
0.28 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Coaxial Light, 30 x 30 mm, Blue. Features special beam splitter design and improved light efficiency. Features efficient heat dissipation and extended service life.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CXL-0221 |
|---|---|
| Safety class | RG1 |
| Safety distance | 0.35 m |
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 1 m |
Light
| Color | Blue |
|---|---|
| Center illuminance/irradiance | ≥ 5000 lux |
| Wavelength | 465 nm |
| Emitting area dimension | 32.5 mm × 32 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 90% RH (no condensation) |
Electrical
| Power | 3.6 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical
| Dimension | 69 mm × 37.9 mm × 38 mm |
|---|---|
| Weight | 132 g |
| Shipping weight (estimated) | 0.28 kg |
Other models in the Coaxial lights (LS-CXL-S34) series
See all 14 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CXL-0223 | 30 x 30 mm, White | $159.00 | Ships in 2-3 weeks | View |
| LS-CXL-0222 | 30 x 30 mm, Red | $159.00 | Ships in 2-3 weeks | View |
| LS-CXL-0226 | 40 x 40 mm, White | $179.00 | Ships in 2-3 weeks | View |
| LS-CXL-0224 | 40 x 40 mm, Blue | $179.00 | Ships in 2-3 weeks | View |
| LS-CXL-0225 | 40 x 40 mm, Red | $179.00 | Ships in 2-3 weeks | View |
| LS-CXL-0229 | 50 x 50 mm, White | $219.00 | Ships in 2-3 weeks | View |
| LS-CXL-0227 | 50 x 50 mm, Blue | $219.00 | Ships in 2-3 weeks | View |
| LS-CXL-0228 | 50 x 50 mm, Red | $219.00 | Ships in 2-3 weeks | View |
| LS-CXL-0232 | 60 x 60 mm, White | $269.00 | Ships in 2-3 weeks | View |
| LS-CXL-0230 | 60 x 60 mm, Blue | $269.00 | Ships in 2-3 weeks | View |
| LS-CXL-0231 | 60 x 60 mm, Red | $269.00 | Ships in 2-3 weeks | View |
| LS-CXL-0234 | 70 x 70 mm, White | $309.00 | Ships in 2-3 weeks | View |
| LS-CXL-0233 | 70 x 70 mm, IR 850 nm | $309.00 | Ships in 2-3 weeks | View |
