Coaxial lights

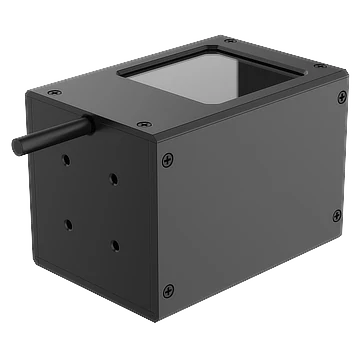

Coaxial Light, 60 x 60 mm, Red (LS-CXL-0231)
Model LS-CXL-0231
- ColourRed
- Emitting area60 mm × 60 mm
- Size89 mm × 67.3 mm × 66 mm
- Power6.7 W
- Wavelength625 nm
$269.00
Ships in 2-3 weeks
0.55 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Coaxial Light, 60 x 60 mm, Red. Features special beam splitter design and improved light efficiency. Features efficient heat dissipation and extended service life.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CXL-0231 |
|---|---|
| Safety class | No danger |
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 1 m |
Light
| Color | Red |
|---|---|
| Center illuminance/irradiance | ≥ 16000 lux |
| Wavelength | 625 nm |
| Emitting area dimension | 60 mm × 60 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 90% RH (no condensation) |
Electrical
| Power | 6.7 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical
| Dimension | 89 mm × 67.3 mm × 66 mm |
|---|---|
| Weight | 320 g |
| Shipping weight (estimated) | 0.55 kg |
