Light controllers
4-channel 24 V digital LED light controller, 150 W, Ethernet (LS-CTL-0481)
Model LS-CTL-0481
- Channels4
- Output24 V
- ControlDigital
- Control interface24 V 150 W 4-Channel SMP-03 V Ethernet
Ships in 3-4 weeks
2.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-CTL-0481: channels 4, output voltage 24 V, output power 150 W, control interface 24 V 150 W 4-Channel SMP-03 V Ethernet.
Digital LED light controller for powering, dimming and strobing LED lights. 4 output channel(s).
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0481 |
|---|
Interfaces and I/O
| Control interface | 24 V 150 W 4-Channel SMP-03 V Ethernet |
|---|---|
| Connector | SMP-03 V /Ethernet |
| Communication distance | Typically up to 15 m Up to 100 m |
Electrical
| Output voltage | 24 V |
|---|---|
| Power | 150 W |
| Channels | 4 |
| Output power | 150 W |
Mechanical
| Shipping weight | 2.50 kg |
|---|
Engineering data
What the LS-CTL-0481 can drive
Worked out from the printed outputs: what one channel delivers and which lights it can run.
Mounting and installation
| Light output connector | SMP-03 V /Ethernet |
|---|
As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band; supply voltage and power per channel; the camera's printed connector for cables.
Lights this controller drives
Draws 13 W at 24 V of about 37.5 W per channel (from the rated output)

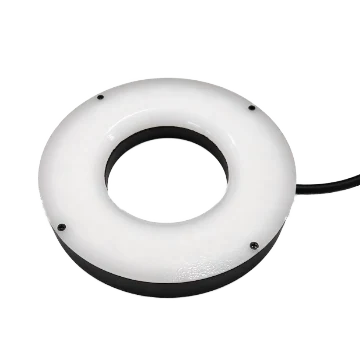

Ring light, 120 mm dia., 45°, Red
LS-RNG-0431
- Colour Red
- Emitting area Φ107 mm
$319.00
Ships in 2-3 weeks
Draws 16.8 W at 24 V of about 37.5 W per channel (from the rated output)

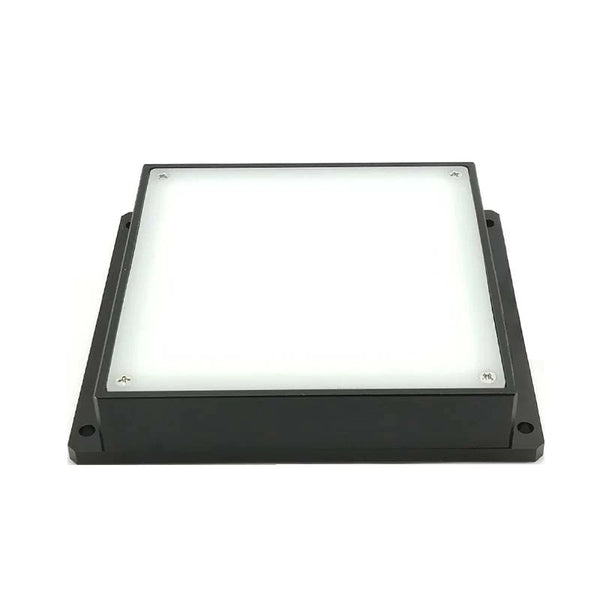

200 x 200 mm Back light
LS-BKL-1150
- Colour White, Green, Blue, Red
- Emitting area 200 x 200 mm
$549.00
Ships in 2-3 weeks
Draws 24 W at 24 V of about 37.5 W per channel (from the rated output)

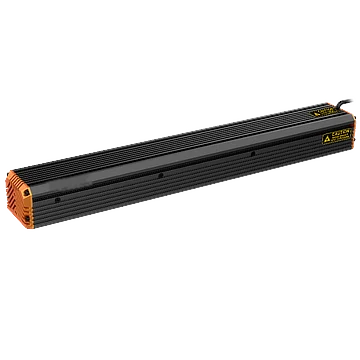

Bar light, 648 x 30 mm, Red
LS-BAR-1193
- Colour Red
- Emitting area 636 mm × 21.6 mm
$669.00
Ships in 2-3 weeks
Draws 27.8 W at 24 V of about 37.5 W per channel (from the rated output)

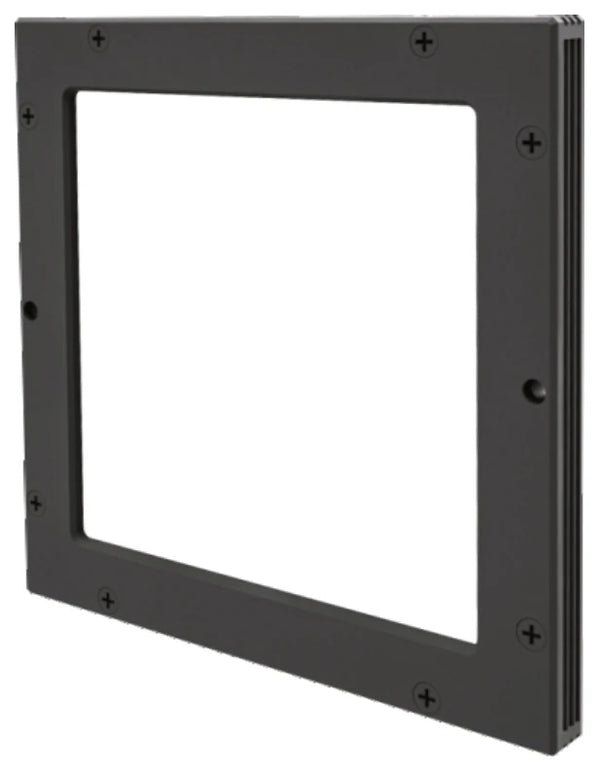

200 x 200 mm Flat coaxial light
LS-CXL-0185
- Colour Red, Green, Blue, White
- Wavelength red 620-630 nm
$1,209.00
Ships in 2-3 weeks
Draws 22 W at 24 V of about 37.5 W per channel (from the rated output)

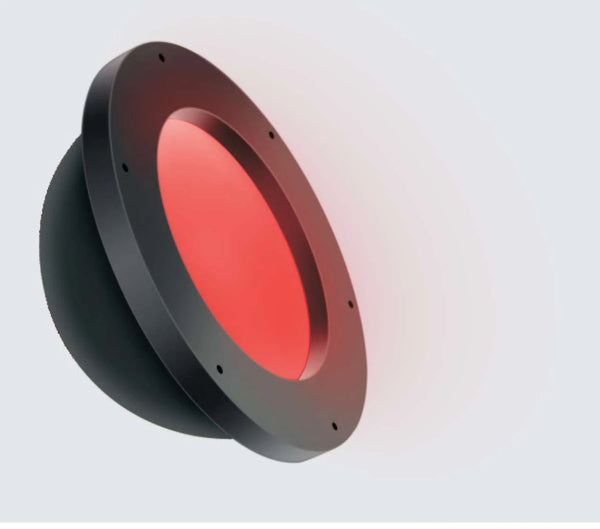

116 mm Dome light
LS-DOM-0099
- Colour Red, Green, Blue, White
- Cable length 500 mm
$439.00
Ships in 2-3 weeks
Draws 18 W at 24 V of about 37.5 W per channel (from the rated output)
Other models in the Digital LED light controller (LS-CTL-S95) series
See all 16 models| Model | Channels | Output | Control interface | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-CTL-0481This model | 4 | 24 V | 24 V 150 W 4-Channel SMP-03 V Ethernet | $290.00 | Ships in 3-4 weeks | |
| LS-CTL-0471 | 2 | 5 V | $120.00 | Ships in 3-4 weeks | View | |
| LS-CTL-0476 | 2 | 24 V | $165.00 | Ships in 3-4 weeks | View | |
| LS-CTL-0477 | 2 | 24 V | 24 V 20 W 2-Channel SMP-03 V Ethernet | $195.00 | Ships in 3-4 weeks | View |
| LS-CTL-0480 | 4 | 24 V | $250.00 | Ships in 3-4 weeks | View | |
| LS-CTL-0474 | 2 | 5 V | $250.00 | Ships in 3-4 weeks | View | |
| LS-CTL-0472 | 2 | 5 V | 5 V 6 W 2-Channel SMP-03 V Ethernet | $250.00 | Ships in 3-4 weeks | View |
| LS-CTL-0484 | 2 | 24 V | $385.00 | Ships in 3-4 weeks | View | |
| LS-CTL-0487 | 2 | 24 V | $385.00 | Ships in 3-4 weeks | View | |
| LS-CTL-0485 | 2 | 24 V | $440.00 | Ships in 3-4 weeks | View | |
| LS-CTL-0488 | 2 | 24 V | $440.00 | Ships in 3-4 weeks | View | |
| LS-CTL-0489 | 2 | 24 V | $495.00 | Ships in 3-4 weeks | View | |
| LS-CTL-0491 | 2 | 24 V | $530.00 | Ships in 3-4 weeks | View | |
| LS-CTL-0490 | 2 | 24 V | $550.00 | Ships in 3-4 weeks | View | |
| LS-CTL-0492 | 1 | 48 V | $660.00 | Ships in 3-4 weeks | View | |
| LS-CTL-0493 | 1 | 48 V | $715.00 | Ships in 3-4 weeks | View |
