Home / Lighting / Backlights / Backlight series, 24 mm high, Flying Leads
Backlight, 212.6 x 212.6 mm lit area, 850nm Infrared, no driver needed, strobe trigger input Constant On Only (LS-BKL-0461)

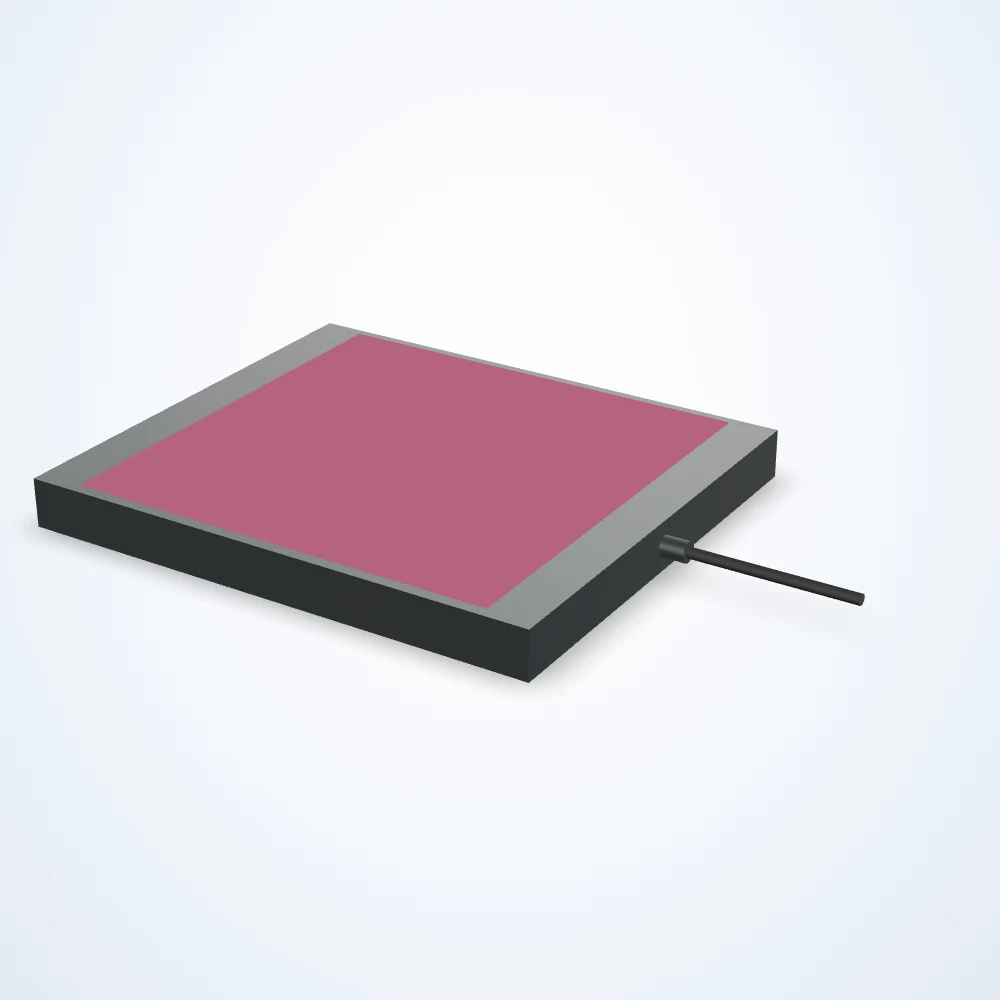

Rendered illustration: the actual product may differ in appearance.

Backlights

Backlight, 212.6 x 212.6 mm lit area, 850nm Infrared, no driver needed, strobe trigger input Constant On Only (LS-BKL-0461)

Model LS-BKL-0461

LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 212.6 x 212.6 mm; 24 VDC supply; connection: flying leads.

Price on request
Built to order: ships in about 4-5 weeks

Build a system with this light → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-BKL-0461

Specifications

ModelLS-BKL-0461
Colour850nm Infrared
Lit length (mm)212.6
Lit width (mm)212.6
Length (mm)258.6
Width (mm)223.8
Height (mm)24
Voltage24 VDC
ConnectorFlying Leads
Connection at lightHardwired
Cable length (mm)2000
Driver includedNo Driver Required
Driver locationNo Driver
Operating modesConstant On
Strobe trigger inputConstant On Only
Operating temperatureup to 60 °C
IP ratingIP69K
HousingAluminum
MountingTapped Holes
CollimatedNot Collimated
Daisy chainNo
DiffusedNot Diffused
Direct connectNo
Maximum constant on current (ma)1345
Maximum duty cycle (%)100
Maximum input power constant on (w)32.3
PolarizedNot Polarized
Wavelength850nm Infrared
ComplianceCE
