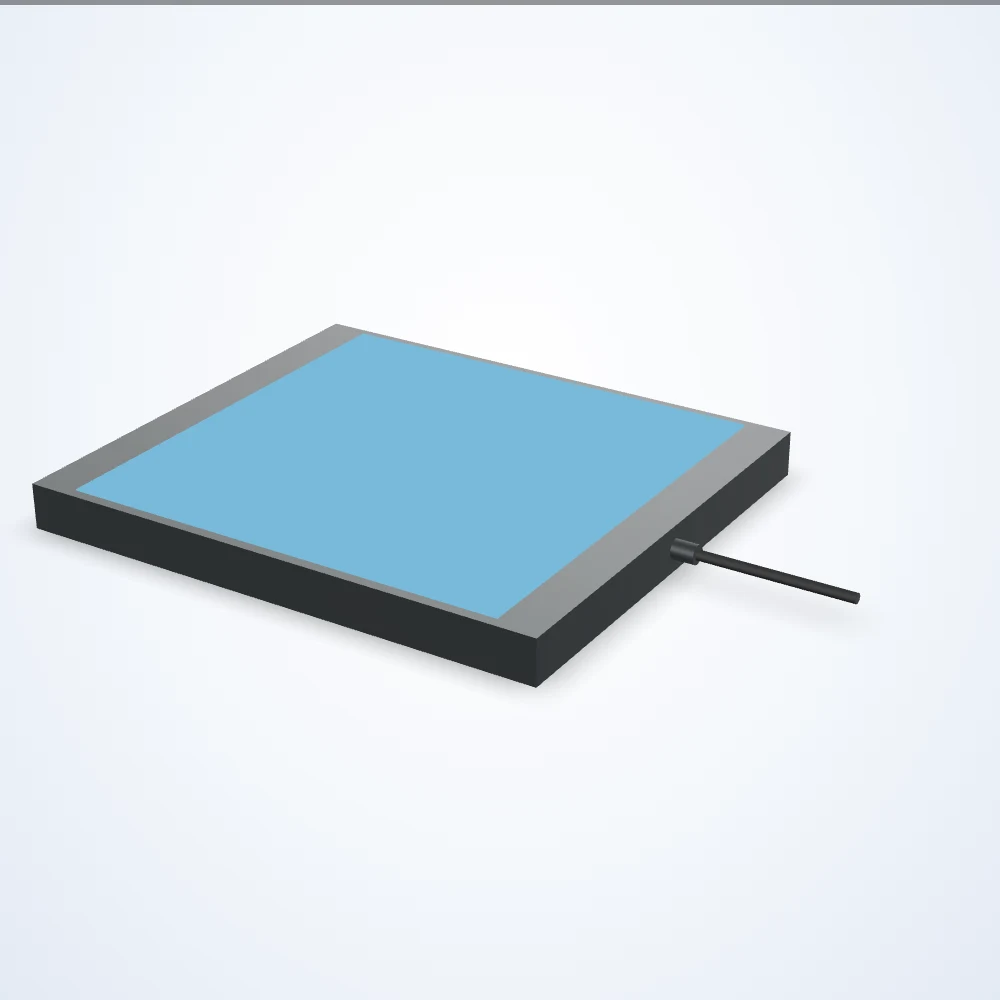

Rendered illustration: the actual product may differ in appearance.
Backlights
283.97 x 249.17 mm backlight (LS-BKL-0469)
Model LS-BKL-0469
283.97 x 249.17 mm backlight. Colour: 470nm Blue. Lit area 238 x 238 mm. Connection: Flying Leads.
Specifications
| Model | LS-BKL-0469 |
|---|---|
| Active Length (mm) | 238 |
| Active Width (mm) | 238 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Color | 470nm Blue |
| Compliances | CE |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | In Line |
| Driver Nomenclature | iCS2 - IC |
| Height (mm) | 24 |
| Housing Material | Aluminum |
| IP Rating | IP69K |
| Intensity Adjustment Type | Analog Voltage |
| Length (mm) | 283.97 |
| Maximum Constant On Current (mA) | 3290 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 79 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | Tapped Holes |
| Operation Modes | Constant On |
| Polarized | Not Polarized |
| Product Weight (Kg) | 1.41 |
| Product Weight (Lbs) | 3.11 |
| Strobe Trigger Input | Constant On Only |
| Voltage | 24 VDC |
| Width (mm) | 249.17 |
