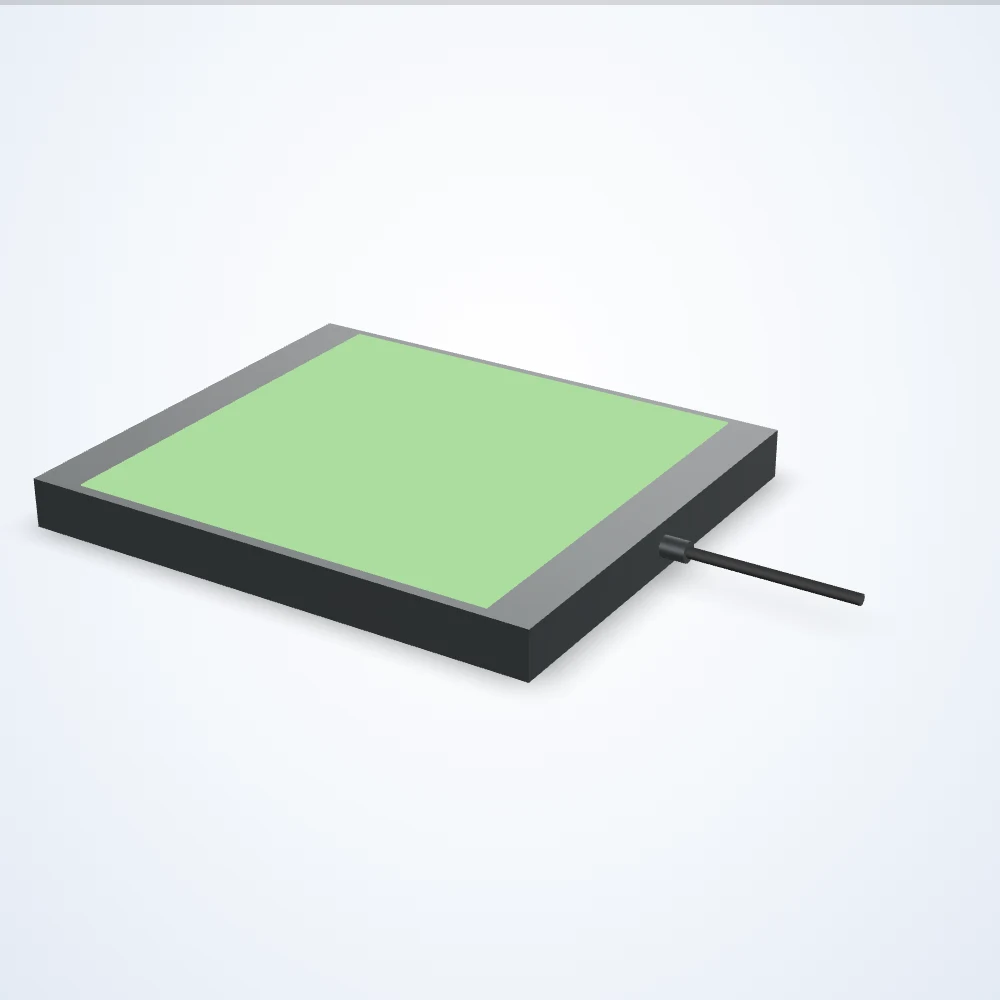

Rendered illustration: the actual product may differ in appearance.
Backlights
258.57 x 223.77 mm backlight (LS-BKL-0455)
Model LS-BKL-0455
258.57 x 223.77 mm backlight. Colour: 530nm Green. Lit area 212.6 x 212.6 mm. Connection: Flying Leads.
Specifications
| Model | LS-BKL-0455 |
|---|---|
| Active Length (mm) | 212.6 |
| Active Width (mm) | 212.6 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Color | 530nm Green |
| Compliances | CE |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | No Driver Required |
| Driver Location | No Driver |
| Driver Nomenclature | 24V |
| Height (mm) | 24 |
| Housing Material | Aluminum |
| IP Rating | IP69K |
| Length (mm) | 258.57 |
| Maximum Constant On Current (mA) | 1345 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 32.3 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | Tapped Holes |
| Operation Modes | Constant On |
| Polarized | Not Polarized |
| Product Weight (Kg) | 1.14 |
| Product Weight (Lbs) | 2.52 |
| Strobe Trigger Input | Constant On Only |
| Voltage | 24 VDC |
| Width (mm) | 223.77 |
