Hikrobot MV-CH120-10GM(EoL) 12 MP Area Scan Camera, GigE, IMX304, Mono
MV-CH120-10GM(EoL)
- Resolution 4096 × 3000
- Sensor CMOS, global shutter
- Speed 9.4 fps @ 4096 × 3000
$1,959.00
Not available in the United States
Shop by part
Cameras
Industrial cameras, smart cameras, code readers and 3D sensors. Filter by interface, resolution, sensor format, shutter and lens mount, then build the rest of the system around the camera you pick.
Choose a category
-
Area scan camerasGigE, USB3, 10GigE and CoaXPress1287 models
-
Line scan cameras2K-16K for web and moving parts170 models
-
Smart cameras & vision sensorsInspection on the device, no PC350 models
-
Fixed code readers1D/2D codes on the line658 models
-
3D sensorsLaser profilers and stereo 3D cameras170 models
-
Board-level camerasCompact cameras to build in120 models
-
Infrared camerasThermal imaging cameras58 models
-
Hyperspectral camerasHundreds of spectral bands for sorting and material analysis17 models
-
Handheld code readersHandheld 1D/2D scanners137 models
Products
Hikrobot MV-CH089-10GC 8.9 MP Area Scan Camera, GigE, IMX267, Color, V4
MV-CH089-10GC
- Resolution 4096 × 2160
- Sensor CMOS, global shutter
- Speed 13.7 fps @ 4096 × 2160 Bayer RG 8
$1,719.00
Not available in the United States
Hikrobot MV-CH089-10GM 8.9 MP Area Scan Camera, GigE, IMX267, Mono, V4
MV-CH089-10GM
- Resolution 4096 × 2160
- Sensor CMOS, global shutter
- Speed 13.7 fps @ 4096 × 2160 Mono 8
$1,719.00
Not available in the United States
Hikrobot MV-CH050-90XC-C-NN 5 MP Area Scan Camera, GMAX2505, CXP-6, Color, C-mount, without fan
MV-CH050-90XC-C-NN
- Resolution 2592 × 2160
- Sensor CMOS, global shutter
- Interface CoaXPress with DIN interface
$7,859.00
Not available in the United States
Hikrobot MV-CH050-90XM-C-NN 5 MP Area Scan Camera, GMAX2505, CXP-6, Mono, C-mount, without fan
MV-CH050-90XM-C-NN
- Resolution 2592 × 2160
- Sensor CMOS, global shutter
- Interface CoaXPress with DIN interface
$7,859.00
Not available in the United States

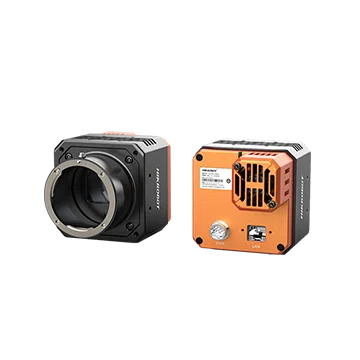

Hikrobot MV-CH650-90TC-M58S-NF 65 MP Area Scan Camera, 10GigE, GMAX3265, Color, M58-mount, with fan
MV-CH650-90TC-M58S-NF
- Resolution 9344 × 7000
- Sensor CMOS, global shutter
- Speed 17.2 fps @ 9344 × 7000 Bayer BG 8
$11,789.00
Not available in the United States
Hikrobot MV-CH650-90TM-M58S-NF 65 MP Area Scan Camera, 10GigE, GMAX3265, Mono, M58-mount, with fan
MV-CH650-90TM-M58S-NF
- Resolution 9344 × 7000
- Sensor CMOS, global shutter
- Speed 17.2 fps @ 9344 × 7000 Mono 8
$11,789.00
Not available in the United States
Hikrobot MV-CH650-90TC-F-NF 65 MP Area Scan Camera, 10GigE, GMAX3265, Color, F-mount, with fan
MV-CH650-90TC-F-NF
- Resolution 9344 × 7000
- Sensor CMOS, global shutter
- Speed 17.2 fps @ 9344 × 7000 Bayer BG 8
$11,609.00
Not available in the United States
Hikrobot MV-CH650-90TM-F-NF 65 MP Area Scan Camera, 10GigE, GMAX3265, Mono, F-mount, with fan
MV-CH650-90TM-F-NF
- Resolution 9344 × 7000
- Sensor CMOS, global shutter
- Speed 17.2 fps @ 9344 × 7000 Mono 8
$11,609.00
Not available in the United States
Hikrobot MV-CH500-90TC-M58S-NF 50 MP Area Scan Camera, 10GigE, GMAX, Color, M58-mount, with fan
MV-CH500-90TC-M58S-NF
- Resolution 7008 × 7000
- Sensor CMOS, global shutter
- Speed 15.5 fps @ 7008 × 7000 Bayer BG 8
$10,059.00
Not available in the United States
Hikrobot MV-CH500-90TM-M58S-NF 50 MP Area Scan Camera, 10GigE, GMAX, Mono, M58-mount, with fan
MV-CH500-90TM-M58S-NF
- Resolution 7008 × 7000
- Sensor CMOS, global shutter
- Speed 15.5 fps @ 7008 × 7000 Mono 8
$10,059.00
Not available in the United States
Hikrobot MV-CH500-90TM-F-NF 50 MP Area Scan Camera, 10GigE, GMAX, Mono, F-mount, with fan
MV-CH500-90TM-F-NF
- Resolution 7008 × 7000
- Sensor CMOS, global shutter
- Speed 15.5 fps @ 7008 × 7000 Mono 8
$10,059.00
Not available in the United States
Hikrobot MV-CH250-60TM-M58S-NF 25 MP Area Scan Camera, 10GigE, Mono, M58-mount, with fan
MV-CH250-60TM-M58S-NF
- Resolution 5120 × 5120
- Sensor CMOS, global shutter
- Speed 31.7 fps @ 5120 × 5120 Mono 8
$7,349.00
Not available in the United States
Hikrobot MV-CE200-10UM 20 MP Area Scan Camera, USB3, IMX183, Mono
MV-CE200-10UM
- Resolution 5472 × 3648
- Sensor CMOS, rolling shutter
- Interface USB3.0, compatible with USB2.0
$749.00
Not available in the United States

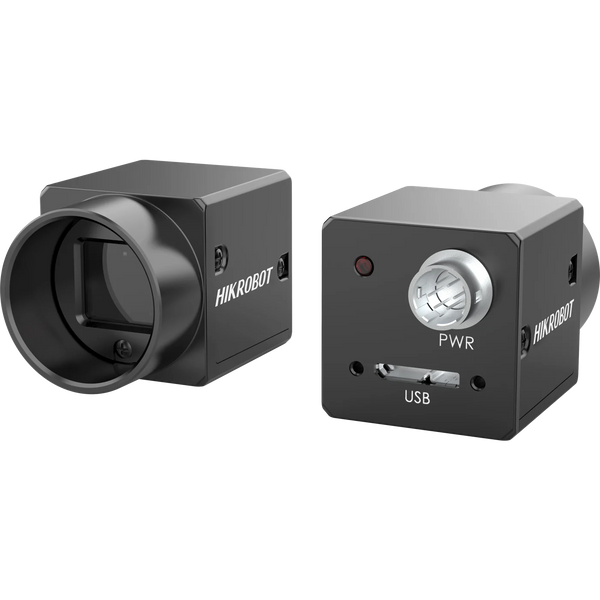

Hikrobot MV-CE120-10UC 12 MP Area Scan Camera, USB3, IMX226, Color
MV-CE120-10UC
- Resolution 4000 × 3036
- Sensor CMOS, rolling shutter
- Interface USB3.0, compatible with USB2.0
$499.00
Not available in the United States
Hikrobot MV-CE120-10UM 12 MP Area Scan Camera, USB3, IMX226, Mono
MV-CE120-10UM
- Resolution 4000 × 3036
- Sensor CMOS, rolling shutter
- Interface USB3.0, compatible with USB2.0
$499.00
Not available in the United States
Hikrobot MV-CE060-10UC 6 MP Area Scan Camera, USB3, IMX178, Color
MV-CE060-10UC
- Resolution 3072 × 2048
- Sensor CMOS, rolling shutter
- Interface USB3.0, compatible with USB2.0
$359.00
Not available in the United States
Hikrobot MV-CE060-10UM 6 MP Area Scan Camera, USB3, IMX178, Mono
MV-CE060-10UM
- Resolution 3072 × 2048
- Sensor CMOS, rolling shutter
- Interface USB3.0, compatible with USB2.0
$359.00
Not available in the United States
Hikrobot MV-CE050-30UC 5 MP Area Scan Camera, USB3, AR0521, Color
MV-CE050-30UC
- Resolution 2592 × 1944
- Sensor CMOS, rolling shutter
- Interface USB3.0, compatible with USB2.0
$269.00
Not available in the United States
Hikrobot MV-CE013-80UM 1.3 MP Area Scan Camera, USB3, SS
MV-CE013-80UM
- Resolution 1280 × 1024
- Sensor CMOS, global shutter
- Interface USB3.0, compatible with USB2.0
$209.00
Not available in the United States
Hikrobot MV-CE200-10GM 20 MP Area Scan Camera, GigE, IMX183, Mono
MV-CE200-10GM
- Resolution 5472 × 3648
- Sensor CMOS, rolling shutter
- Speed 5.9 fps @ 5472 × 3648
$939.00
Not available in the United States
Hikrobot MV-CE120-10GC 12 MP Area Scan Camera, GigE, IMX226, Color
MV-CE120-10GC
- Resolution 4024 × 3036
- Sensor CMOS, rolling shutter
- Speed 9.6 fps @ 4024 × 3036
$739.00
Not available in the United States
Hikrobot MV-CE120-10GM 12 MP Area Scan Camera, GigE, IMX226, Mono
MV-CE120-10GM
- Resolution 4024 × 3036
- Sensor CMOS, rolling shutter
- Speed 9.6 fps @ 4024 × 3036
$739.00
Not available in the United States
Hikrobot MV-CE100-30GC 10 MP Area Scan Camera, GigE, IMT9J003, Color
MV-CE100-30GC
- Resolution 3840 × 2748
- Sensor CMOS, rolling shutter
- Speed 7 fps @ 3840 × 2748
$689.00
Not available in the United States
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 MV-CH120-10GM(EoL)Hikrobot MV-CH120-10GM(EoL) 12 MP Area Scan Camera, GigE, IMX304, Mono
| 4096 × 3000 | CMOS, global shutter | 9.4 fps @ 4096 × 3000 | C-mount | Mono | 3.45 μm × 3.45 μm | $1,959.00 | Not available in the United States | |
 MV-CH089-10GCHikrobot MV-CH089-10GC 8.9 MP Area Scan Camera, GigE, IMX267, Color, V4
| 4096 × 2160 | CMOS, global shutter | 13.7 fps @ 4096 × 2160 Bayer RG 8 | C-mount | Color | 3.45 μm × 3.45 μm | $1,719.00 | Not available in the United States | |
|
MV-CH089-10GMHikrobot MV-CH089-10GM 8.9 MP Area Scan Camera, GigE, IMX267, Mono, V4
| 4096 × 2160 | CMOS, global shutter | 13.7 fps @ 4096 × 2160 Mono 8 | C-mount | Mono | 3.45 μm × 3.45 μm | $1,719.00 | Not available in the United States | |
 MV-CH050-90XC-C-NNHikrobot MV-CH050-90XC-C-NN 5 MP Area Scan Camera, GMAX2505, CXP-6, Color, C-mount, without fan
| 2592 × 2160 | CMOS, global shutter | 213 fps @ 2592 × 2160 Bayer BG 8 | C-mount | Color | - | $7,859.00 | Not available in the United States | |
|
MV-CH050-90XM-C-NNHikrobot MV-CH050-90XM-C-NN 5 MP Area Scan Camera, GMAX2505, CXP-6, Mono, C-mount, without fan
| 2592 × 2160 | CMOS, global shutter | 213 fps @ 2592 × 2160 Mono 8 | C-mount | Mono | - | $7,859.00 | Not available in the United States | |
 MV-CH650-90TC-M58S-NFHikrobot MV-CH650-90TC-M58S-NF 65 MP Area Scan Camera, 10GigE, GMAX3265, Color, M58-mount, with fan
| 9344 × 7000 | CMOS, global shutter | 17.2 fps @ 9344 × 7000 Bayer BG 8 | M58 | Color | 3.2 μm × 3.2 μm | $11,789.00 | Not available in the United States | |
|
MV-CH650-90TM-M58S-NFHikrobot MV-CH650-90TM-M58S-NF 65 MP Area Scan Camera, 10GigE, GMAX3265, Mono, M58-mount, with fan
| 9344 × 7000 | CMOS, global shutter | 17.2 fps @ 9344 × 7000 Mono 8 | M58 | Mono | 3.2 μm × 3.2 μm | $11,789.00 | Not available in the United States | |
|
MV-CH650-90TC-F-NFHikrobot MV-CH650-90TC-F-NF 65 MP Area Scan Camera, 10GigE, GMAX3265, Color, F-mount, with fan
| 9344 × 7000 | CMOS, global shutter | 17.2 fps @ 9344 × 7000 Bayer BG 8 | F-mount | Color | 3.2 μm × 3.2 μm | $11,609.00 | Not available in the United States | |
|
MV-CH650-90TM-F-NFHikrobot MV-CH650-90TM-F-NF 65 MP Area Scan Camera, 10GigE, GMAX3265, Mono, F-mount, with fan
| 9344 × 7000 | CMOS, global shutter | 17.2 fps @ 9344 × 7000 Mono 8 | F-mount | Mono | 3.2 μm × 3.2 μm | $11,609.00 | Not available in the United States | |
 MV-CH500-90TC-M58S-NFHikrobot MV-CH500-90TC-M58S-NF 50 MP Area Scan Camera, 10GigE, GMAX, Color, M58-mount, with fan
| 7008 × 7000 | CMOS, global shutter | 15.5 fps @ 7008 × 7000 Bayer BG 8 | M58 | Color | 3.2 μm × 3.2 μm | $10,059.00 | Not available in the United States | |
|
MV-CH500-90TM-M58S-NFHikrobot MV-CH500-90TM-M58S-NF 50 MP Area Scan Camera, 10GigE, GMAX, Mono, M58-mount, with fan
| 7008 × 7000 | CMOS, global shutter | 15.5 fps @ 7008 × 7000 Mono 8 | M58 | Mono | 3.2 μm × 3.2 μm | $10,059.00 | Not available in the United States | |
|
MV-CH500-90TM-F-NFHikrobot MV-CH500-90TM-F-NF 50 MP Area Scan Camera, 10GigE, GMAX, Mono, F-mount, with fan
| 7008 × 7000 | CMOS, global shutter | 15.5 fps @ 7008 × 7000 Mono 8 | F-mount | Mono | 3.2 μm × 3.2 μm | $10,059.00 | Not available in the United States | |
 MV-CH250-60TM-M58S-NFHikrobot MV-CH250-60TM-M58S-NF 25 MP Area Scan Camera, 10GigE, Mono, M58-mount, with fan
| 5120 × 5120 | CMOS, global shutter | 31.7 fps @ 5120 × 5120 Mono 8 | M58 | Mono | 4.5 μm × 4.5 μm | $7,349.00 | Not available in the United States | |
 MV-CE200-10UMHikrobot MV-CE200-10UM 20 MP Area Scan Camera, USB3, IMX183, Mono
| 5472 × 3648 | CMOS, rolling shutter | 19.2 fps @ 5472 × 3648 | C-mount | Mono | - | $749.00 | Not available in the United States | |
 MV-CE120-10UCHikrobot MV-CE120-10UC 12 MP Area Scan Camera, USB3, IMX226, Color
| 4000 × 3036 | CMOS, rolling shutter | 31.9 fps @ 4000 × 3036 | C-mount | Color | - | $499.00 | Not available in the United States | |
|
MV-CE120-10UMHikrobot MV-CE120-10UM 12 MP Area Scan Camera, USB3, IMX226, Mono
| 4000 × 3036 | CMOS, rolling shutter | 31.9 fps @ 4000 × 3036 | C-mount | Mono | - | $499.00 | Not available in the United States | |
 MV-CE060-10UCHikrobot MV-CE060-10UC 6 MP Area Scan Camera, USB3, IMX178, Color
| 3072 × 2048 | CMOS, rolling shutter | 42.7 fps @ 3072 × 2048 | C-mount | Color | - | $359.00 | Not available in the United States | |
|
MV-CE060-10UMHikrobot MV-CE060-10UM 6 MP Area Scan Camera, USB3, IMX178, Mono
| 3072 × 2048 | CMOS, rolling shutter | 42.7 fps @ 3072 × 2048 | C-mount | Mono | - | $359.00 | Not available in the United States | |
|
MV-CE050-30UCHikrobot MV-CE050-30UC 5 MP Area Scan Camera, USB3, AR0521, Color
| 2592 × 1944 | CMOS, rolling shutter | 44.7 fps @ 2592 × 1944 | C-mount | Color | - | $269.00 | Not available in the United States | |
|
MV-CE013-80UMHikrobot MV-CE013-80UM 1.3 MP Area Scan Camera, USB3, SS
| 1280 × 1024 | CMOS, global shutter | 148 fps @ 1280 × 1024 | C-mount | Mono | - | $209.00 | Not available in the United States | |
 MV-CE200-10GMHikrobot MV-CE200-10GM 20 MP Area Scan Camera, GigE, IMX183, Mono
| 5472 × 3648 | CMOS, rolling shutter | 5.9 fps @ 5472 × 3648 | C-mount | Mono | 2.4 μm × 2.4 μm | $939.00 | Not available in the United States | |
 MV-CE120-10GCHikrobot MV-CE120-10GC 12 MP Area Scan Camera, GigE, IMX226, Color
| 4024 × 3036 | CMOS, rolling shutter | 9.6 fps @ 4024 × 3036 | C-mount | Color | 1.85 μm × 1.85 μm | $739.00 | Not available in the United States | |
|
MV-CE120-10GMHikrobot MV-CE120-10GM 12 MP Area Scan Camera, GigE, IMX226, Mono
| 4024 × 3036 | CMOS, rolling shutter | 9.6 fps @ 4024 × 3036 | C-mount | Mono | 1.85 μm × 1.85 μm | $739.00 | Not available in the United States | |
|
MV-CE100-30GCHikrobot MV-CE100-30GC 10 MP Area Scan Camera, GigE, IMT9J003, Color
| 3840 × 2748 | CMOS, rolling shutter | 7 fps @ 3840 × 2748 | C-mount | Color | 1.67 μm × 1.67 μm | $689.00 | Not available in the United States |
