Object-side telecentric lenses

Select object-space telecentric optics

Browse lenses cataloged as object-side telecentric. Compare their measurement field, sensor format, magnification and working distance alongside the separate bi-telecentric range.

All Telecentric lenses

1540 models Configure a systemAll lenses
Object-side telecentric lenses

1297-1320 of 1540 models

Products

Compare
LS-TCL-215610x, WD 108 mm, 2/3", C-mount telecentric lens, length 231.6 mm 10xC-mount2/3"108±2 mmF48-$839.00 Ships in 2-3 weeks
LS-TCL-215510x, WD 108 mm, 2/3", C-mount telecentric lens, length 228.2 mm 10xC-mount2/3"108±2 mmF48-$839.00 Ships in 2-3 weeks

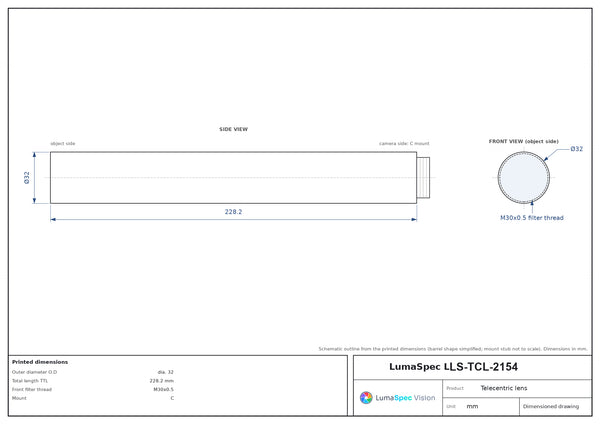

LS-TCL-215410x, WD 108 mm, 2/3", C-mount telecentric lens, 10.0x, length 228.2 mm 10.0xC-mount2/3"108±2 mmF48-$839.00 Ships in 2-3 weeks
LS-TCL-21070.5x, WD 65 mm, 2/3", C-mount telecentric lens, WD 65±1, DOF 1.6 mm 0.5xC-mount2/3"65±1 mmF5-$1,309.00 Ships in 2-3 weeks
LS-TCL-21060.5x, WD 65 mm, 2/3", C-mount telecentric lens, WD 65±1 0.5xC-mount2/3"65±1 mmF5-$1,309.00 Ships in 2-3 weeks
LS-TCL-21090.8x, WD 110 mm, 2/3", C-mount telecentric lens, WD 110±2, length 122.7 mm 0.8xC-mount2/3"110±2 mmF7.9-$1,199.00 Ships in 2-3 weeks
LS-TCL-21080.8x, WD 110 mm, 2/3", C-mount telecentric lens, WD 110±2, length 122.7 mm 0.8xC-mount2/3"110±2 mmF7.9-$1,199.00 Ships in 2-3 weeks
LS-TCL-20921x, WD 300 mm, 2/3", C-mount telecentric lens 1.0xC-mount2/3"300±3 mmF11No$1,239.00 Ships in 2-3 weeks

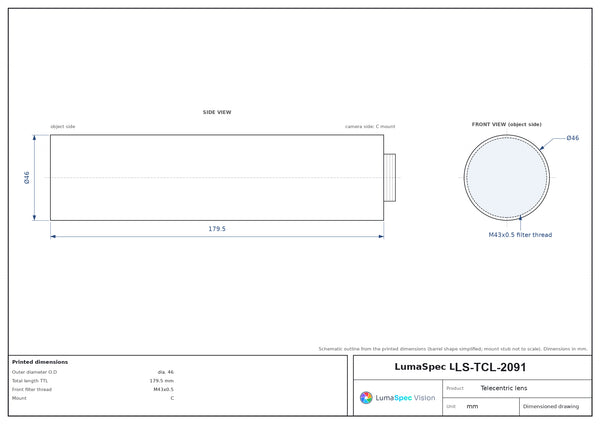

LS-TCL-20911x, WD 300 mm, 2/3", C-mount telecentric lens, coaxial port 1.0xC-mount2/3"300±3 mmF11Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-20901x, WD 110 mm, 2/3", C-mount telecentric lens, WD 110±2, length 133.3 mm 1.0xC-mount2/3"110±2 mmF7No$1,239.00 Ships in 2-3 weeks
LS-TCL-20891x, WD 110 mm, 2/3", C-mount telecentric lens, WD 110±2, length 133.3 mm, coaxial port 1.0xC-mount2/3"110±2 mmF7Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-21130.98x, WD 280 mm, 2/3", C-mount telecentric lens 0.98xC-mount2/3"280±3 mmF11No$1,219.00 Ships in 2-3 weeks

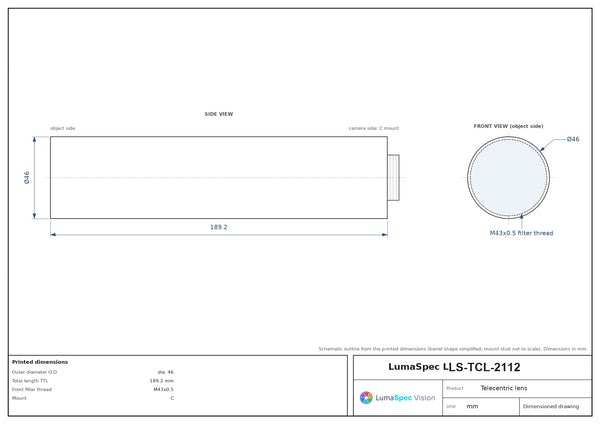

LS-TCL-21120.98x, WD 280 mm, 2/3", C-mount telecentric lens, coaxial port 0.98xC-mount2/3"280±3 mmF11Yes$1,219.00 Ships in 2-3 weeks
LS-TCL-21111.5x, WD 110 mm, 2/3", C-mount telecentric lens, WD 110±2, length 128.9 mm 1.5xC-mount2/3"110±2 mmF10No$1,239.00 Ships in 2-3 weeks
LS-TCL-21101.5x, WD 110 mm, 2/3", C-mount telecentric lens, WD 110±2, length 128.9 mm, coaxial port 1.5xC-mount2/3"110±2 mmF10Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-20942x, WD 65 mm, 2/3", C-mount telecentric lens, 2.0x, WD 65±1, length 88.2 mm 2.0xC-mount2/3"65±1 mmF13.2-$1,239.00 Ships in 2-3 weeks
LS-TCL-20932x, WD 65 mm, 2/3", C-mount telecentric lens, 2.0x, WD 65±1, length 92.5 mm 2.0xC-mount2/3"65±1 mmF13.2-$1,239.00 Ships in 2-3 weeks
LS-TCL-20992x, WD 300 mm, 2/3", C-mount telecentric lens, length 265.3 mm 2xC-mount2/3"300±3 mmF14.9-$1,239.00 Ships in 2-3 weeks

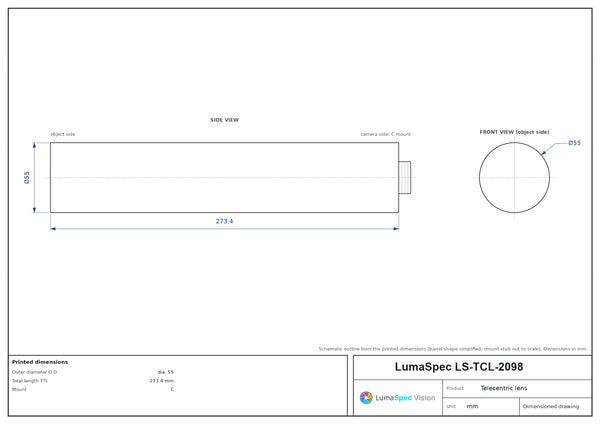

LS-TCL-20982x, WD 300 mm, 2/3", C-mount telecentric lens, length 273.4 mm 2xC-mount2/3"300±3 mmF14.9-$1,239.00 Ships in 2-3 weeks

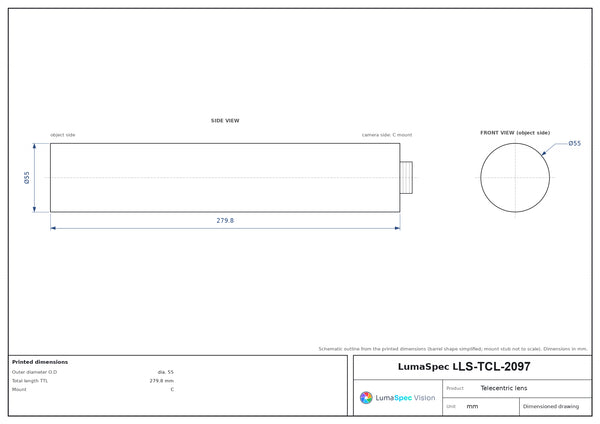

LS-TCL-20972x, WD 257 mm, 2/3", C-mount telecentric lens 2xC-mount2/3"257±3 mmF14.6-$1,239.00 Ships in 2-3 weeks
LS-TCL-20962x, WD 110 mm, 2/3", C-mount telecentric lens, WD 110±2, length 133.5 mm 2.0xC-mount2/3"110±2 mmF12.2No$1,239.00 Ships in 2-3 weeks

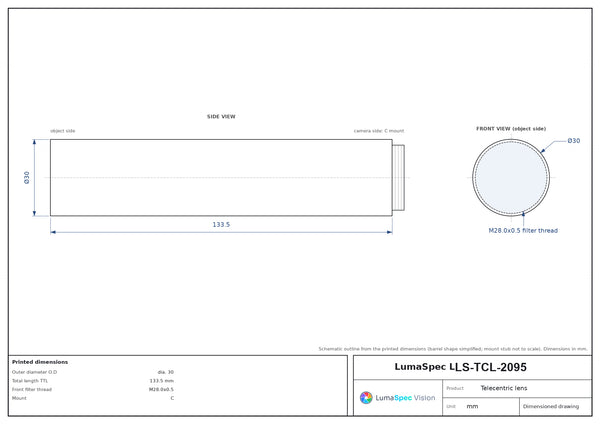

LS-TCL-20952x, WD 110 mm, 2/3", C-mount telecentric lens, WD 110±2, length 133.5 mm, coaxial port 2.0xC-mount2/3"110±2 mmF12.2Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-21054x, WD 110 mm, 2/3", C-mount telecentric lens, 4.0x, WD 110±2, length 124.8 mm 4.0xC-mount2/3"110±2 mmF20-$1,239.00 Ships in 2-3 weeks
LS-TCL-21044x, WD 110 mm, 2/3", C-mount telecentric lens, 4.0x, WD 110±2, length 129.1 mm 4.0xC-mount2/3"110±2 mmF20-$1,239.00 Ships in 2-3 weeks

Select object-space telecentric optics

Object-side telecentric optics control perspective on the object side. They are a distinct class from bi-telecentric designs. Choose a lens using the required object field and the model specifications, then verify the complete camera, illumination and mechanical arrangement for the inspection task.

  • Match the required field with sensor size and magnification, allowing room for part-position variation instead of framing the nominal part edge exactly.
  • Check the published working distance, depth of field, resolution and distortion at the intended aperture. Do not substitute a family description for the selected model data.
  • Compare object-side and bi-telecentric designs when sensor placement and measurement stability are critical, and verify the mount and body clearance before installation.

Configure a system · Browse all Telecentric lenses
