Object-side telecentric lenses

Select object-space telecentric optics

Browse lenses cataloged as object-side telecentric. Compare their measurement field, sensor format, magnification and working distance alongside the separate bi-telecentric range.

All Telecentric lenses

1540 models Configure a systemAll lenses
Object-side telecentric lenses

1249-1272 of 1540 models

Products

Compare
LS-TCL-21591.5x, WD 63 mm, 2/3", C-mount telecentric lens 1.5xC-mount2/3"63±1 mmF7.5No$1,239.00 Ships in 2-3 weeks
LS-TCL-21581.5x, WD 63 mm, 2/3", C-mount telecentric lens, coaxial port 1.5xC-mount2/3"63±1 mmF7.5Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-21571.5x, WD 63 mm, 2/3", C-mount telecentric lens, coaxial port, built-in light source 1.5xC-mount2/3"63±1 mmF7.5Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-21621.5x, WD 108 mm, 2/3", C-mount telecentric lens 1.5xC-mount2/3"108±2 mmF7.3-$1,239.00 Ships in 2-3 weeks
LS-TCL-21611.5x, WD 108 mm, 2/3", C-mount telecentric lens, coaxial port 1.5xC-mount2/3"108±2 mmF7.3-$1,239.00 Ships in 2-3 weeks
LS-TCL-21601.5x, WD 108 mm, 2/3", C-mount telecentric lens, coaxial port, built-in light source 1.5xC-mount2/3"108±2 mmF7.3-$1,239.00 Ships in 2-3 weeks
LS-TCL-21222x, WD 63 mm, 2/3", C-mount telecentric lens 2xC-mount2/3"63±1 mmF5.5No$1,239.00 Ships in 2-3 weeks

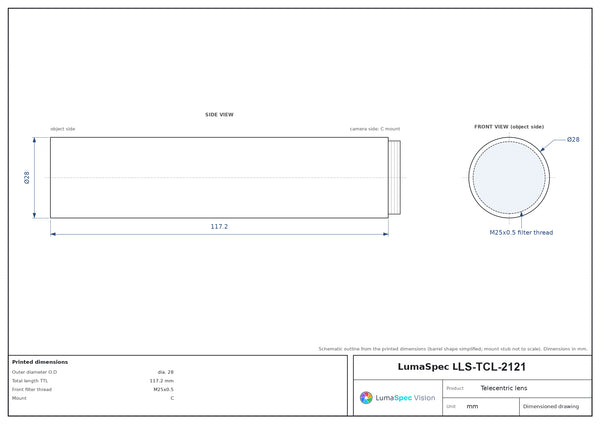

LS-TCL-21212x, WD 63 mm, 2/3", C-mount telecentric lens, coaxial port 2xC-mount2/3"63±1 mmF5.5Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-21202x, WD 63 mm, 2/3", C-mount telecentric lens, coaxial port, built-in light source 2xC-mount2/3"63±1 mmF5.5Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-21252x, WD 108 mm, 2/3", C-mount telecentric lens 2xC-mount2/3"108±2 mmF10.5No$1,239.00 Ships in 2-3 weeks
LS-TCL-21242x, WD 108 mm, 2/3", C-mount telecentric lens, coaxial port 2xC-mount2/3"108±2 mmF10.5Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-21232x, WD 108 mm, 2/3", C-mount telecentric lens, coaxial port, built-in light source 2xC-mount2/3"108±2 mmF10.5-$1,239.00 Ships in 2-3 weeks
LS-TCL-21652.5x, WD 63 mm, 2/3", C-mount telecentric lens, length 105.8 mm 2.5xC-mount2/3"63±1 mmF9.9-$1,239.00 Ships in 2-3 weeks
LS-TCL-21642.5x, WD 63 mm, 2/3", C-mount telecentric lens, length 110.6 mm 2.5xC-mount2/3"63±1 mmF9.9-$1,239.00 Ships in 2-3 weeks
LS-TCL-21632.5x, WD 63 mm, 2/3", C-mount telecentric lens, length 110.6 mm 2.5xC-mount2/3"63±1 mmF9.9-$1,239.00 Ships in 2-3 weeks
LS-TCL-21682.5x, WD 108 mm, 2/3", C-mount telecentric lens, length 110.8 mm 2.5xC-mount2/3"108±2 mmF12.5-$1,239.00 Ships in 2-3 weeks
LS-TCL-21672.5x, WD 108 mm, 2/3", C-mount telecentric lens, length 114.4 mm 2.5xC-mount2/3"108±2 mmF12.5-$1,239.00 Ships in 2-3 weeks
LS-TCL-21662.5x, WD 108 mm, 2/3", C-mount telecentric lens, length 114.4 mm 2.5xC-mount2/3"108±2 mmF12.5-$1,239.00 Ships in 2-3 weeks
LS-TCL-21385x, WD 108 mm, 2/3", C-mount telecentric lens 5xC-mount2/3"108±2 mmF22.4-$1,239.00 Ships in 2-3 weeks

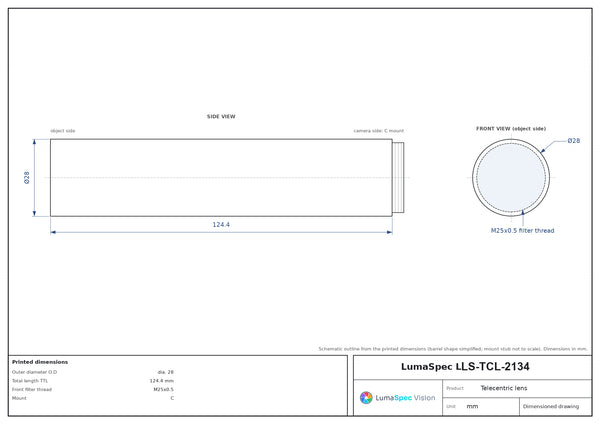

LS-TCL-21344x, WD 63 mm, 2/3", C-mount telecentric lens, length 124.4 mm 4xC-mount2/3"63±1 mmF15.8-$1,239.00 Ships in 2-3 weeks
LS-TCL-21334x, WD 63 mm, 2/3", C-mount telecentric lens, length 128.9 mm 4xC-mount2/3"63±1 mmF15.8Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-21324x, WD 63 mm, 2/3", C-mount telecentric lens, length 128.9 mm, built-in light source 4xC-mount2/3"63±1 mmF15.8Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-21374x, WD 108 mm, 2/3", C-mount telecentric lens, length 133.2 mm 4xC-mount2/3"108±2 mmF19.4-$1,239.00 Ships in 2-3 weeks
LS-TCL-21364x, WD 108 mm, 2/3", C-mount telecentric lens, length 135.4 mm 4xC-mount2/3"108±2 mmF19.4Yes$1,239.00 Ships in 2-3 weeks

Select object-space telecentric optics

Object-side telecentric optics control perspective on the object side. They are a distinct class from bi-telecentric designs. Choose a lens using the required object field and the model specifications, then verify the complete camera, illumination and mechanical arrangement for the inspection task.

  • Match the required field with sensor size and magnification, allowing room for part-position variation instead of framing the nominal part edge exactly.
  • Check the published working distance, depth of field, resolution and distortion at the intended aperture. Do not substitute a family description for the selected model data.
  • Compare object-side and bi-telecentric designs when sensor placement and measurement stability are critical, and verify the mount and body clearance before installation.

Configure a system · Browse all Telecentric lenses
